Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Solar Glass JY-S122
Contact Us
Solar Panels Glass 1.6mm 2mm 3.2mm 4mm Ultra Clear Patterned Glass
Joy Shing Glass supplies solar panel glass, with more favorable wholesale purchase prices. The solar panel glass uses ultra clear patterned glass as the substrate, which is processed by edge grinding, drilling, and tempering. It has the characteristics of high solar transmittance, high mechanical strength, good impact resistance, anti-aging and long service life. Our company has advanced equipment to ensure that the products have excellent processing accuracy, good production technology and deep processing management to ensure the excellent quality of the products, and achieve stable supply of front glass and back glass.
Specification
|
Name |
Solar Panels Glass |
| Glass Type | Ultra Clear Patterned Glass |
|
Thickness |
1.6mm, 2mm, 2.5mm, 3.2mm, 4mm |
|
Size |
2251*1128mm, 2272*1128mm, 2378*1297mm, customize size |
|
Glass Color |
Ultra Clear |
|
Solar energy transmittance(2mm) |
≥91.7%, without AR coating ≥94%, with AR coating |
|
Shape |
Flat |
|
Visible Light Reflectance |
7.30% |
|
Solar Reflectance |
7.40% |
|
Shading Coefficient |
1.04% |
| Processing | Edge grinding, drilling, cornering, coating, cutting, tempered, etc. |
|
Samples |
Free samples available |
|
Packaging Details |
1. Fumigation-free plywood wooden boxes |
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
| Delivery | Generally 15-20 days, depending on the order quantity |
Advantage of Solar Panels Glass
1. Excellent light transmittance: high sunlight transmittance and low reflectivity
2. High flatness and high efficiency: The embossed pattern design of the solar panel glass reduces the directional reflection of the glass, increases the internal reflection effect, and promotes its effective absorption of solar energy.
3. Safety: Ultra clear patterned glass has low iron content and has been tempered to have high mechanical strength and strong impact resistance.

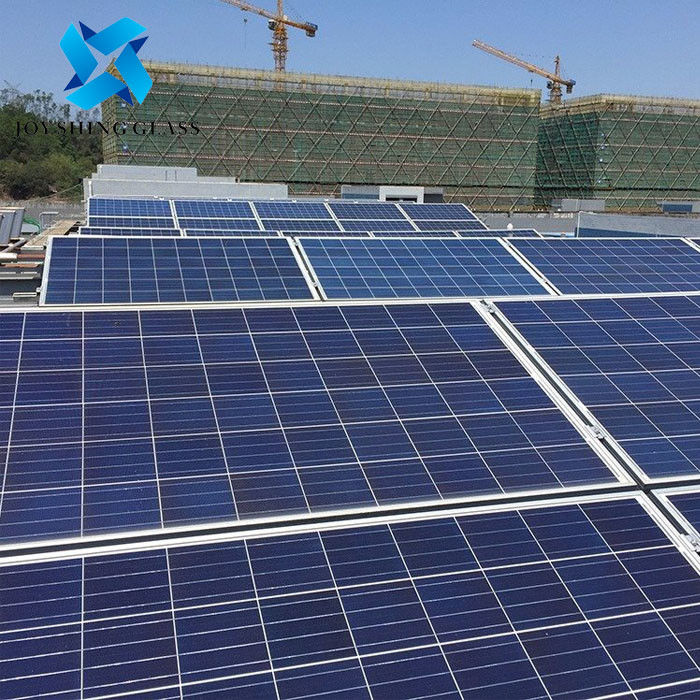

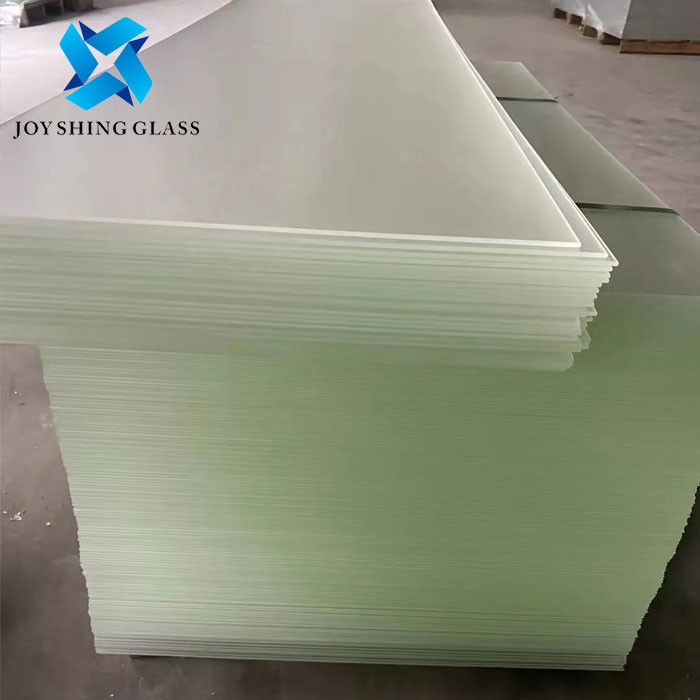

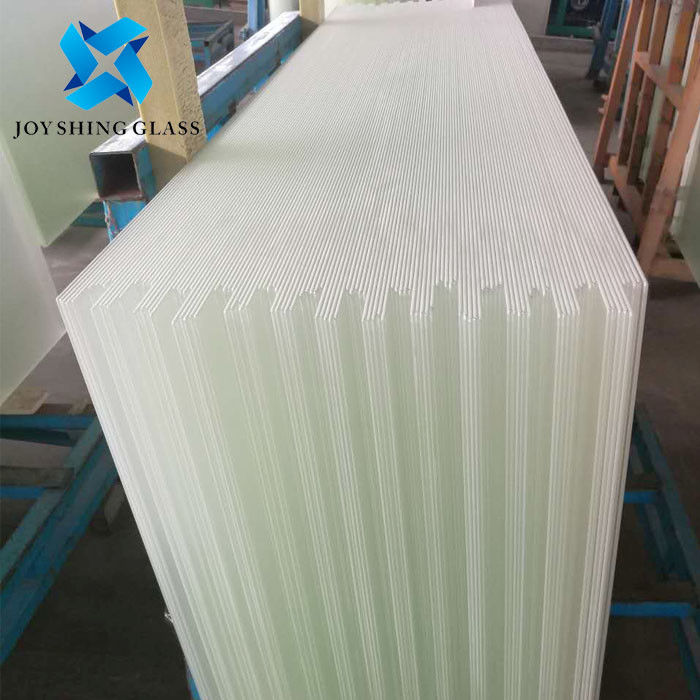

Product photo
Why Choose Us
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc.
