Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Solar Glass JY-S105
Contact Us

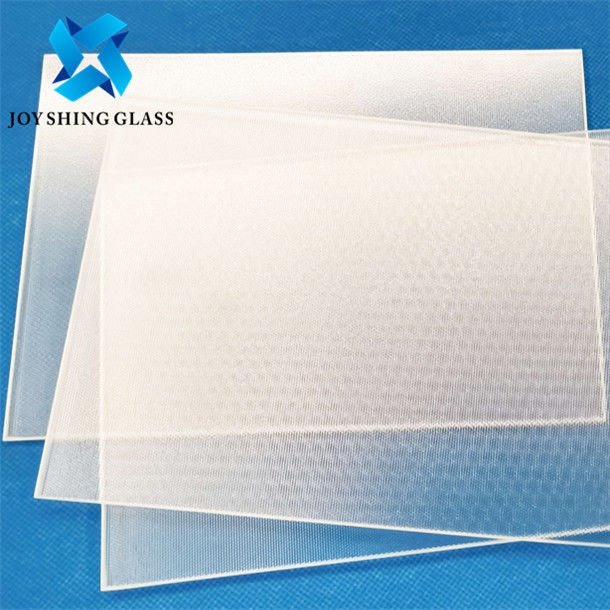

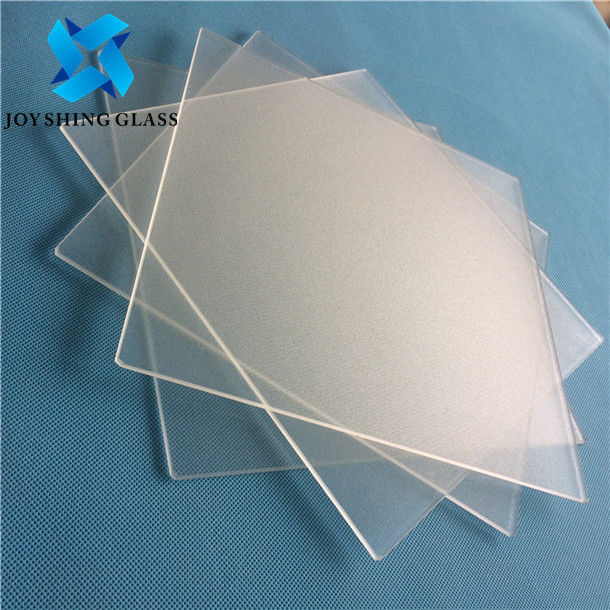

Toughened Low Iron Glass Ultra Clear Solar Glass OEM Acceptable
Joy Shing Glass manufacturer supplies Toughened Low Iron Glass, also known as ultra clear solar glass, photovoltaic glass, energy-saving glass, which has high light transmittance, strength and durability. Glass size and thickness can be produced according to the needs of different customers. Our company has rich industry experience and engineering cases, and can provide integrated solutions, online consultation, and perfect after-sales services for your projects.
Specification
| Product name | Toughened Low Iron Solar Glass |
| Model | JY-S105 |
| Thickness | 1.6mm,2mm, 2.5mm, 3.2mm and 4mm |
| Size | Min size 300*300mm, Max size 2378*1297mm, |
| Further Process | Cleaning, cutting, rough grinding, hole, printing etc. |
| Surface | Mistlite single pattern or flat or AR coated |
| Visible light Transmittance | 91.60% without AR coating,93.6% with AR coating |
| Visible light reflectance | 7.30% |
| Solar Transmittance | 93% |
| Solar reflectance | 7.40% |
| UV transmittance | 86.80% |
| Total solar heat gain coefficient | 93.20% |
| Shading Coefficient | 1.04% Performance varied due to different thickness |
| Usage | Solar power generator, solar panel,water heater etc. |
|
Samples |
Free samples available |
|
Packaging Details |
Sea Worthy Strong Wooden Crates |
|
Lead time |
15 working days |
|
Warranty |
5 years |
Features of Toughened Low Iron Glass
1. Toughened low iron solar glass is mainly used in solar panels due to its high light transmittance.
2. Ultra clear solar glass panel is a thin layer of optoelectronic semiconductor which converting solar energy into electricity.
3. By considering its efficiency, we are using High-transmittance and low reflection glass for its panel. This high strength glass maintains the best image quality by elimination unwanted distortions with the advanced optical technology.
4. The strength and impact resistance of toughened low iron glass are 4-5 times that of ordinary glass.
5. Toughened ultra clear solar glass has better anti-aging, acid and alkali resistance.
Application of Toughened Low Iron Glass
It is used in solar photovoltaic power generation systems, photovoltaic glass curtain walls, solar windows, solar panels, etc.
