Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Solar Glass JY-S115
Contact Us
Ultra Clear Patterned Solar Glass 2mm 4mm Low Reflective Solar Glass
Ultra clear patterned solar glass reduces the directional reflection of the glass through a special embossed pattern design, increases the internal reflection effect, promotes its effective absorption of solar energy, maximizes the transmittance of sunlight, and improves the power generation efficiency. It is a solar cell One of the important components.
Specification
|
Name |
Ultra Clear Patterned Solar Glass |
|
Thickness |
2mm,3.2mm,4mm |
|
Size |
1200mm*1600mm |
|
Glass Color |
Ultra Clear |
|
Solar energy transmittance |
≥91.7%, without AR coating ≥94.7%, with AR coating |
|
Shape |
Flat |
|
Visible Light Reflectance |
7.30% |
|
Solar Reflectance |
7.40% |
|
Shading Coefficient |
1.04% |
|
Samples |
Free samples available |
|

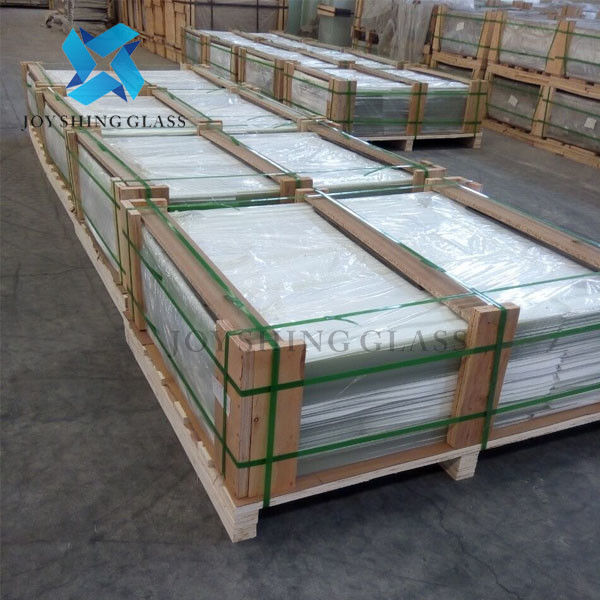

Packaging Details |
Sea Worthy Strong Wooden Crates High safety for upload, unload, and transportation |
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
Advantage of Ultra clear patterned solar glass:
Excellent light transmittance: high solar transmittance, low reflectivity, low specific content, high mechanical strength, high flatness
High efficiency: Reduce the directional reflection of the glass through the embossed pattern design, increase the internal reflection effect and promote its effective absorption of solar energy

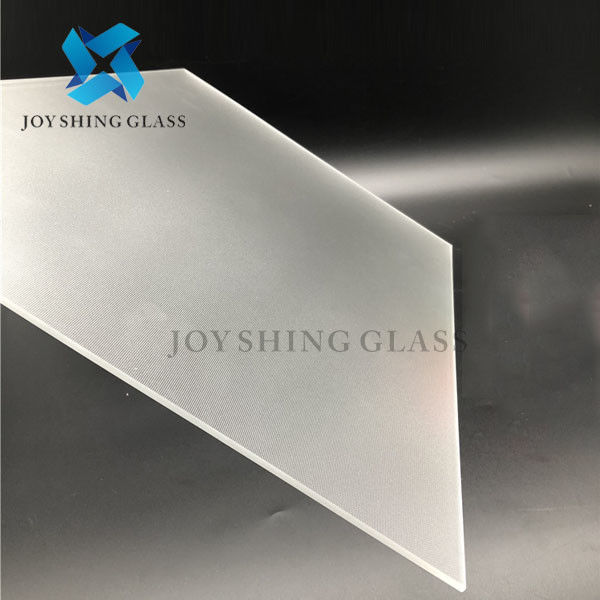

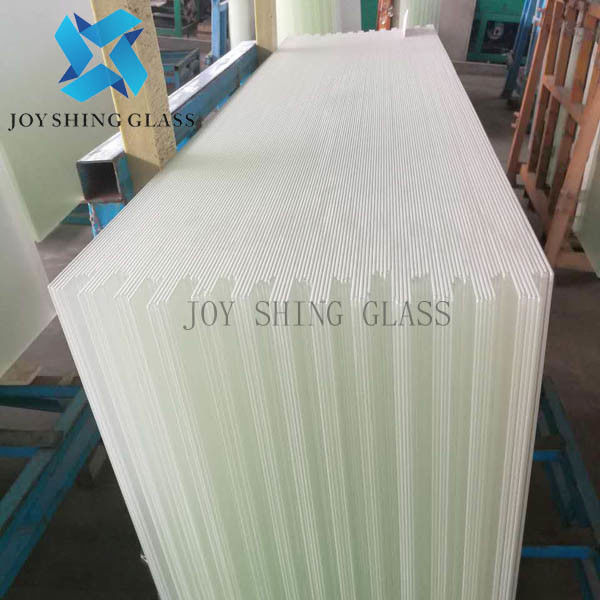

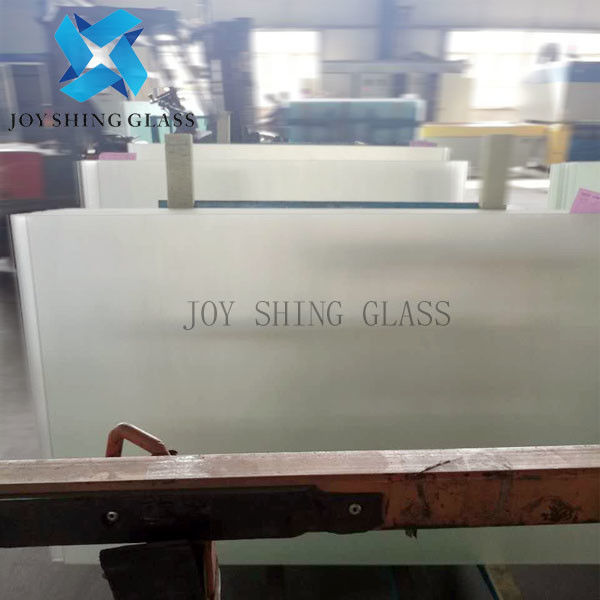

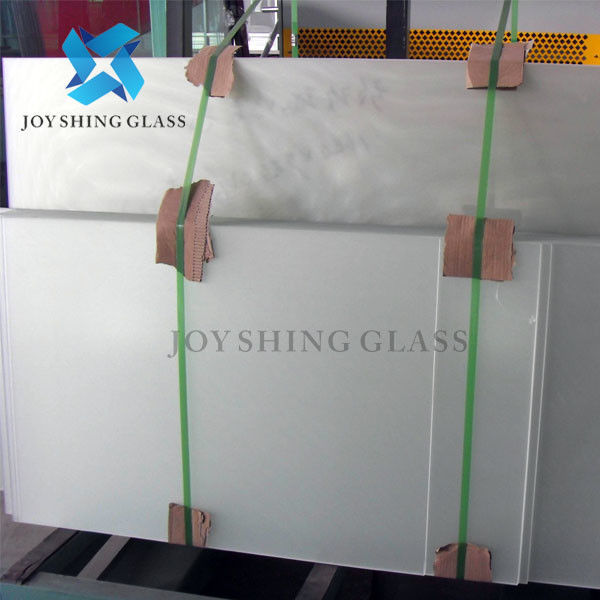

Product photo
Why Choose Us
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc.
