Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Solar Glass JY-S117
Contact Us
Solar Glass,or Solar Photovoltaic Glass, is a glass product used in solar power generation systems. They provide an efficient and environmentally friendly solution for the utilization of renewable energy by converting solar energy into electricity. Joy Shing Glass factory direct sales, can provide customized processing of photovoltaic glass products, integrated solutions, online technical consultation, etc.
Specification
|
Name |
Solar Glass/Solar Photovoltaic Glass |
| Model | JY-S117 |
|
Thickness |
1.6mm-4mm |
|
Size |
2272*1128mm;1717*1128mm,Could be produced as required. |
|
Glass Color |
Ultra white |
|
Transmittance |
>91% |
|
Pencil hardness |
>3H |
|
Iron content |
≤0.015%Fe203 |
|
Solar Reflectance |
7.40% |
|
Shading Coefficient |
1.04% |
|
Packaging Details |
Sea Worthy Strong Wooden Crates. |
| Lead time | 15 working days |
|
Payment Terms |
30% deposit, and balance before shipment by T/T |

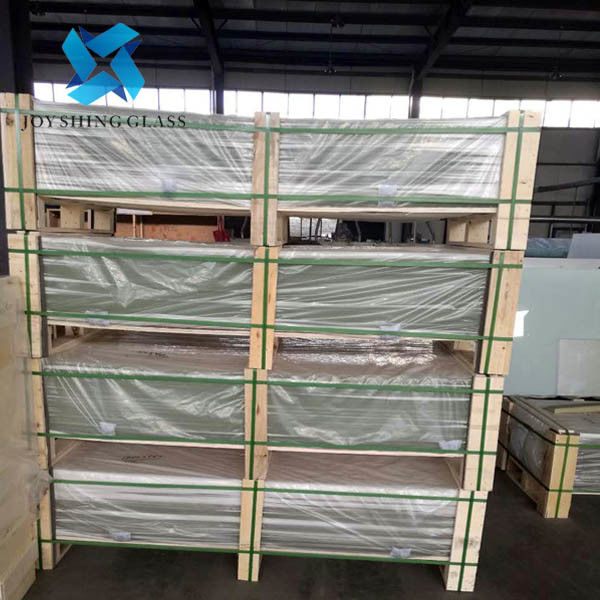

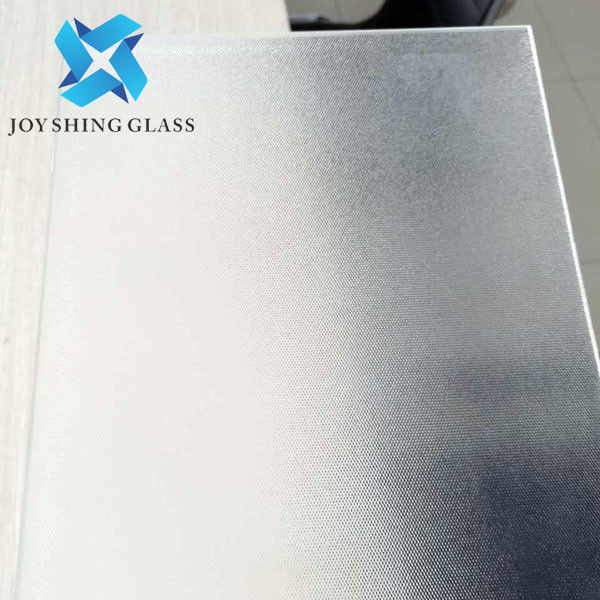

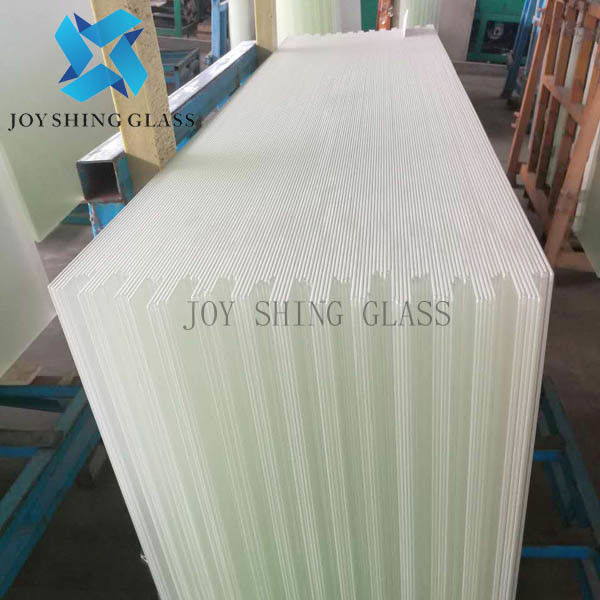

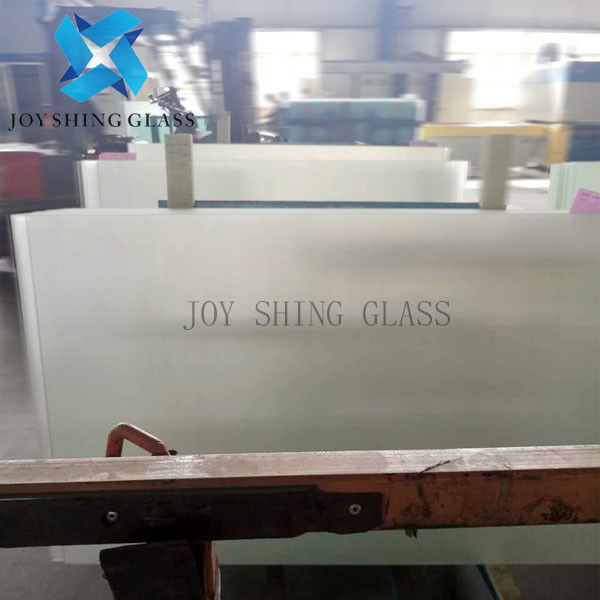

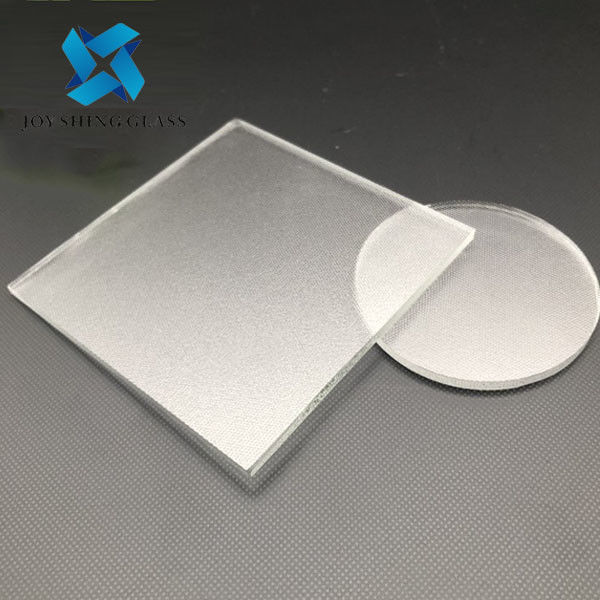

Product photo
Advantage of solar glass
1. High solar lights transmittance
2. The low reflectance: visible light reflectance is less than 7.30%
3. Low iron content: less than 120ppm
4. High intensity: the strength of solar PV glass is 3-5 times of ordinary annealed glass
5. Wind pressure resistance: the wind pressure resistance is 1.5-3 times of ordinary annealed glass;
6. Heat shock resistance: the heat shock resistance is 3 times of ordinary annealed glass;
7. Safety. if broken, solar glass breaks into relatively small pieces, which are less likely to cause serious injury.
Solar photovoltaic glass has a wide range of applications, including but not limited to the following:
1. Construction field: It can be used in windows, curtain walls and roofs of buildings to convert solar energy into electricity and supply it to electrical equipment in buildings.
2. Agricultural field: It can be used in agricultural facilities such as greenhouses and greenhouses to convert solar energy into electrical energy for irrigation, ventilation and lighting systems.
3. Transportation field: It can be applied to transportation infrastructure such as roads, expressways and railways to provide electrical energy for lighting, signal and monitoring equipment.
4. Electric power field: It can be used in solar power plants and photovoltaic power generation systems to convert solar energy into electrical energy and inject it into the grid for supply to users.
