Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Solar Glass JY-S119
Contact Us
Ultra Clear Patterned Back Glass 2mm Silk Screen Back Panel
Silk Screen Back Panel uses ultra clear patterned glass , which is processed by grinding, drilling and tempering.It is mainly used for thin-film solar cells and crystaline silicon double-glazed modules.We can customize and further process glass as required, including size, thickness, drilling, etc. Wholesale purchase prices are more favorable.
Joy Shing’s advanced equipments ensure the excellent processing precision of products, and the good production technology and further processing management ensure the excellent quality of products, so as to realize the stable supply of the front panel and back panel used in the crystal silicon and thin film modules.
Specification
Name | Ultra clear Patterned Back Glass |
Thickness | 2mm |
Size | 2251*1128mm,2272*1128mm,2378mm*1297mm,custom size |
Glass Color | Ultra clear |
White glaze reflectivity | ≥75% |
Shape | circle, rectangle,special shape |
Surface stress | ≥65Mpa |
Overal tortuosity | ≤0.2% |
Samples | Free samples available |
| Application | solar panels |
Packaging Details | Sea Worthy Strong Wooden Crates |
Service | Integrated solutions, online consultation, installation guidance, processing customization, after-sales service, etc. |
Payment Terms | 30% deposit, and balance before shipment by T/T |
Advantage
1. High light transmittance: Ultra clear patterned back glass have high light transmittance, which can maximize the absorption and use of solar radiation and provide efficient light energy conversion efficiency.
2. The white grid-like high-reflection glaze layer can cover the gaps between the cell sand part of the light Reflected back to the cell, the function is equivalent to high-reverse EA,thereby increasing the power generation of the module
3.The use of 1.6mm-2.0mm hich light transmittance back sheet focuses on the lightness of the module, which greatly extends the service life of the solar module , while increasing the power generation of the components,which is conducive to a substantial reduction in the cost of powergeneration.
4. Ultra clear patterned back glass is tempered. It is a kind of safety glass with high strength, impact resistance and bending resistance.

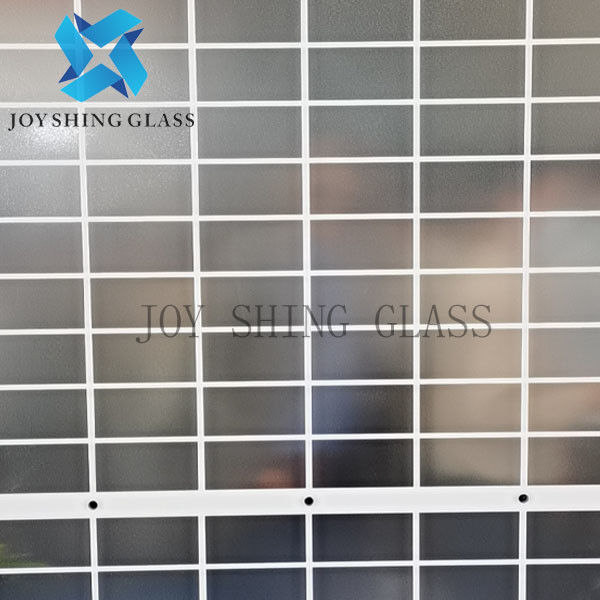

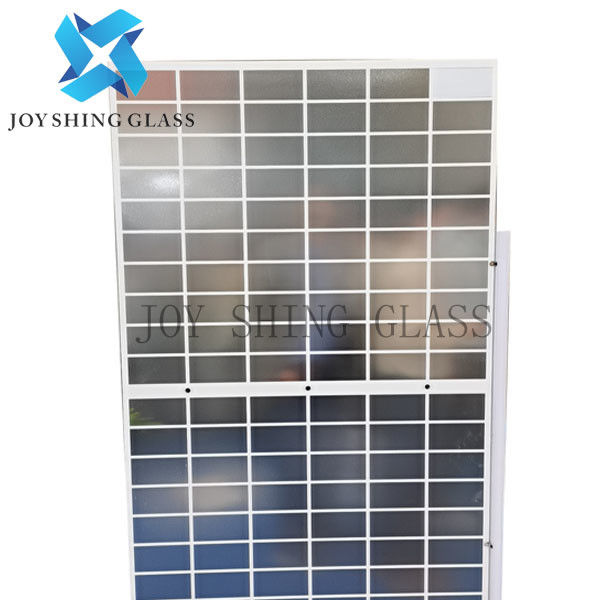

Product photo
