Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Solar Glass JY-S102
Contact Us
3.2mm Tempered Patterned Glass , AR Solar Photovoltaic Glass For Buildings
AR Solar Tempered Patterned Glass reduces the directional reflection of the glass through a special embossed pattern design, increases the internal reflection effect, promotes its effective absorption of solar energy, maximizes the transmittance of sunlight, and improves the power generation efficiency. It is a solar cell One of the important components, it has the characteristics of high solar transmittance, low reflectivity, high mechanical strength, high flatness and so on.
Specification
| Product name | AR Solar Tempered Patterned Glass | |
| Model | JY-S102 | |
| Property | Certificate owned | CE,TUV,SPF etc, |
| Thickness(mm) | 1.6mm-4.0mm | |
| Dimension(mm) | 300*300-2378*1297mm | |
| Dimension Tolerance(mm) | ±1.0 | |
| Surface Condition | Structured in same way on both sides acc. To technical requirement | |
| Solar transmittance | ≥91.7% | |
| (wavelength Range:380-1100mm) | ||
| Iron Content | ≤ 120ppm | |
| Hardness | ≥4H | |
| Adhesion | under boiling with 5% saline water,our glass goes well in 30 minutes | |
| Roughness | smooth side average 0.4-1.2μm | |
The Advantages
A) Combined with nanometer anti-reflective coating technology, glass surface has a dense structure of high -gain film,which increase around 2.0 percent of solar transmittance;
B) With great weather resistance of ARC layer, module can keep low power reduction .
C) Self-cleaning function to decrease the work of maintenance for the module;
D) Good performance on acid and alkali resistance under terrible environments outdoor.
E) Owned a melting furnance of 550t/d capacity.
F) Our vertically integrated production model allows us to strictly control the quality of both our materials supply chain and production cycle,allowing us to provide high quality, durable PV glass.

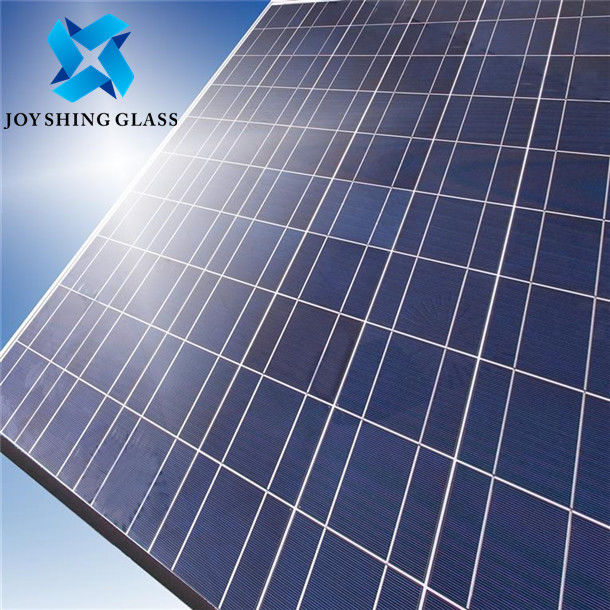

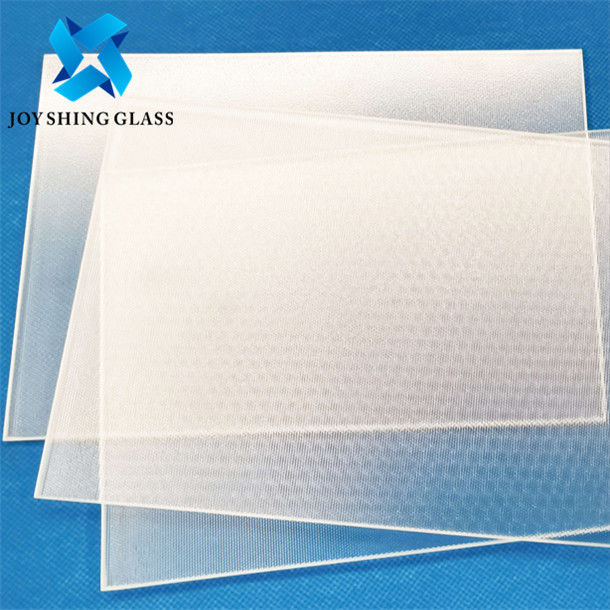

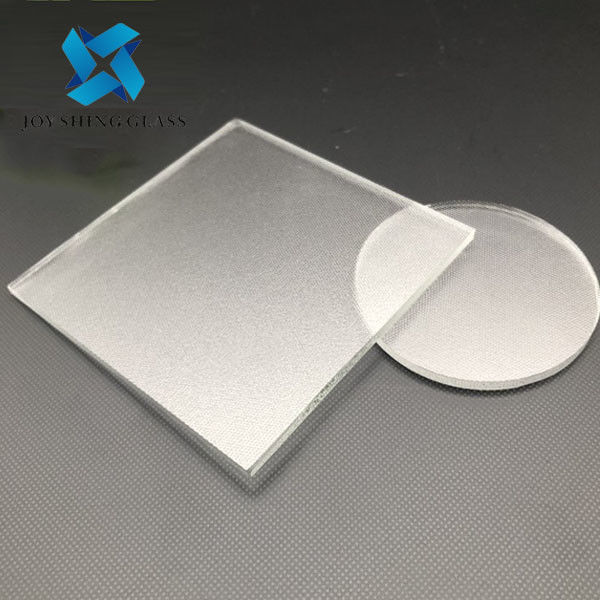

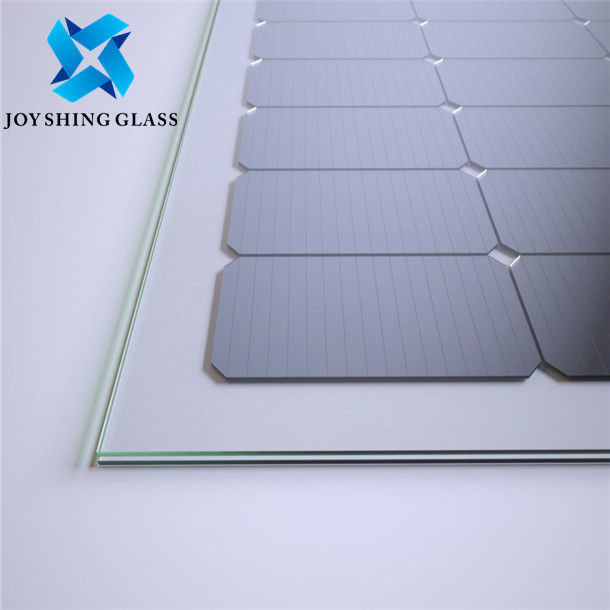

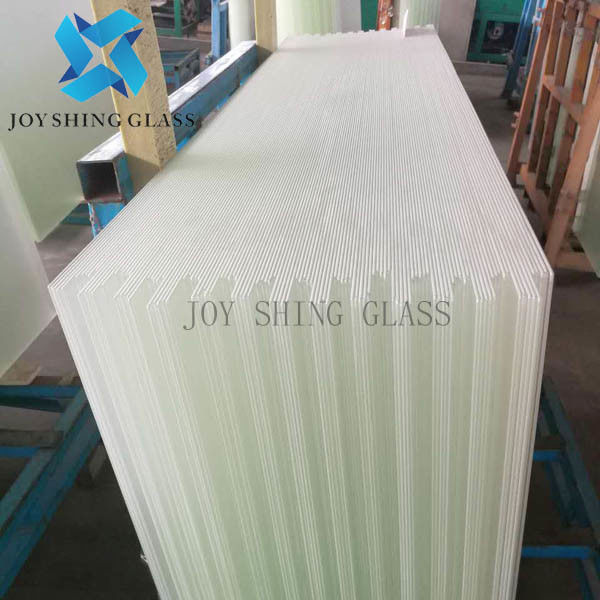

Product photo
