Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Solar Glass JY-S114
AR Coated Solar Glass 2mm Ultra Transparent Tempered Solar Glass
AR Coated Solar Glass which mainly used on solar panel because of its super light transmittance rate.AR Coating can effectively decrease the reflectivity of glass surface and increase the energy conversion efficiency and output power of the PV modules.
Joy Shing Glass AR Coated Solar Glass minimizes the reflection at the glass/air interface without affecting the excellent adhesion between the glass and the interlayer used in laminating photovoltaic modules.
AR Coated Solar Glass is widely used in building curtain walls, photovoltaic roofs, office screens and partitions, solar panels, solar power generation systems,etc.
Specification
|
Name |
AR Coated Solar Glass |
| Model | JY-S114 |
|
Thickness |
2mm |
|
Size |
1718mm*1128mm |
|
Glass Color |
Ultra transparent,clear |
|
Shape |
Flat |
|
Visible Light Transmittance |
91.60% |
|
Visible Light Reflectance |
7.30% |
|
Solar energy transmittance |
≥91.7%, without AR coating ≥94.7%, with AR coating |
|
Shading Coefficient |
1.04% |
|
UV Transmittance |
86.80% |
|
Samples |
Free samples available |
|
Packaging Details |
Sea Worthy Strong Wooden Crates. Use protective paper film and soft wood pad for separate glass avoid breaking. |
|
Payment Terms |
30% deposit, and balance before shipment by T/T |

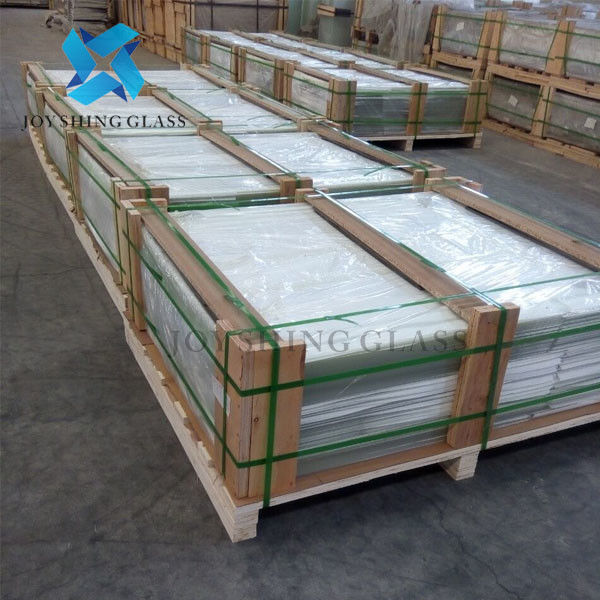

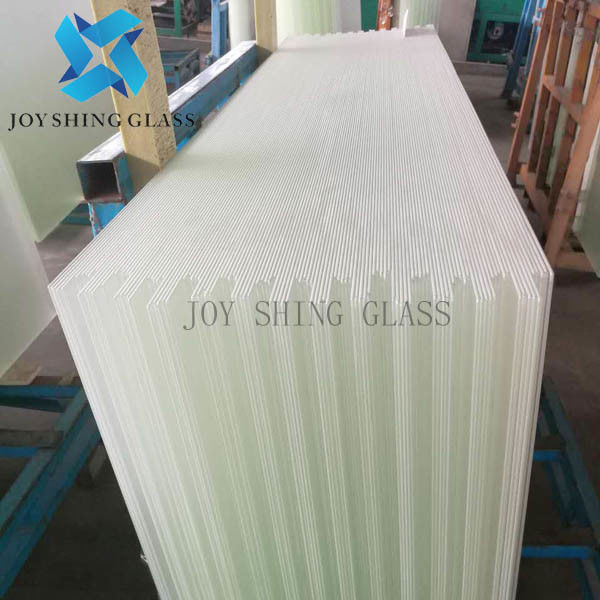

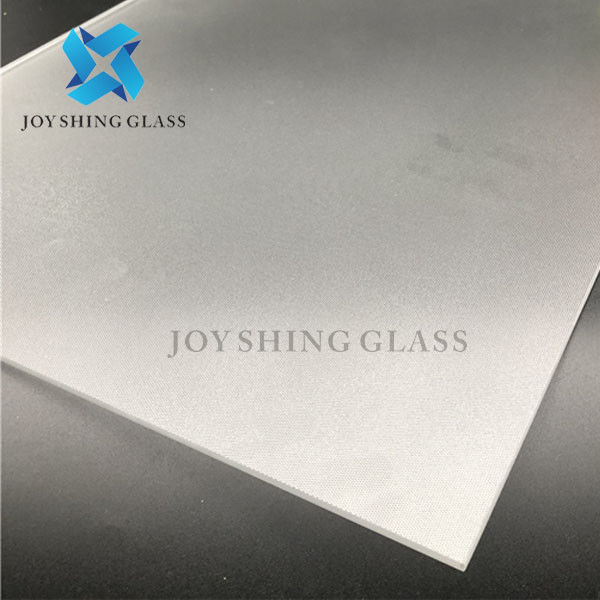

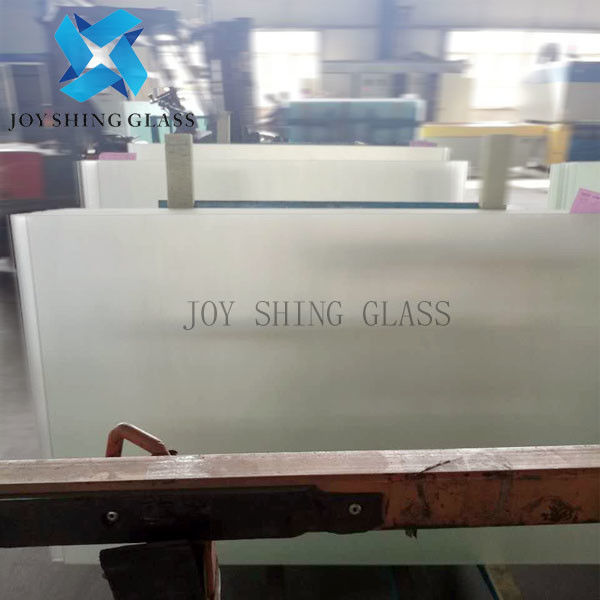

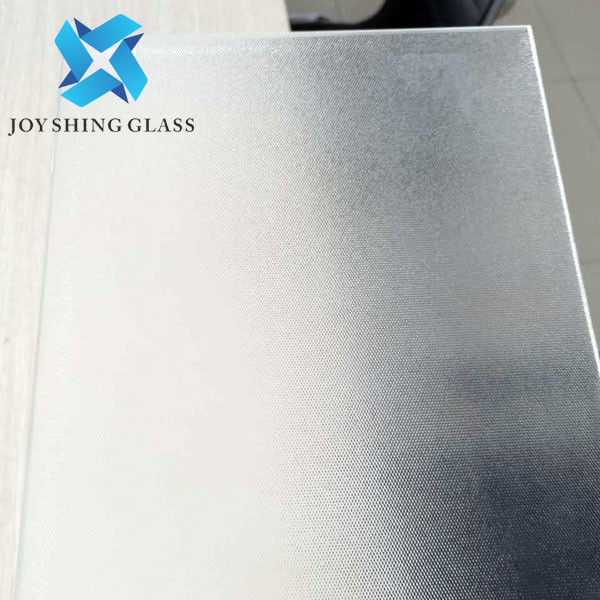

Photo Of AR Coated Solar Glass
Why Choose Us
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc.
