Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Solar Glass JY-S112
Contact Us
4mm Ultra White Solar Glass AR Coating Solar Glass Customization
Joy Shing Solar Glass include Ultra Clear Patterned Solar Glass,AR Coating Solar Glass. Solar Glass which mainly used on solar panel because of its super light transmittance rate.
AR Coating can effectively decrease the reflectivity of glass surface and increase the energy conversion efficiency and output power of the PV modules.
Joy Shing Glass Anti-Reflective Coated(ARC)Glass minimizes the reflection at the glass/air interface without affecting the excellent adhesion between the glass and the interlayer used in laminating photovoltaic modules.
Specification
|
Name |
Ultra White Solar Glass |
|
Thickness |
4mm |
|
Size |
2251*1128mm |
|
Glass Color |
Ultra White |
|
Solar energy transmittance |
≥91.7%, without AR coating ≥94.7%, with AR coating |
|
UV Transmittance |
86.80% |
|
Shading Coefficient |
1.04% |
|
Visible Light Reflectance |
7.30% |
|
Solar Reflectance |
7.40% |
|
Total Solar Heat Gain Coefficient |
92.20% |
|

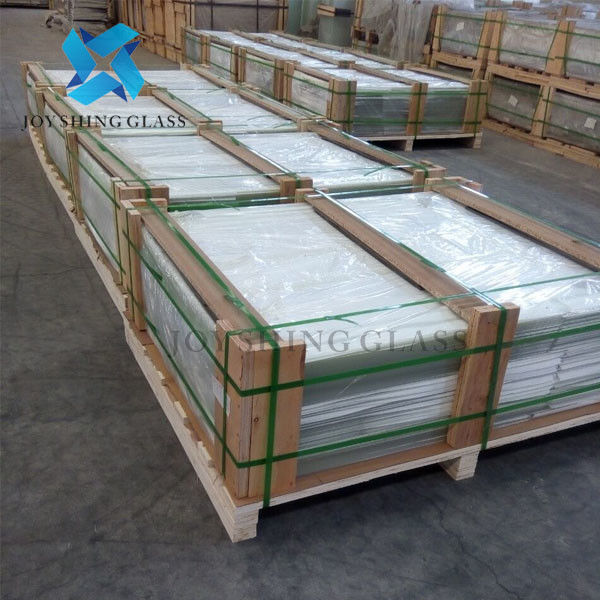

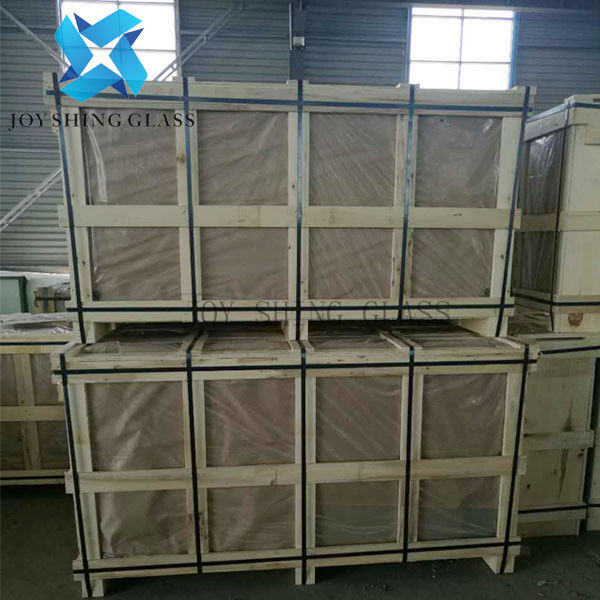

Packaging Details |
Sea Worthy Strong Wooden Crates |
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
| Warranty | 5 Years |
Applications of solar glass:
Solar glass is widely used in building curtain walls, photovoltaic roofs, sunshade,office screens and partitions, solar panels, sunroom,etc.

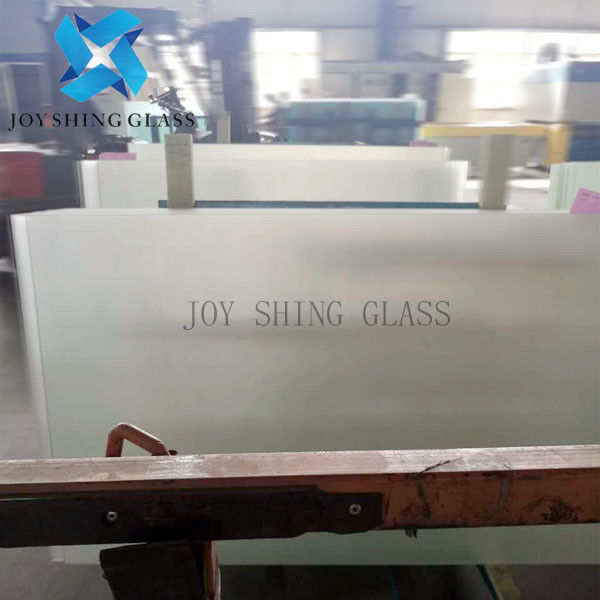

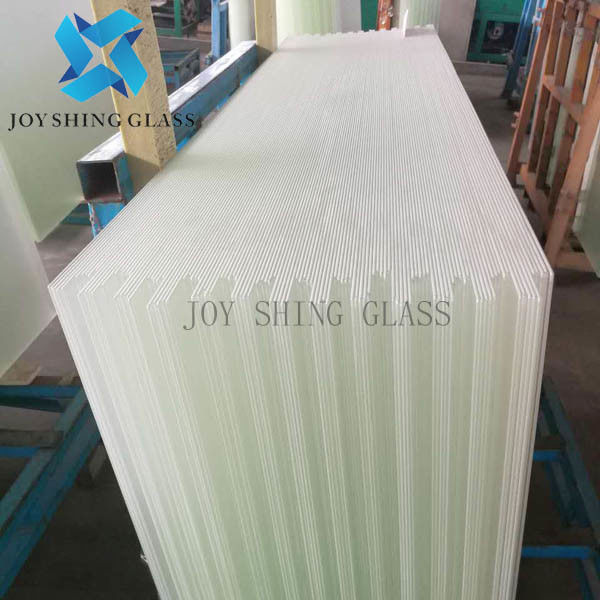

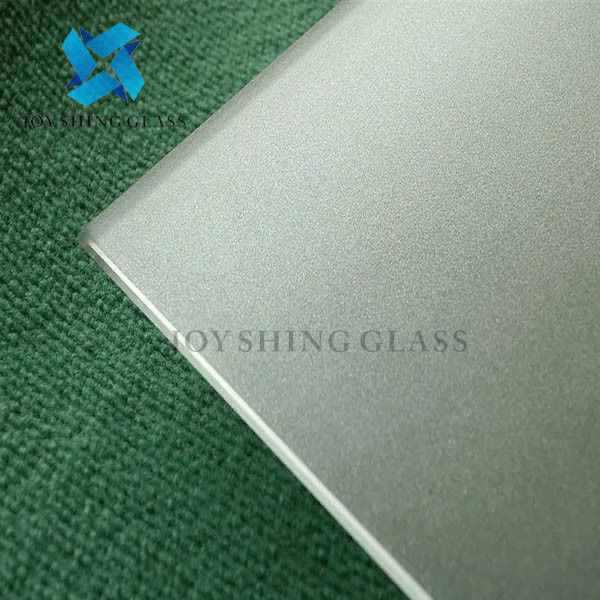

Product photo
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc.
More glass optional
