Ultra Clear Solar Tempered Glass Curved / Flat Transparent Photovoltaic Glass

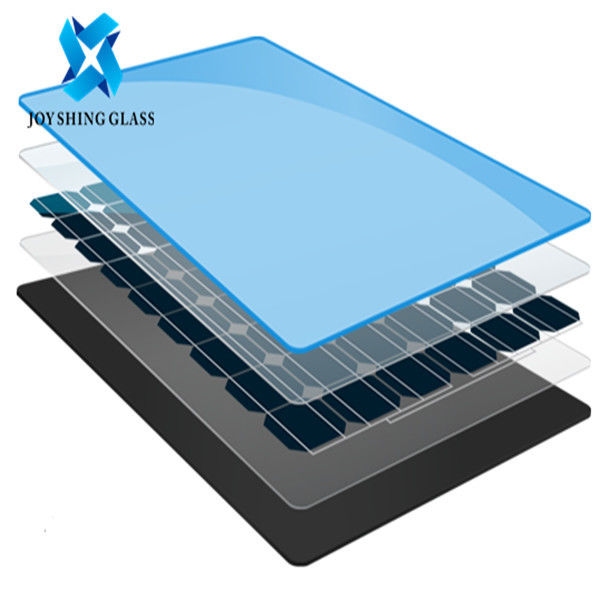

Ultra Clear Solar Tempered Glass is a high performance low iron glass. It has the characteristics of high light transmittance, high strength and long service life, and is an important part of solar panels. Joy Shing Glass can produce the size, thickness, and shape (flat/curved) of photovoltaic glass on demand, and the factory direct sales price is excellent. Our company's advanced equipment and good production technology ensure the excellent quality of the products, with production capacity of 50,000 square meters per day, which can achieve stable supply.
Specification
| Product name | Ultra Clear Solar Tempered Glass |
| Model | JY-S108 |
| Max. size | 2378mm*1297mm |
| Mix. size | 300*300mm |
| Solar Transmittance (3.2mm) | ≥ 91.6% |
| Iron Content | ≤ 120ppm Fe2O3 |
| Poisson's Ration | 0.2 |
| Density | 2.5g/CC |
| Visible light transmittance | 91.60% |
| Visible light reflectance | 7.30% |
| Solar transmittance | 92% |
| Solar reflectance | 7.40% |
| Total solar heat gain coefficient | 92.20% |
| UV transmittance | 86.80% |
| Shading coefficient | 1.04% |
| Glass Type | Solar patterned glass, solar float glass |
| Certifications | CE, ISO, CCC |
| Thickness | 3.2mm(widely used), 4mm etc. |
| Color | Ultra Clear |
| Glass shape | flat, curved |
| Delivery time | 1~2 weeks after received the deposit |
Advantages of ultra clear solar tempered glass
1. Ultra clear solar tempered glass has high solar transmittance
2. Low reflectivity: visible light reflectance is less than 7.30%
3. The iron content of ultra clear solar tempered glass is low, less than 120ppm, which reduces the self-explosion rate.
4. The strength of ultra clear solar tempered glass is 3-5 times that of ordinary glass, and it has strong impact resistance and bending resistance.

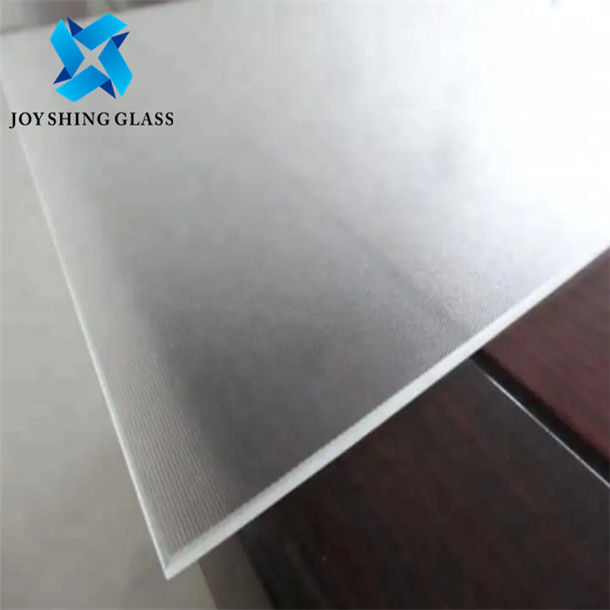

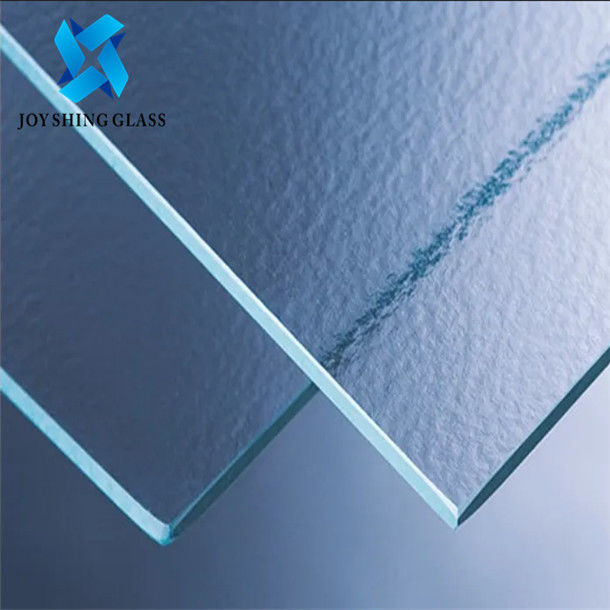

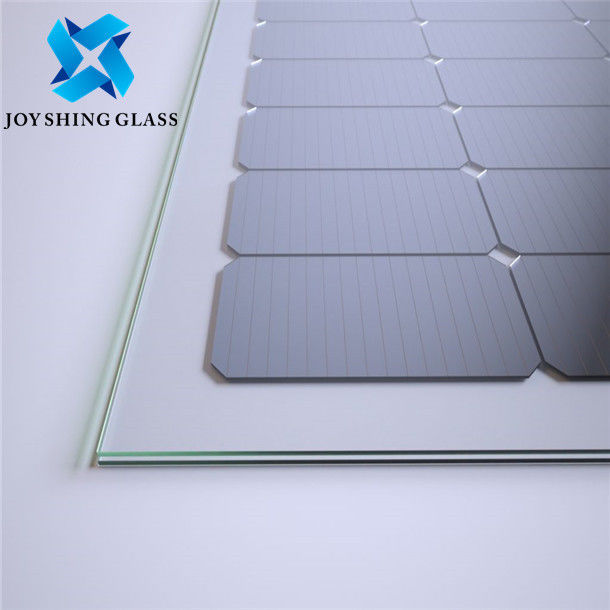

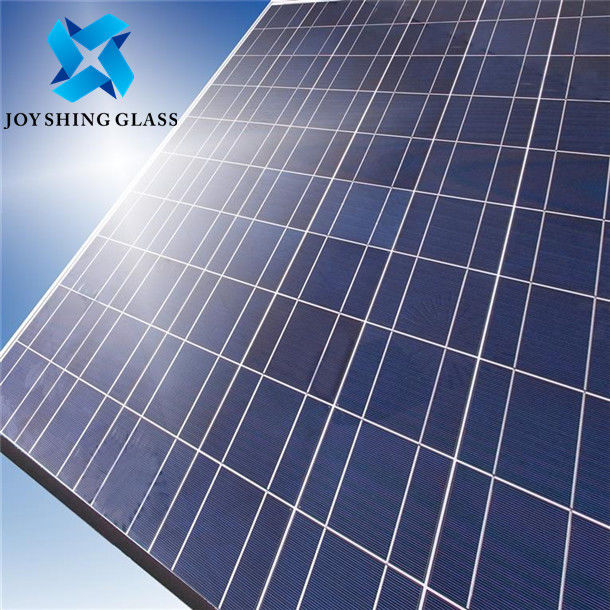

Product photo
