Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Solar Glass JY-S104
Contact Us

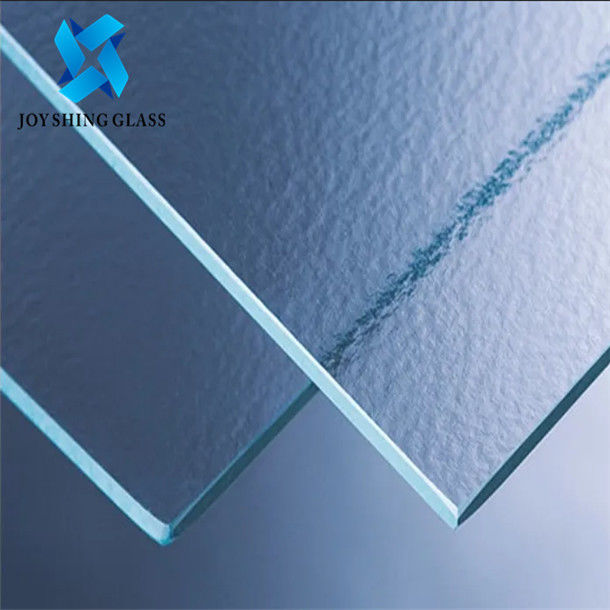

2.0mm 3.2mm 4mm AR Coated Tempered Glass For Solar Panels

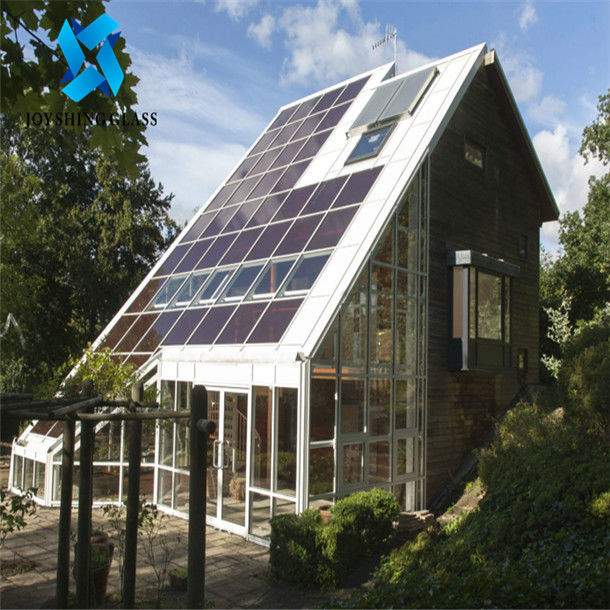

AR Coated Tempered Glass is a kind of solar glass, which has the characteristics of high solar transmittance, high mechanical strength and low reflectivity. It is widely used in building curtain walls, photovoltaic roofs, solar panels, sun rooms and other fields. Joy Shing Glass factory direct sales, preferential price, monthly production capacity of 5 million square meters, stable supply.
Specification
| Product name | AR Coated Tempered Glass |
| Model | JY-S104 |
| Thickness | 2mm, 3.2mm and 4mm |
| Size | Min size:300*300mm, Max size:2378*1297mm |
| Further Process | cleaning, cutting, rough grinding, hole, etc. |
| Surface | Mistlite single pattern or flat |
| Visible light Transmittance | 91.60% |
| Visible light reflectance | 7.30% |
| Solar Transmittance | 92% |
| Solar reflectance | 7.40% |
| UV transmittance | 86.80% |
| Total solar heat gain coefficient | 92.20% |
| Shading Coefficient | 1.04% Performance varied due to different thickness |

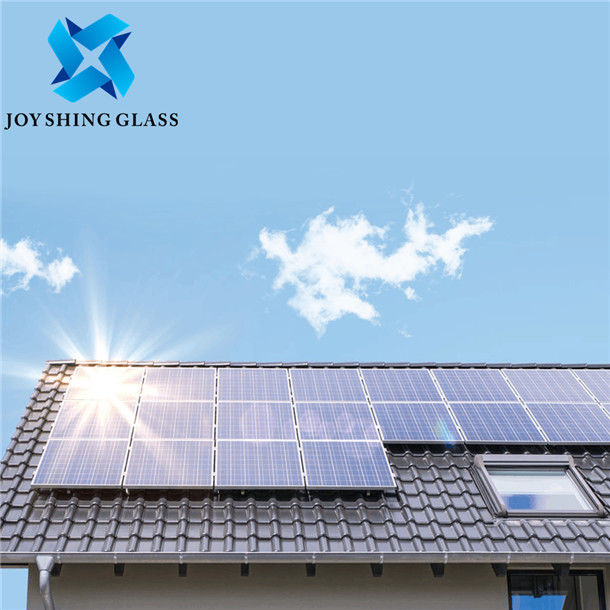

| Usage | It is widely used as solar power generator, solar panel,water heater etc. |
|
Samples |
Free samples available |
|
Warranty |
5 years |
|
Service |
Integrated solutions, online consultation, installation guidance, processing customization, after-sales service, etc. |
The Advantages
1. AR coating can effectively decrease the reflectivity of glass surface and increase the energy conversion efficiency and output power of the PV modules.

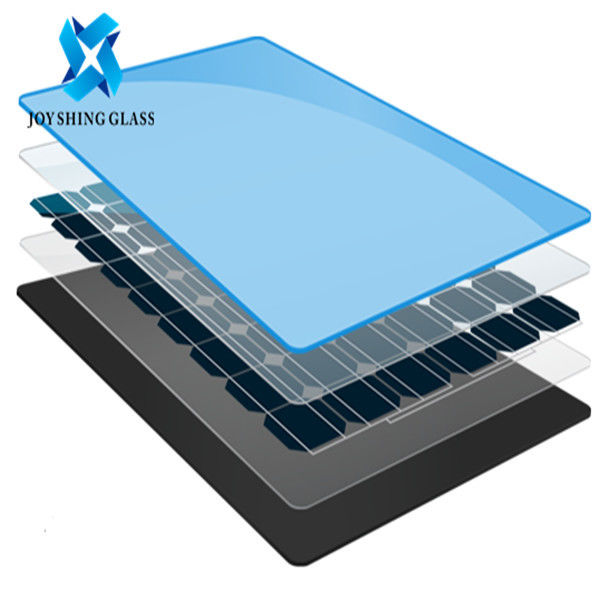

2. Being single-sided, Joy shing Glass Anti Reflective Coated (ARC) Glass minimizes the reflection at the glass/air interface without affecting the excellent adhesion between the glass and the interlayer used in laminating photovoltaic modules.
3. Tempered standard companies with EN12150.
4. One-sided AR coating increased light transmittance by at least 2%.
