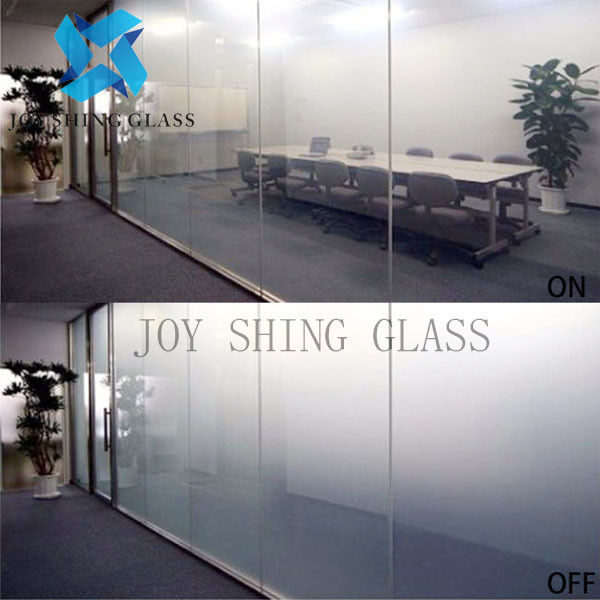

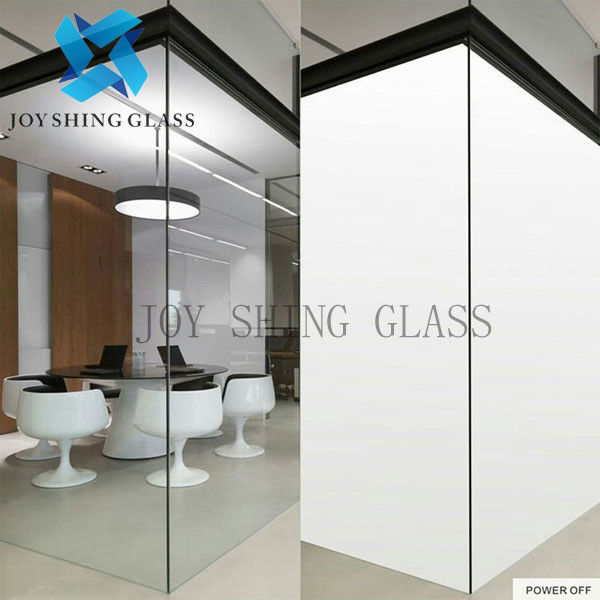

Intelligent dimming glass can change from transparent to opaque by simply switching ON and OFF modes, and consists of three parts: glass original sheet, dimming film, and laminated film.Smart dimming glass is a kind of safe laminated glass, even if the glass fragments are broken, they will stick together without splashing. At the same time, it can protect privacy very well.
Joy Shing Glass factory direct sales, can provide customized intelligent glass products including: thickness, size, color, processing, etc. For more details, please contact us.
Structure of Intelligent dimming glass
Specification
| Product Name | Intelligent dimming glass |
| Model | JY-SS115 |
| Size | Mini: 200mm x 200mm; Max: 1,800mm x 3,200mm,customized |
|
overall thickness |
Glass thickness+EVA thickness+PDLC film thickness+EVA thickness+ Glass thickness |
| Glass color | white,clear,grey,etc. |
| Power consumption | 3.6W/sq.meter |
| Transmittance | 78%+1% |
| Shape | Flat/curevd |
|
UV Block |
99% |
|
Power on |
Transparent |
| Power off |
Opaque |
|
Operating voltage |
48V AC |
|
Operating temperature |
-30℃-60℃ |
|
Sample |
Available |
|
Packaging |
Sea Worthy Strong Wooden Crates Use protective paper film and soft wood pad for separate glass avoid breaking. |
|
Lead time |
15-20 working days |
|
Warranty |
5 years |
Feature
1. Switchable glass can protect privacy and control space freely
2. Block 99% of ultraviolet rays, protect indoor furniture from fading, and protect people from diseases caused by ultraviolet radiation.
3. Energy saving, low power consumption
4. Can block part of the noise
5. The intelligent switchable glass can be used as a projection screen, it is easy to convert it into a home theater or an advertising wall.
6. Various control methods, which can be controlled by remote control, mobile APP, etc.
7. The intelligent dimming glass is easy to install and easy to control, without complicated curtain installation and subsequent cleaning.
Application
Smart dimming glass can be used for partitions, privacy protection and projection screens in hotels, conference rooms, bathrooms, bedrooms, offices, banks, hospitals, etc.
