Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE
Model Number:
Switchable Smart Glass JY-SS117
Contact Us
Switchable Smart Glass Doors Windows,Smart Dimming Glass
Joy Shing Glass manufacturers customize switchable smart glass doors/windows, and can produce size, thickness, color, and processing according to customer requirements. Switchable smart glass doors/windows use smart dimming glass, which is a new type of photoelectric glass that combines liquid crystal film into the middle of two layers of glass, and then is glued together under high temperature and high pressure. Users can control the transparency and opacity of the glass by switching the power switch. Compared with traditional glass doors and windows, switchable smart glass can divide the space and protect privacy better.
Structure of smart dimming glass

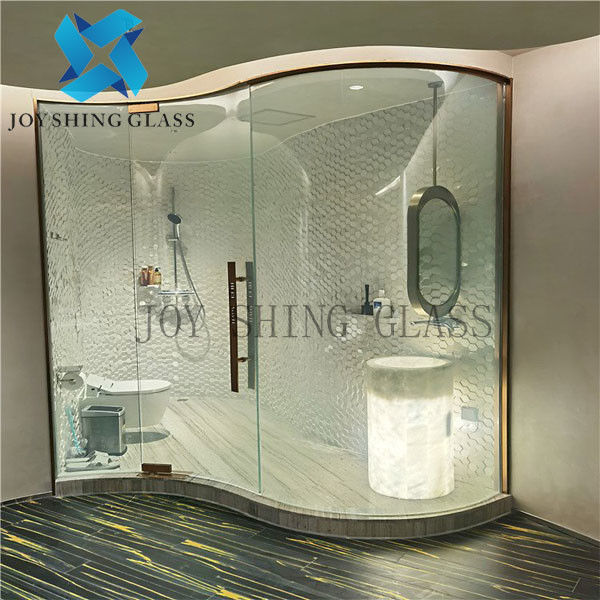

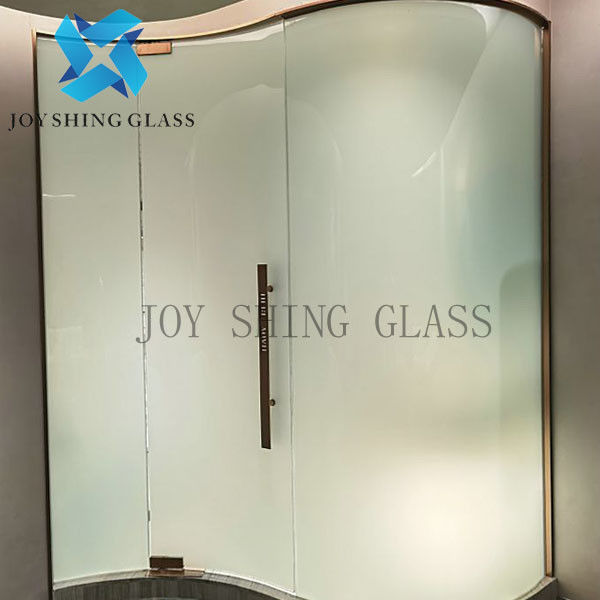

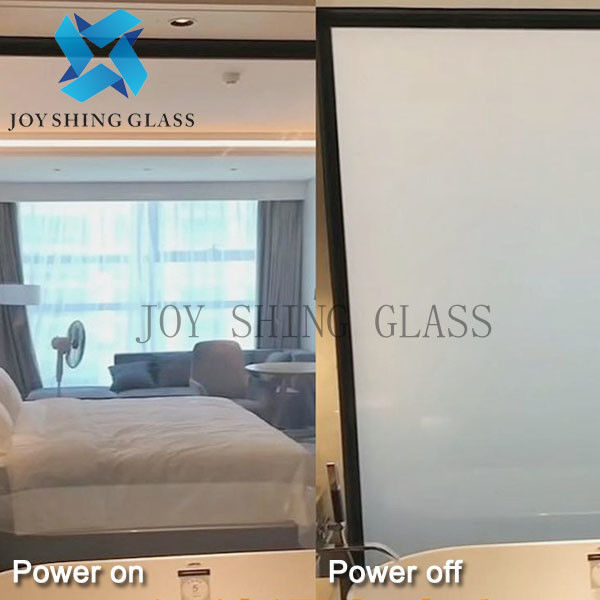

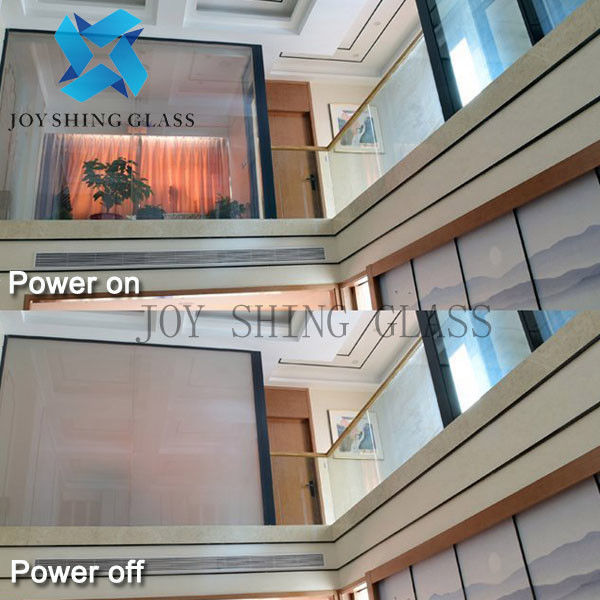

Switchable smart glass doors and windows privacy effect
Specification
| Product Name | Switchable Smart Glass Doors Windows |
| Model | JY-SS117 |
| Max Size | customized |
|
Thickness |
Customized, Glass thickness+EVA thickness+PDLC film thickness+EVA thickness+Glass thickness |
| PDLC thickness | 0.38mm |
| EVA thickness | 0.38mm, 0.76mm, etc. |
| Glass thickness | 4mm, 5mm, 6mm, 8mm,etc. |
| Glass color | Bronze,light grey,green,blue,clear,white,etc. |
| Power consumption | 3.6W/sq.meter |
| Transmittance | 78%+1% |
| Shape | Flat/bent/special shape |
|
UV Block |
99% |
|
Power on |
Transparent |
| Power off |
Opaque |
|
Working voltage |
48V AC |
|
Working temperature |
-30℃-60℃ |
|
Sample |
Available |
| Delivery time | 15 working days |
|
Packaging |
Sea Worthy Strong Wooden Crates Use protective paper film and soft wood pad for separate glass avoid breaking. |
|
Warranty |
5 years |
Feature
1. The transparent and opaque state of the glass can be freely controlled to protect privacy and control the space freely.
2. Anti-ultraviolet: switchable smart glass doors windows can block 99% of ultraviolet rays, reduce energy consumption of indoor air conditioners, heat insulation and energy saving.
3. Switchable smart glass doors windows have the characteristics of laminated glass, noise reduction, and safety. Even if the glass is broken, the debris will stick to the film and will not splash.
4. Switchable smart dimming glass doors/windows, which can also be used as projection screens when opaque.
5. The operation is flexible and simple, and it can be turned on and off by remote control, mobile phone APP, etc.
Application
switchable smart dimming glass can be used for partitions, privacy protection and projection screens in hotels, conference rooms, bathrooms, bedrooms, offices, banks, hospitals, etc.
