Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE
Model Number:
Switchable Smart Glass JY-SS110
Contact Us
Laminated PDLC Film Smart Glass is a kind of laminated switchable glass, the PDLC film is laminated between two pieces of glass, and the glass can be switched transparent or opaque by switching the power supply. When the power is off, the incoming visible light scatters through the PDLC, and the glass becomes opaque; when the power is on, the incoming visible light transmits through the PDLC, and the glass becomes transparent.
Joy Shing Glass manufacturers supply, high quality, excellent price, and provide customized product size, thickness, shape and other parameters.
Structure of Laminated PDLC Film Smart Glass

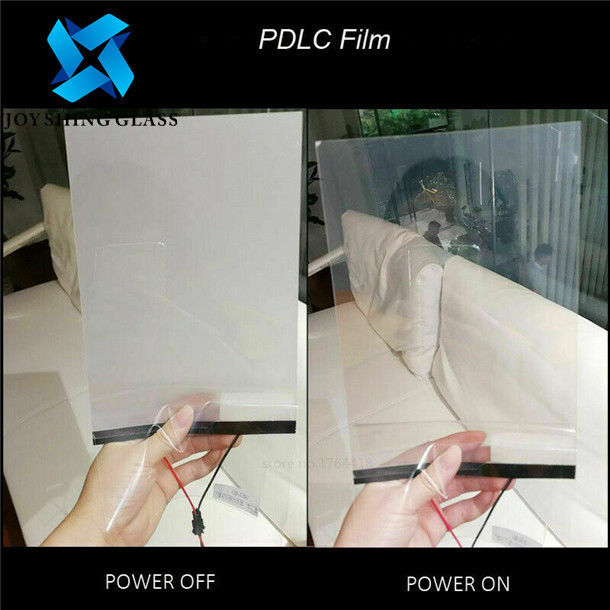

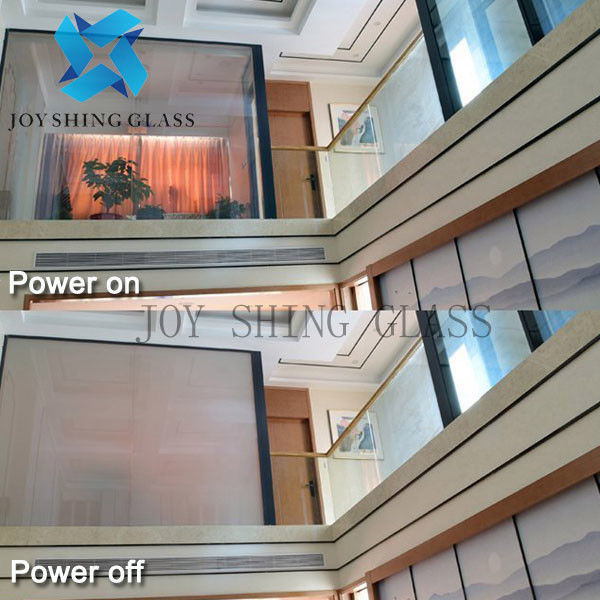

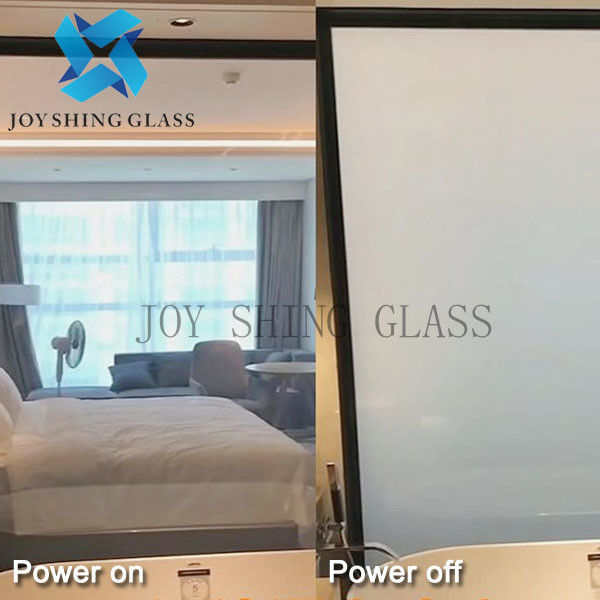

Laminated PDLC Switchable Glass Power On/Off Status Display
Specification
| Product Name | Laminated PDLC Film Smart Glass |
| Model | JY-SS110 |
| Size/Thickness | customized |
|
Structure |
Glass thickness+0.76mm(EVA)+0.44mm PDLC film+0.76mm(EVA)+ Glass thickness |
| Power consumption | 3.6W/sq.meter |
| Transmittance | 78%+1% |
| Shape | Bent/Flat |
|
UV Block |
99% |
|
Service |
Integrated solutions, online consultation, installation guidance, processing customization, after-sales service, etc. |
|
Packaging |
1. Interlay paper between two panel 2. Seaworthy wooden crates. 3. Iron/Plastic belt for consolidation |
|
Lead time |
15-20 working days |
|
Warranty |
5 years |
Feature
Switch between privacy requirements and open environment requirements at any time
When opaque, Laminated PDLC Film Smart Glass can be used as a rear projection screen or whiteboard
When damaged by external force, it will only produce cracks, not break, and there is no danger of flying glass fragments
Application
