Switchable Smart Glass Windows 1mm-19mm Self Adhesive PDLC Film
Joy Shing Glass factory customizes switchable smart glass windows, and can produce size, thickness, shape and other functions according to requirements.
Specification
| Item | Mode | JY-SS105 | |
| Optical Parameters | Visible Light | Power On | ≥87% |
| Transmission | Power Off | ≥70% | |
| Haze | Power On | ≤4% | |
| Power Off | ≥96% | ||
| Visual Angle | Power On | >140º | |
| Electrical Parameters | Operating Voltage | Power On | 40-60VAC |
| Power Consumption | Power On | <5w/m2 | |
| Response Time | On-->Off | <100ms | |
| Off-->On | <10ms | ||
| Physical Parameters | Color | / | White, blue, green, yellow, red,gray |
| Thickness of glass | / | 4mm+film+4mm,5mm+film+5mm,6mm+film+6mm, | |
| 8mm+film+8mm, 10mm+film+10mm | |||
| Max size of glass | / | 3000mm*1200mm/1800mm*3000mm | |
| Max size of film | / | 1200mm*5000mm/1800mm*3000mm | |
| Width | / | In Roll: 1/1.2/1.5m | |
| In Sheet: ≤1.5m | |||
| Length | / | In Roll: 30/60m, etc | |
| In Sheet: any | |||
| On/Off Lifespan | / | >100,000 times | |
| Lifespan | Power On | >10 years | |
| Environmental Parameters | Working Temperature | / | -20℃—+70℃ |
| Storage Temperature | / | -30℃—+80℃ | |

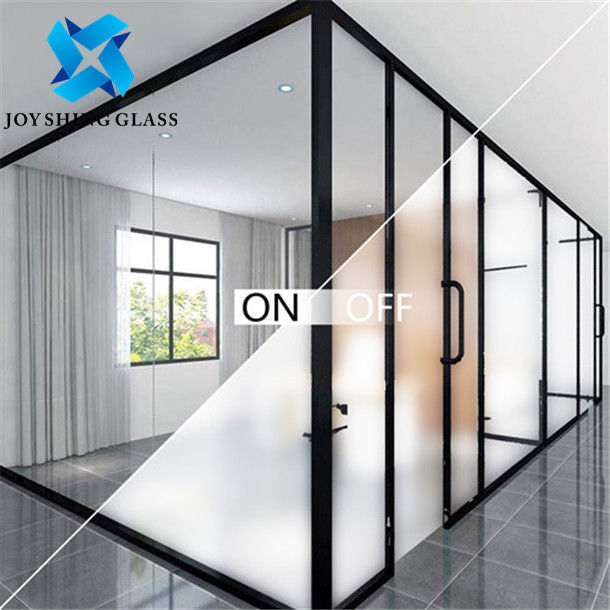

| Function | Privacy Protection and Space Partition | The smart glass switches between opaque and transparent, its priority function is privacy protection, meanwhile, allows architects and contractors to provide creative design concepts on demands. | |
| Projection Screen | Ideal solution for a rear-projection screen with high contrast. | ||
| Safety and | Improve glass shatter resistance. | ||
| Anti-explosion | |||
| Heat Insulation | Blocking 99% ultraviolet radiation, 98% infra-red rays, preventing fading of your floors and soft furnishings, protecting your skin. | ||
| Sound Insulation | Blocking noise by 20% more than ordinary glass. | ||
| Multiple Control Mode | To meet the needs of different occasions, various controls are available, such as remote control, wall switch, light sensor, voice control, mobile APP, etc. | ||
| Product type | 1. Water proof smart glass | ||
| 2. Bullet proof smart glass | |||
| 3. Smart glass door / windows, smart glass partitions | |||
| 4. Smart glass bathroom | |||
| 5.Smart glass projection screen | |||
| 6. Hollow sound insulation smart glass | |||
| 7. Energy saving and environmental protection smart glass | |||
| 8. Colorful smart glass/Digital printing dimmer Glass | |||
| 9. Anti-skid smart glass | |||
| 10. LED smart glass | |||
| 11. UV protect smart glass | |||
