Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE
Model Number:
Switchable Smart Glass JY-SS101
Contact Us
PDLC Switchable Smart Glass 3200x1800mm For Privacy Protection
Joy Shing Glass manufacturer supplies PDLC Switchable Smart Glass, which is a kind of privacy glass with adjustable transparency. Its transparency can be adjusted by controlling current or other forms of input signals. Through its adjustable transparency, PDLC dimming glass is used in construction, automobile, aerospace and other fields, such as windows and partitions in buildings, car windows, skylights, and aircraft portholes, etc., providing users with privacy protection and Solutions for environmental regulation.
Specification
| Product Name | PDLC Switchable Smart Glass |
| Model | JY-SS101 |
| Raw Material Glass | Float glass, ultra-clear glass, tinted glass,etc. |
| Thickness | 5+5mm / 6+6mm |
| Color | Clear, Milky, Grey, Blue, Green, Red, Black |
| Common Width | Smart Glass -- 1.0, 1.2, 1.5, 1.8meters (Max 1.8meters) |
| Self-Adhesive PDLC Film-- 1.0, 1.2, 1.5meters (Max 1.5meters) | |
| PDLC Film Length | 30 or 50 meters/roll or per request |
| Visible Light Transmittance | Clear Glass: >= 85% (ON) / <=3% (OFF) |
| Ultra Clear Glass: >= 86% (ON) / <=10% (OFF) | |
| Response Time | From OFF to ON: <=50ms |
| From ON to OFF: <=200ms | |
| Power consumption | 3.6W/sq.meter |
| Operating Temperature | -30 ℃ and 60 ℃ |
| Life Time | >=50,000hours |
| Transformer | AC 60V (Suggest to use nominated transformer) |
| Silicon Glue | Neutral (Suggest to use nominated silicon glue to prevent glass corrison) |
|
Service |
Integrated solutions, online consultation, installation guidance, processing customization, after-sales service, etc. |
|
Packaging |
Sea Worthy Strong Wooden Crates |
|
Lead time |
15-20 working days |

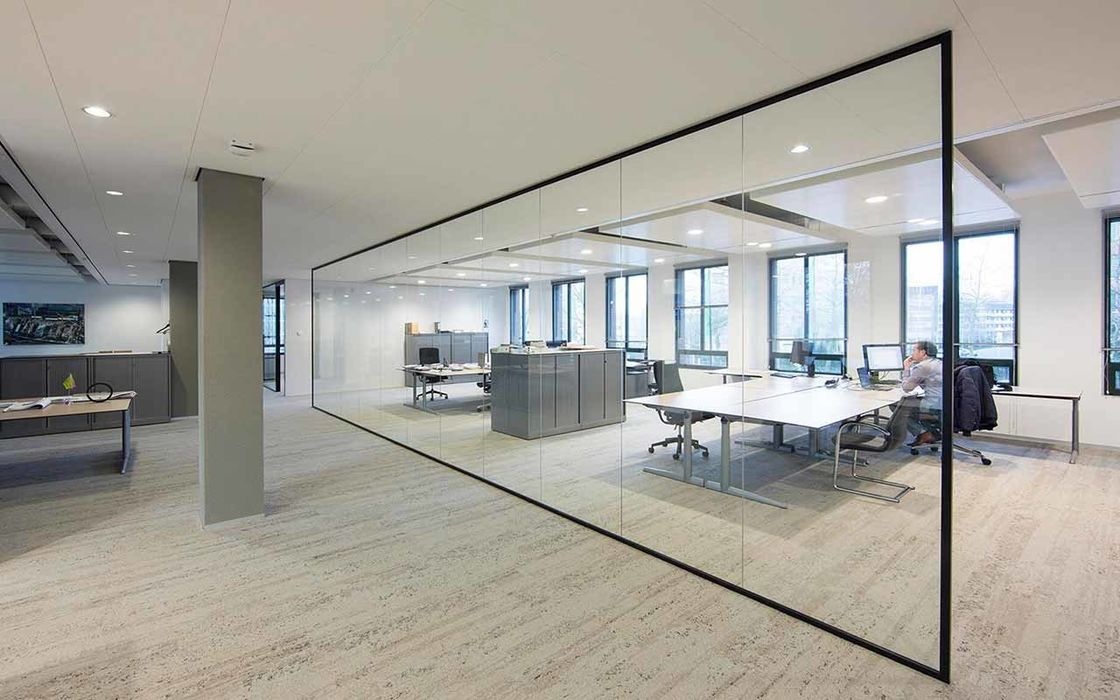

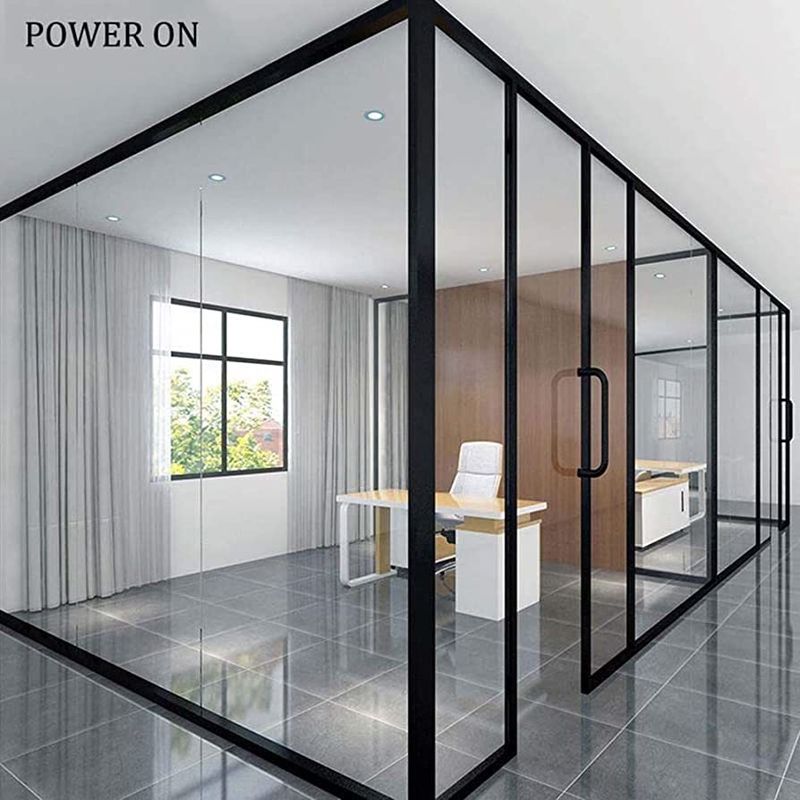

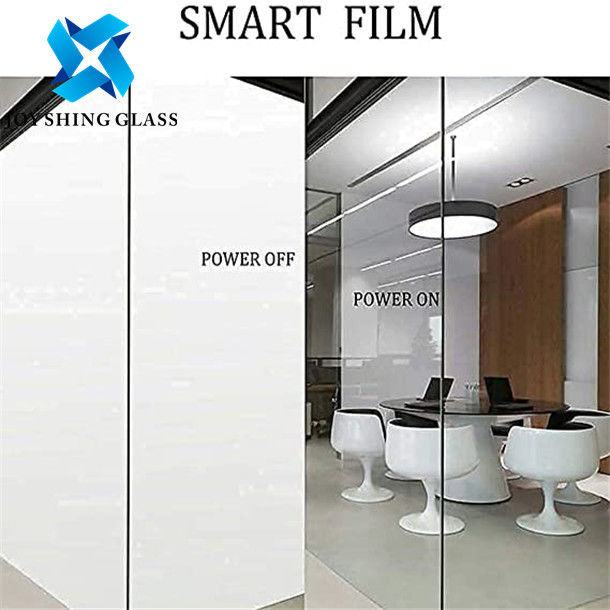

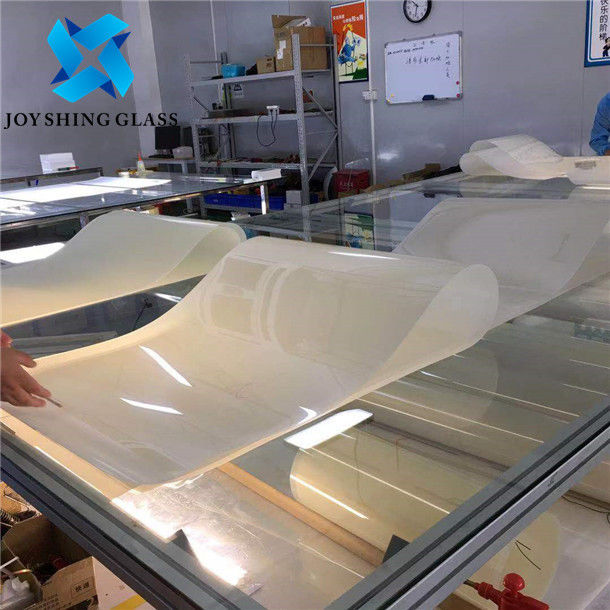

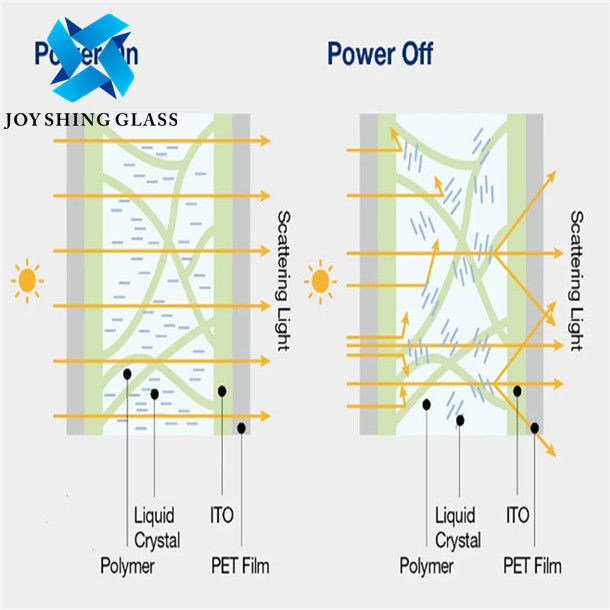

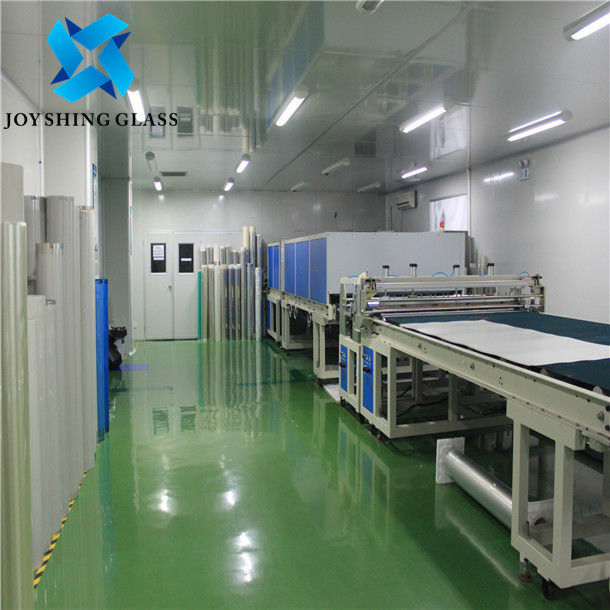

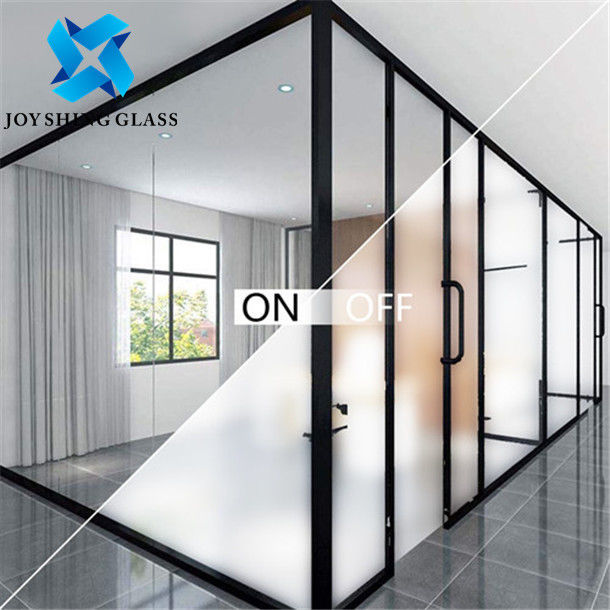

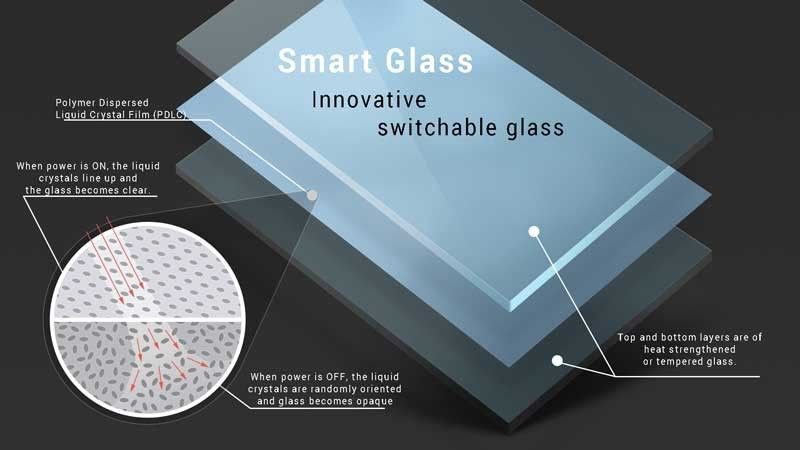

Product photo
