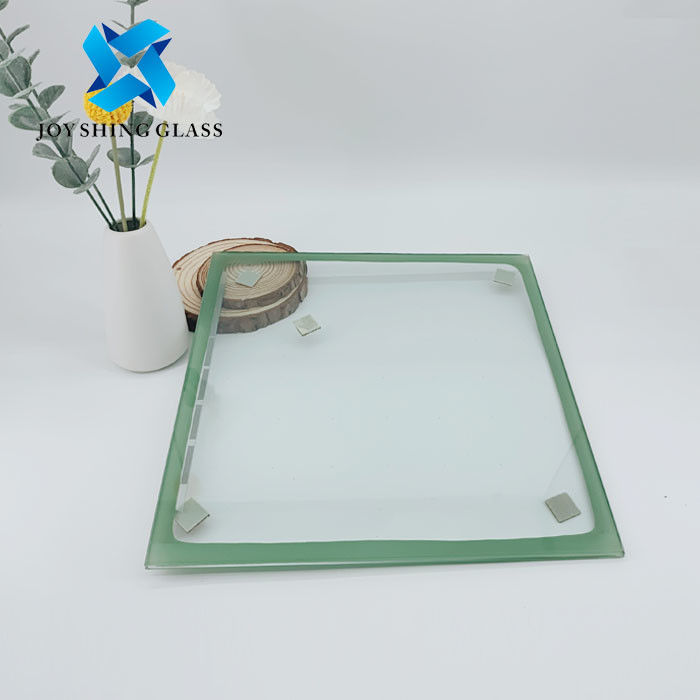

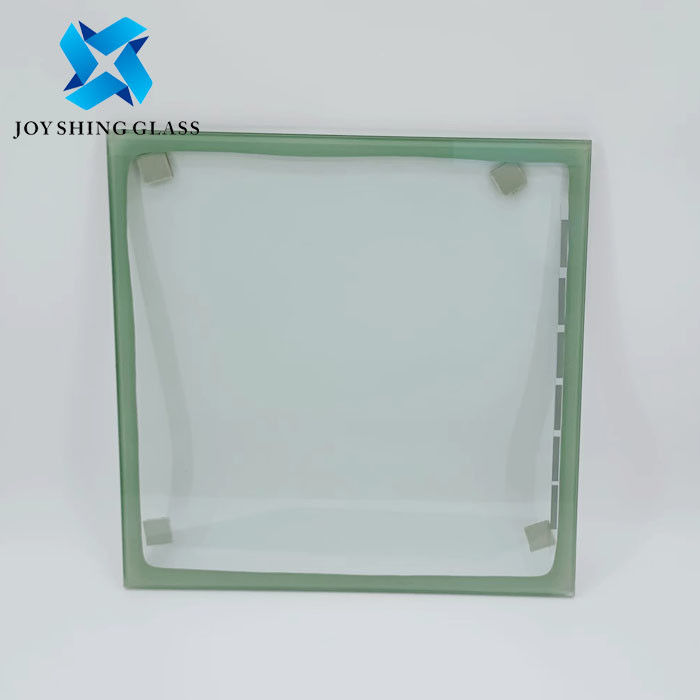

Ultra Clear Vacuum Glass 6.3mm Double Vacuum Glass For Construction
Joy Shing Glass supplies high-quality vacuum glass, which is a new generation of energy-saving building glass. The structure of 6.3mm ultra clear vacuum glass is 3TL+0.3V+3T, that is, 3mm ultra clear Low-e tempered glass + 0.3mm vacuum layer + 3mm ultra clear tempered glass. Tempered vacuum glass can be used alone, or it can be made into vacuum laminated glass or vacuum insulating glass to achieve better soundproof and heat insulation effects. As professional glass manufacturers, we can customize and process glass to your specifications. Provide integrated energy-saving glass solutions, technical support, installation guidance and other services for your construction projects.
Structure diagram of vacuum glass
Advantages of vacuum glass
1. Joy Shing's vacuum glass adopts a one-step process, without a vacuum hole design, the glass has high flatness, more stable quality, and a service life of up to 35 years, which can continuously save energy and reduce energy.
2. Ultra clear vacuum glass uses ultra-clear tempered glass for high safety strength
3. 6.3mm ultra clear vacuum glass is thinner, lighter, and visually clearer
3. The sound insulation of ultra clear tempered vacuum glass reaches 38 decibels, and the sound reduction effect is good.
4. The U value of Joy Shing tempered vacuum glass is <0.6W/m2·K, which has higher thermal insulation performance, energy saving effect and UV protection effect.
5. Anti-condensation: The dew point of ultra clear vacuum glass is ≤-51℃℃, which can effectively prevent internal condensation and extend the service life of LOW-E film.
Specification
|
Product name
|
Ultra Clear Vacuum Glass
|
|
Shape
|
Rectangle, square, round, etc. customized.
|
|
Glass thickness
|
6.3mm (3TL+0.3V+3T)
|
|
Glass Type
|
Low-E Tempered Glass, Tempered Glass
|
|
Max Size
|
300*300mm to 1500mm*2500mm. Customized |
| Color | Ultra clear. other color available |
|
Vacuum Thickness
|
0.3mm
|
| U value | <0.6W/㎡·K |
|
Warranty
|
25 years
|
|
Sample
|
Available
|
|

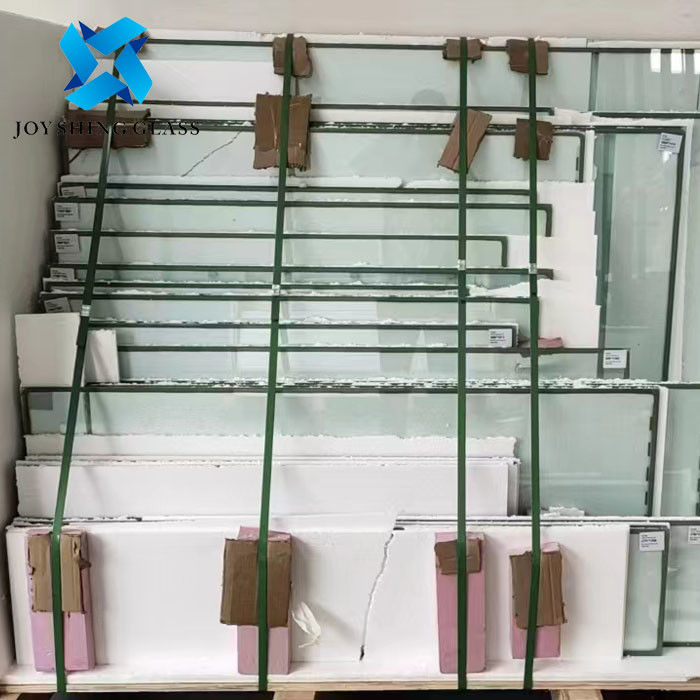

Packaging Details
|
Sea Worthy Strong Wooden Crates
|
| Delivery | Usually 20-30 days, depending on the order quantity. |
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
Application
Ultra clear vacuum glass is suitable for doors, windows and curtain walls in energy-saving buildings and green buildings; freezer manufacturing; high-end residential decoration, commercial building renovation, passive house construction; photovoltaic construction and other fields.
