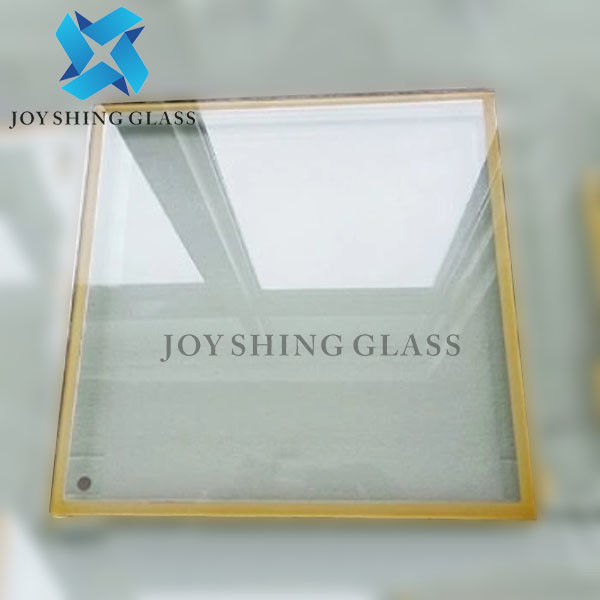

Vacuum Insulating Glass

Vacuum Insulating Glass

Tempered Vacuum Insulating Glass

2 Cavity Vacuum Insulating Glass

Place of Origin:


Brand Name:




Model Number:

Vacuum Glass JY-IV116

Contact Us

Request A Quote
Product Details
Vacuum Insulating Glass
300*300mm To 1500*2500mm
Vacuum Layer Thickness:
Glass Color:
Ultra Clear,clear,grey,blue,etc.
Glass Type:
LOW-E Tempered Glass,tempered Glass,could Be Produced As Your Required
Thermal Insulation Performance:
0, 47W/M2.K-0.71W/M2.K
Payment & Shipping Terms
Minimum Order Quantity
1 wooden box
Packaging Details
Wooden box
Delivery Time
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
Product Description

What is Vacuum Insulating Glass?

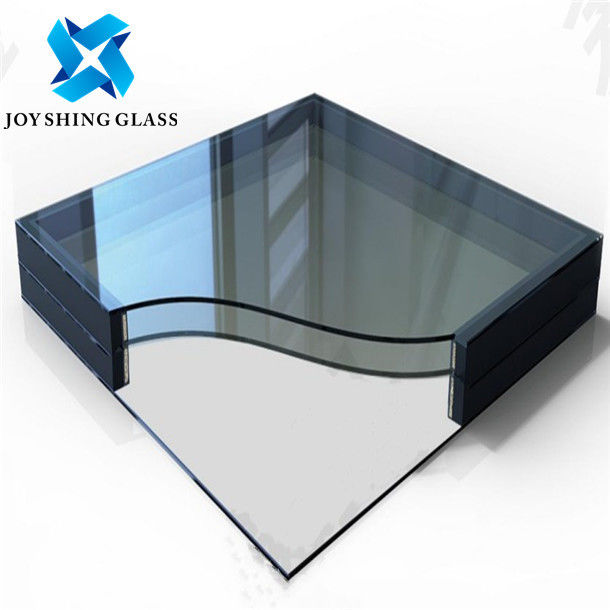

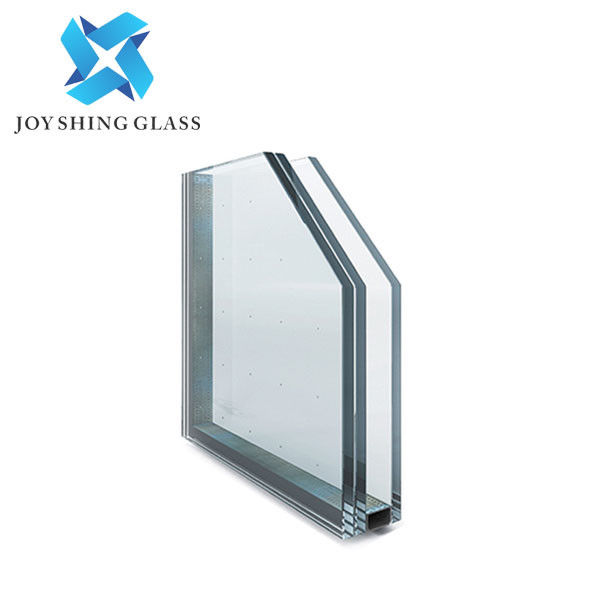

Vacuum insulating glass is a kind of composite vacuum glass, which adopts a three-glass two-cavity structure, a layer of low-e tempered vacuum and a layer of hollow combination, so as to further improve the heat insulation performance.
Joy Shing glass factory direct sales, can produce glass thickness, size, color, composite vacuum glass, etc. according to customer requirements. Our company has rich industry experience and engineering cases, and can provide integrated glass solutions, online technical consultation, and perfect after-sales service for your projects.

Vacuum Insulating Glass 0


Product name
Vacuum Insulating Glass
Glass Type
LOW-E tempered glass,tempered glass,could be produced as your required
Mini size:300*300mm  max size:1500*2500mm Custom
Vacuum layer thickness
Composite process Insulated, laminated,etc.
Lead time

Within 15 days

25 years
Project solution
Total solution for projects, Others
Packaging Details
Sea Worthy Strong Wooden Crates

Payment Terms

30% deposit, and balance before shipment by T/T


Glass structure Recommended area low-e glass type U Value W/m²· K SHGC Visible Light db
Transmittance % Reflectivity%
5T+12A+5TL+V+5T cold single silver 0.39 0.50 71.48 20.62 40
hot double silver 0.37 0.39 64.23 17.12


5T: 5mm tempered glass ; 5TL: 5mm Low-e tempered glass ;V: vacuum layer; 12A: 12mm argon layer


Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.


Advantages of vacuum insulating glass

1. Insulation:

The vacuum layer effectively isolates air convection and heat transfer, and the Low-E glass significantly reduces the radiation heat transfer between two pieces of glass.The thermal insulation performance of vacuum glass is about 6-8 times that of single glass, and 4-6 times that of insulating glass


Vacuum Insulating Glass 1

2. Anti-condensation:

Due to the high heat insulation performance of vacuum glass, it is difficult to dissipate the indoor heat, and the surface temperature of the glass is higher than the dew point, so it is not easy to generate condensation.

Vacuum Insulating Glass 2

3. Low noise:

The vacuum layer of the vacuum glass effectively isolates the sound transmission. The sound insulation of single vacuum glass can reach 39dB, and the sound insulation of composite vacuum glass can reach 42dB.


Product photo

Vacuum Insulating Glass 3


Application fields of vacuum glass

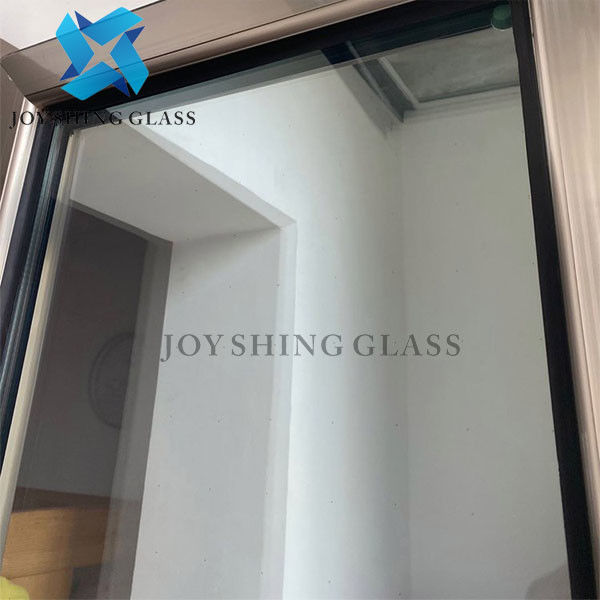

Low-e Vacuum glass is widely used in many fields such as building energy saving, doors and windows, library, transportation, curtain wall, freezer, wine cabinet, solar building, etc. etc.

Vacuum Insulating Glass 4


Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc.

More product options
Vacuum Insulating Glass 5


Vacuum Insulating Glass 6
Vacuum Insulating Glass 7
Vacuum Insulating Glass 8Vacuum Insulating Glass 9Vacuum Insulating Glass 10
Vacuum Insulating Glass 11
Vacuum Insulating Glass 12
Vacuum Insulating Glass 13
Vacuum Insulating Glass 14
Q: What is the MOQ?
A: Generally, there is no MOQ for processed glass, but if you want to receive the best price, the bigger quantity, the better price.
Q: Can I have a small sample to verify the quality?
A: Sure, we welcome samples to be tested and checked for quality.
Q: Can I visit your factory?
A: Yes, we welcome all of the customers to visit our factory when you have real requirements, we will take you to each of our production lines, and discuss orders in our office.
Q: Do you offer a guarantee for the products?
A: Yes, generally, we offer 10 years warranty for processing glass based on your normal uses, we advise you use it in the right way can keep your product's service life a long time .
Q: How do you control the quality of your products?
A: We have standard management in the factory based on the ISO system, and train our staff regularly, our production department will choose high-quality materials for glass strictly, for finished excellent products. And we have QC for each process, once find any problem, we will replace the glass, to make sure every piece of glass go to the customer's warehouse is in good condition.
