Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Float Glass JY-F116
Contact Us
Ultra Clear Glass 3mm to 25mm Low Iron Float Glass
Ultra clear glass, also known as ultra clear float glass and low iron float glass, is a high-quality glass material with excellent transparency and optical properties. Joy Shing Glass supplies high-quality ultra clear glass, and the price is more favorable if purchased wholesale. We can cut to size, deep process glass, etc. as required.
Specification
| Thickness (mm) |
Visible Light Transmittance | Visible Light Reflectivity | Solar Radiant Coefficient | Shading Coefficient | U Values | Sound Insulation | UV Penet ration | ||||||
| Direct Penetration | Reflectivity | Absorb | Total Penetration | Short Wave | Long Wave | Total | (W/m²K) | Rm(dB) | Rw(dB) | Architectural Series | |||
| 3 | 91.6% | 8% | 90% | 8% | 1% | 91% | 1.05 | 0.01 | 1.05 | 5.8 | 26 | 30 | 76% |
| 3.2 | 91.5% | 8% | 90% | 8% | 2% | 91% | 1.03 | 0.01 | 1.05 | 5.8 | 26 | 30 | 75% |
| 4 | 91.4% | 8% | 90% | 8% | 2% | 91% | 1.03 | 0.01 | 1.05 | 5.8 | 27 | 30 | 73% |
| 5 | 91.3% | 8% | 90% | 8% | 2% | 90% | 1.03 | 0.01 | 1.03 | 5.8 | 29 | 32 | 71% |
| 6 | 91.1% | 8% | 89% | 8% | 3% | 90% | 1.02 | 0.01 | 1.03 | 5.7 | 29 | 32 | 70% |
| 8 | 91.0% | 8% | 88% | 8% | 4% | 89% | 1.01 | 0.01 | 1.02 | 5.7 | 31 | 34 | 68% |
| 10 | 90.6% | 8% | 88% | 8% | 4% | 89% | 1.01 | 0.02 | 1.02 | 5.6 | 33 | 36 | 66% |
| 12 | 90.4% | 8% | 87% | 8% | 5% | 88% | 1.00 | 0.02 | 1.01 | 5.5 | 34 | 37 | 64% |
| 15 | 90.1% | 8% | 86% | 8% | 6% | 87% | 0.99 | 0.02 | 1.00 | 5.5 | 35 | 38 | 61% |
| 19 | 89.7% | 8% | 84% | 8% | 7% | 86% | 0.97 | 0.02 | 0.99 | 5.5 | 37 | 40 | 59% |
| 22 | 89.6% | 8% | 82% | 8% | 9% | 85% | 0.95 | 0.02 | 0.97 | 5.5 | 38 | 43 | 58% |
| 25 | 89.0% | 8% | 81% | 8% | 9% | 84% | 0.93 | 0.02 | 0.95 | 5.5 | 39 | 45 | 56% |
Features of Ultra Clear Glass
1. High safety, low self-explosion rate
The raw material of ultra clear glass contains less impurities such as NiS. Therefore, compared with ordinary float glass, ultra clear glass has a more uniform composition and is more stable in physical properties than ordinary glass. This greatly reduces the chance of self-explosion after tempering.
2. Color consistency
Ultra clear float glass has a low iron content and absorbs less green and purple-red bands of visible light than clear float glass, ensuring color consistency. Objects can be presented clearly and realistically.
3. High visible light transmittance and good permeability
The light transmittance of 6mm ultra clear low iron float glass is greater than 91%, with crystal-clear crystal-like quality, suitable for decoration and display cabinets. Make the exhibits more clear and highlight their true appearance.

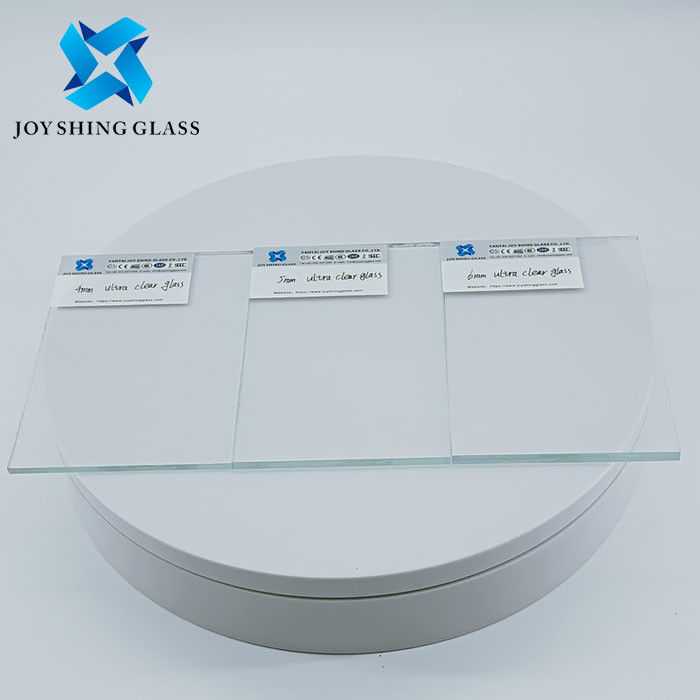

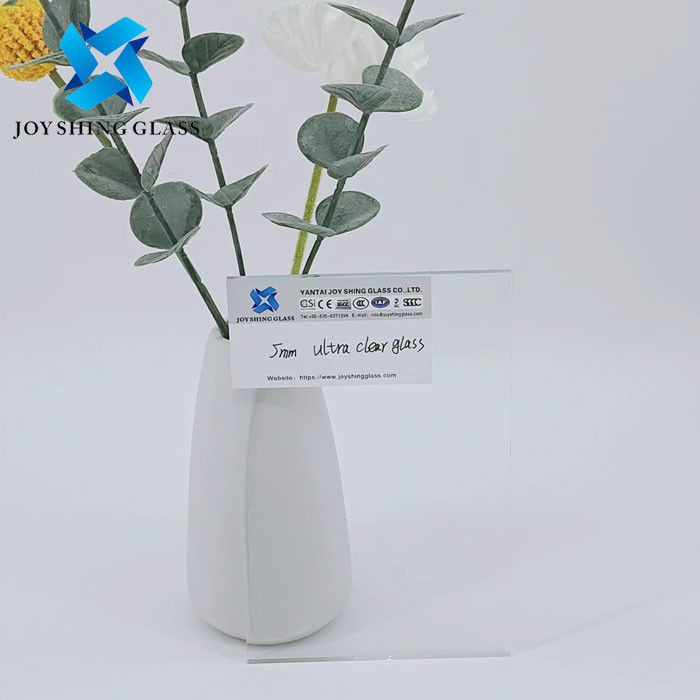

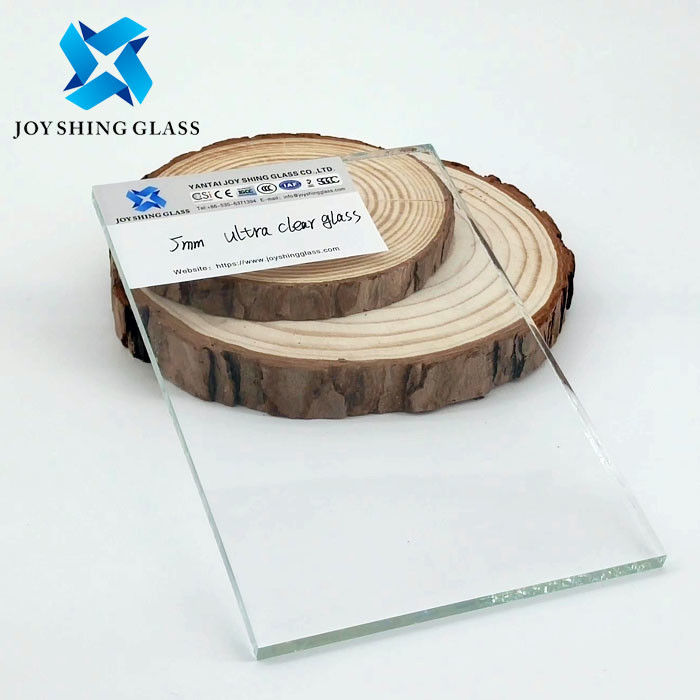

Product photo
Ultra Clear Glass VS Clear Glass
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc.
