Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Float Glass JY-F117
Contact Us
Clear Glass 2mm to 22mm Thick Clear Float Glass Processing Manufacturer
Clear glass, also known as clear float glass. It is made of high-quality silica sand, soda ash and other raw materials. It is melted at high temperature in the furnace. The glass liquid continuously flows from the furnace to the metal tin liquid surface and floats on the metal tin liquid surface. It is spread into a uniform thickness and is heated by the fire. The polished glass ribbon is separated from the molten metal after cooling and hardening, and then annealed and cut to become a transparent colorless flat glass. The high-quality clear float glass supplied by Joy Shing Glass Manufacturer has good flatness, uniform thickness and small optical deformation, making it the best choice for civil buildings.
Advantages of Joy Shing Clear Float Glass
1. High quality and easy to process, with a cutting rate of more than 85%.
2. Excellent optical properties, high light transmittance and small optical deformation
3. Complete specifications, can be cut according to size to reduce cutting loss. The thickness of clear float glass ranges from 2mm to 22mm, and the conventional sizes are 1830*2140mm, 1830*2440mm, 2440*3300mm, 2140*3300mm, 3660*2140mm, 3660*2440mm, etc.
4. Selected materials and meet environmental protection requirements
5. More than 10 years of manufacturing experience.
6. Safe packaging: Separate the glass with cork pads to avoid breakage. Fumigation-free plywood wooden boxes reinforced with iron straps and wooden blocks to ensure safe transportation of products.
7. Competitive price. If wholesale purchase price is more favorable.
Specification
|
Thickness mm |
Visible Light Transmittance | Visible Light Reflectivity | Solar Transmittance | Solar Reflectivity | Visible-Infrared Transmittance | Ultraviolet Transmittance |
| 2 | 90.69 | 8.3 | 87.22 | 7.9 | 84.15 | 83.44 |
| 2.5 | 90.47 | 8.3 | 86.14 | 7.8 | 82.31 | 81.97 |
| 2.8 | 90.34 | 8.3 | 85.51 | 7.7 | 81.22 | 81.15 |
| 3 | 90.25 | 8.3 | 85.09 | 7.7 | 80.51 | 80.62 |
| 3.2 | 90.17 | 8.3 | 84.67 | 7.7 | 79.80 | 80.11 |
| 4 | 89.82 | 8.3 | 83.04 | 7.6 | 77.03 | 78.18 |
| 5 | 89.39 | 8.2 | 81.07 | 7.4 | 73.71 | 76.02 |
| 6 | 88.96 | 8.2 | 79.17 | 7.3 | 70.54 | 74.08 |
| 8 | 88.31 | 8.1 | 76.51 | 7.1 | 66.14 | 70.60 |
| 10 | 87.47 | 8.1 | 73.61 | 6.9 | 61.56 | 67.15 |
| 12 | 86.25 | 8.0 | 68.53 | 6.6 | 53.09 | 66.23 |

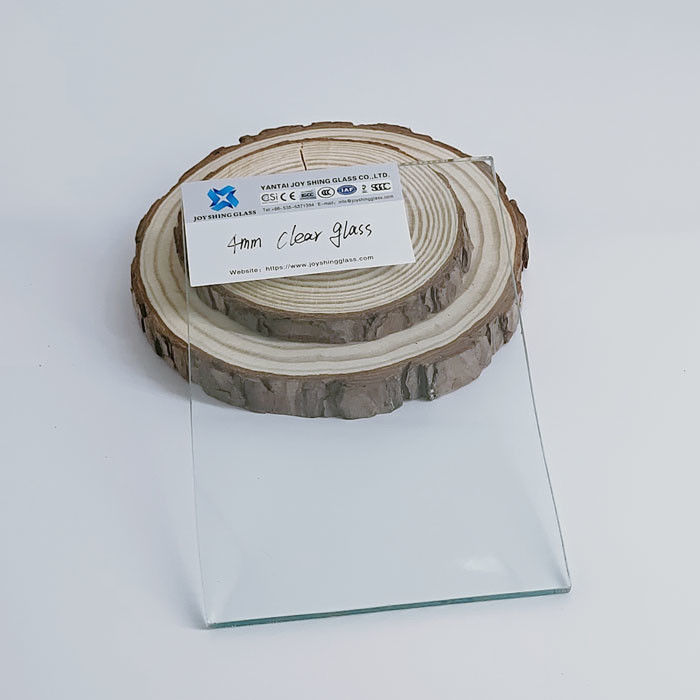

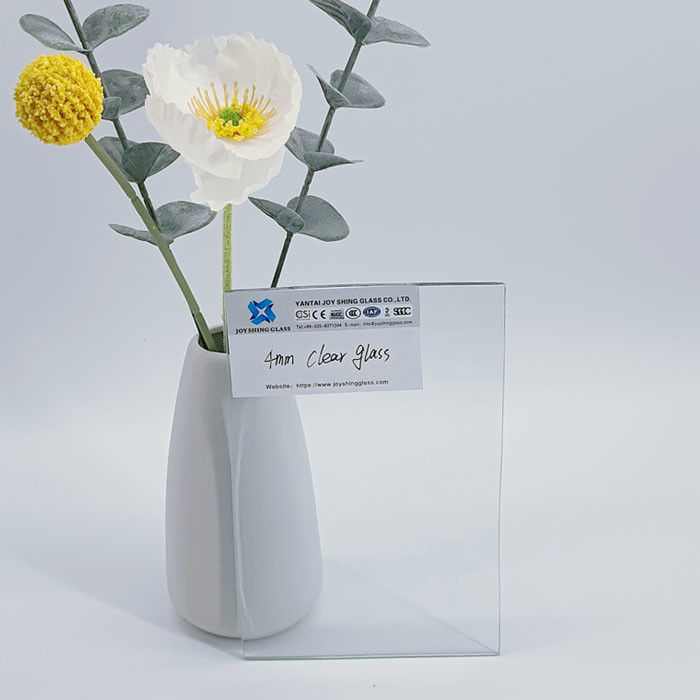

Product photo

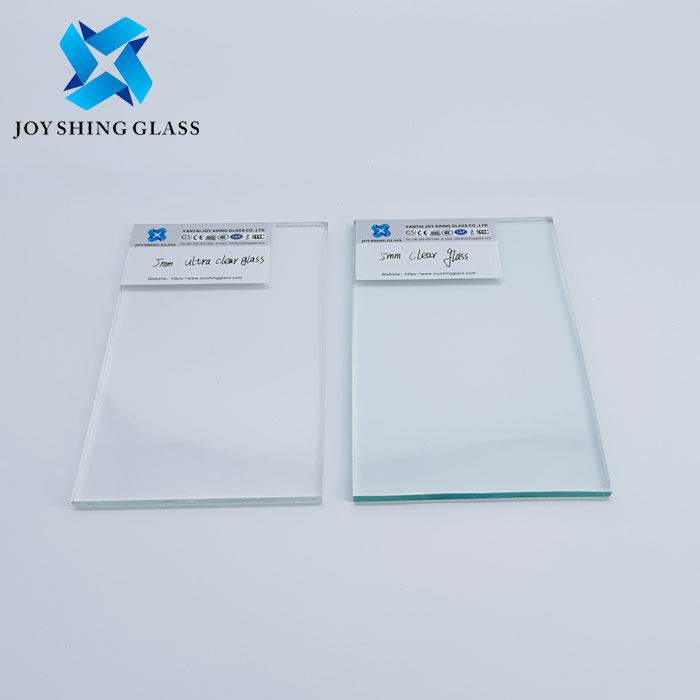

Ultra Clear Glass VS Clear Glass
