Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Solar Glass JY-S107
Contact Us
Custom TCO Conductive Glass,Transparent Conductive Oxide Coated Glass
TCO glass, that is, transparent conductive oxide coated glass, is coating a layer of transparent conductive oxide film uniformly on the surface of float glass by physical or chemical coating technologies. It has high visible light transmittance and high conductivity.
Joy Shing TCO series have suitable square resistance and haze, which can optimize the transmittance of response spectrum in different bands for different solar cells and match customer needs, so as to maximize the generating efficiency.
Specification
| Name | TCO Conductive Glass |
| Model | JY-S107 |
| Size | custom size |
| Thickness(mm) | 2-3.2 |
| Light Transmitttance% | 80-86 |
| Coating surface reflectivity% | ≤12 |
| Haze% | ≤15 |
| Square Resistance(Ω/□) | 4-18 |
| Delivery time |
15 working days |
|
Warranty |
5 years |
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
|
Packaging |
Sea Worthy Strong Wooden Crates Use protective paper film and soft wood pad for separate glass avoid breaking. |
Advantages of TCO conductive glass
1. Ultra clear glass has advanced technology, stable quality and scale advantages.
2. Good product performance (light transmittance, square resistance, haze, HALL mobility, carrier concentration and other main performance parameters can be optimized and adjusted according to customer needs);
3. Its color is uniform and neutral, which is more suitable for BIPV.
4. Stable supply, rapid product iteration according to customer needs

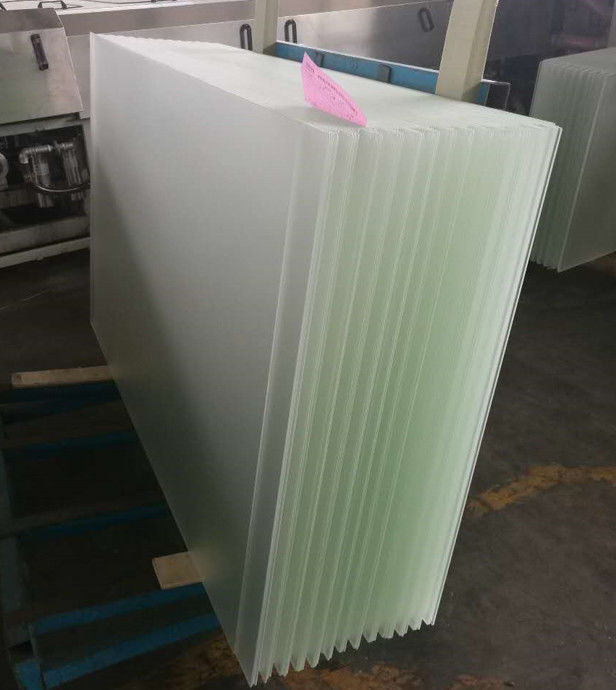

Product photo
