Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE
Model Number:
Switchable Smart Glass JY-SS119
Contact Us
Self Adhesive PDLC Smart Glass is a new type of photoelectric glass. Users can switch the transparency and opacity of the glass by controlling the current. So it is also called switchable glass.The glass itself has all the characteristics of safety glass, and at the same time has the function of privacy protection.

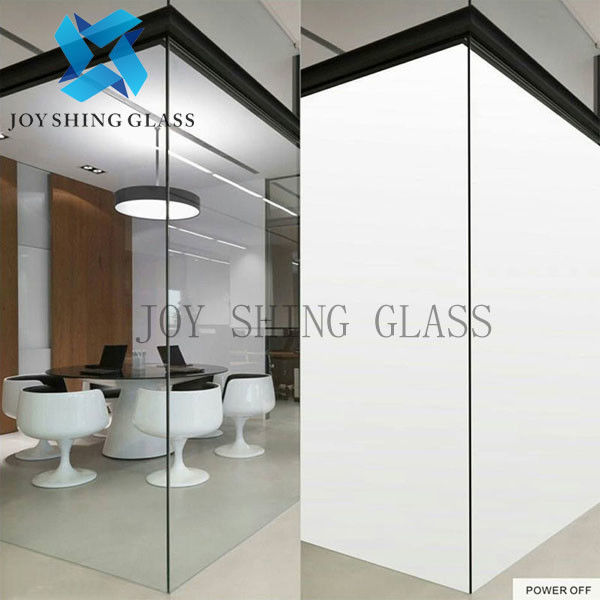

The status display after the Self Adhesive PDLC Smart Glass is powered on/off:
Specification
| Product Name | Self Adhesive PDLC Smart Glass |
| Model | JY-SS119 |
| Max Size | 1800mm*3200mm,customized |
|
Thickness |
1mm-19mm,4+4mm/5+5mm / 6+6mm/8+8mm,customized |
| Glass color | Clear,white |
| Power consumption | 3.6W/sq.meter(low energy consumption) |
| Transmittance | 78%+1% |
| Shape | Flat/bent |
|
UV Block |
99% |
|
Power on |
Transparent |
| Power off |
Opaque |
|
Operating voltage |
48V AC |
|
Operating temperature |
-30℃-60℃ |
|
Sample |
Free samples available |
|
Packaging |
Sea Worthy Strong Wooden Crates High safety for upload, unload, and transportation |
|
Project Solution |
Total solution for projects |
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
|
Lead time |
15-20 working days |
|
Warranty |
5 years |
Feature
1. Safety: Self Adhesive PDLC Smart Glass is made of tempered glass for high strength. Even if the glass is broken, no sharp fragments will be produced, reducing personal injury.
2. Privacy protection: When the smart glass is powered off, particles scatter to atomize the glass, thus meeting the needs of privacy protection and projection.
3. Smart glass can block 99% of ultraviolet rays, energy saving and heat insulation.
Application

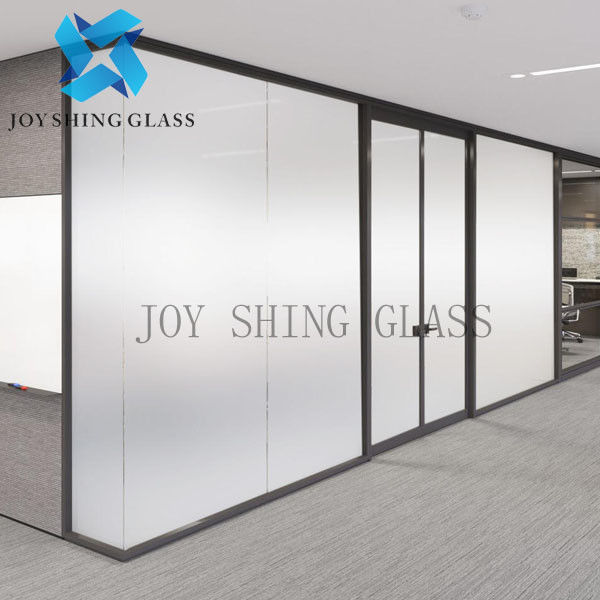

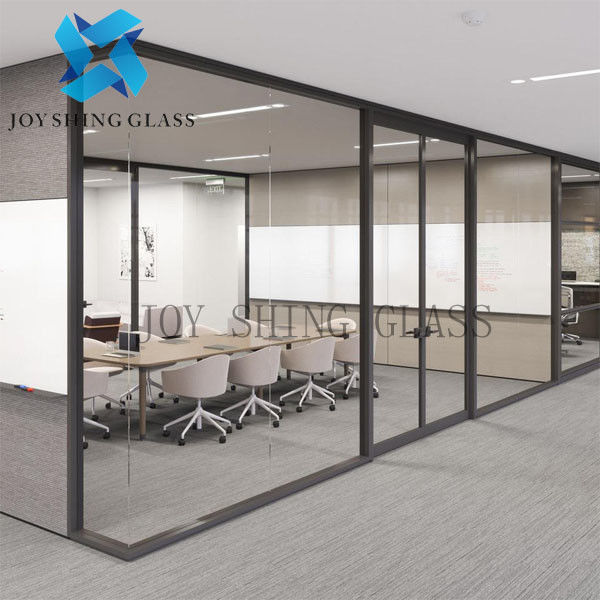

Smart switchable glass is widely used in doors and windows in offices, meeting rooms, hotels, bedrooms, bathrooms, banks, etc.
