Triple Insulated Glass 3mm 4mm 5mm 6mm Low-E Tempered Glass Panels

Triple Insulated Glass 3mm 4mm 5mm 6mm Low-E Tempered Glass Panels

Triple Insulated Glass 3mm

Low-E Tempered Triple Insulated Glass

Low-E Tempered Glass Panels

Place of Origin:

CHINA

Brand Name:

JOYSHING

Certification:

CE,ISO, CSi,SGCC

Model Number:

Vacuum Glass JY-I116

Contact Us

Request A Quote
Product Details
Name:
Triple Insulated Glass
Model:
JY-I116
Size:
1440mm*1660mm,Custom
Structure:
Hollow
Glass Thickness:
3mm,4mm,5mm,6mm,8mm,etc
Glass Color:
Light Blue, Ford Blue, Dark Blue,green, Bronze,etc.
Air Cavity Depth:
6mm,etc
Thickness:
3+6A+3mm,4+6A+4mm,5+6A+5mm,6+6A+6mm,etc.
Shape:
Flat,Curved
Warranty:
5 Years
Payment & Shipping Terms
Minimum Order Quantity
1 wooden box
Price
Usd/1-999/sqm
Packaging Details
Wooden box
Delivery Time
1-2weeks
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
3000sqm/day
Product Description

Triple Insulated Glass 3mm 4mm 5mm 6mm Low-e Tempered Glass Panels



Triple insulated glass is composed of three pieces of glass, with a certain space separated by an aluminum frame filled with high efficiency molecular sieve, and the edge of the glass component is sealed with high strength sealant.With better sound insulation, heat insulation, heat preservation performance.



The minimum thickness of the gas interlayer of the insulating glass should not be less than 6mm, otherwise it will not function as thermal insulation. However, the thickness should not be too large, if it is too large to make the insulated glass too thick. The gaps of the insulated glass are currently divided into 6, 9, 12, 16, 19,21,25mm.



Specification

Product name
Triple Insulated Glass
Model
JY-I116
Size
1440mm*1660mm,Custom
Thickness
3+6A+3mm,4+6A+4mm,5+6A+5mm,6+6A+6mm,etc.

could be produced as your required

Structure
Hollow

Single Glass thickness

3mm,4mm,5mm,6mm,8mm,etc
Glass Color
Light blue, Ford blue, dark blue,green, bronze,etc.
Spacer width
Aluminum 6mm
Lead time

Within 15 days

Warranty
5 years
Insulating Gas
Argon
Packaging Details
Sea Worthy Strong Wooden Crates
High safety for upload, unload, and transportation

Payment Terms

30% deposit, and balance before shipment by T/T


Above data are for reference only. parameters for a specific product needs to be calculated separately.

For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.



Advantages of Triple Insulated Glass
1. High safety performance: 1.5 times stronger shocking resistance than common glass.

2. Heat insulation: In addition to sealing dry air in the middle of two layers of glass, insulating glass should also be coated with a layer of special metal film with good thermal performance on the air layer side of the middle of the outer glass, so as to achieve greater heat insulation effect.

3. Anti-condensation and reducing cold radiation: Inside the insulated glass, there is a desiccant that can absorb water molecules, and the gas is dry; when the temperature is lowered, condensation does not occur inside the insulated glass, and the dew point temperature of the outer surface of the glass also rises.

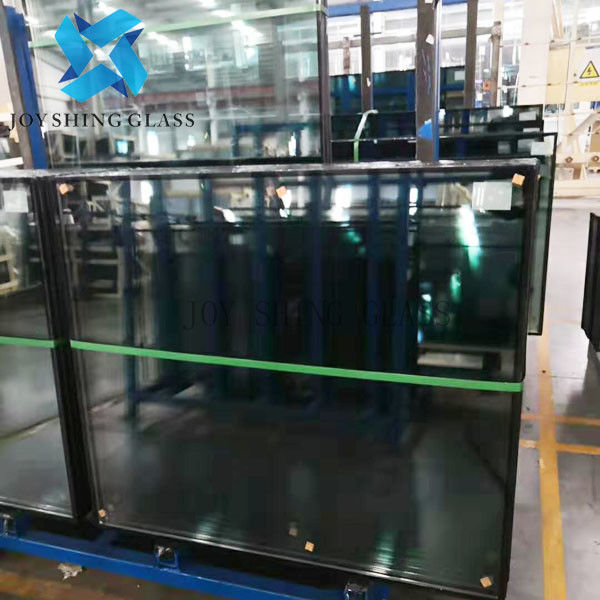

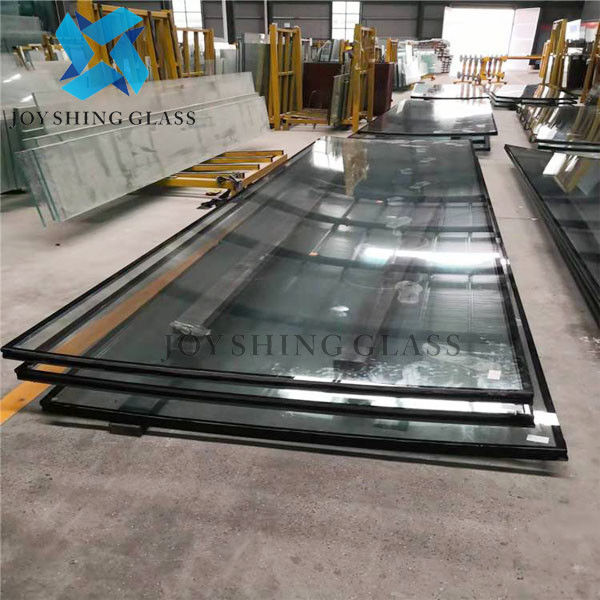

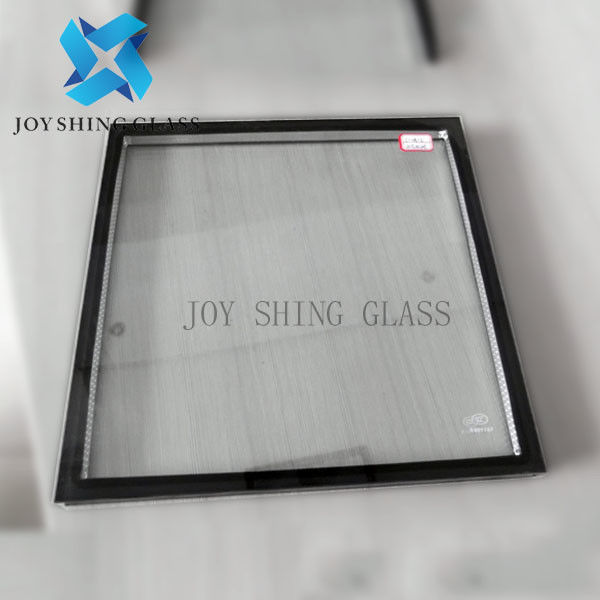

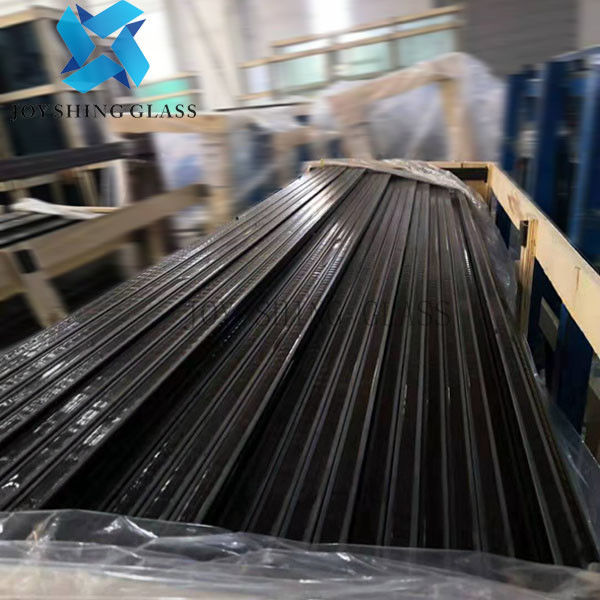

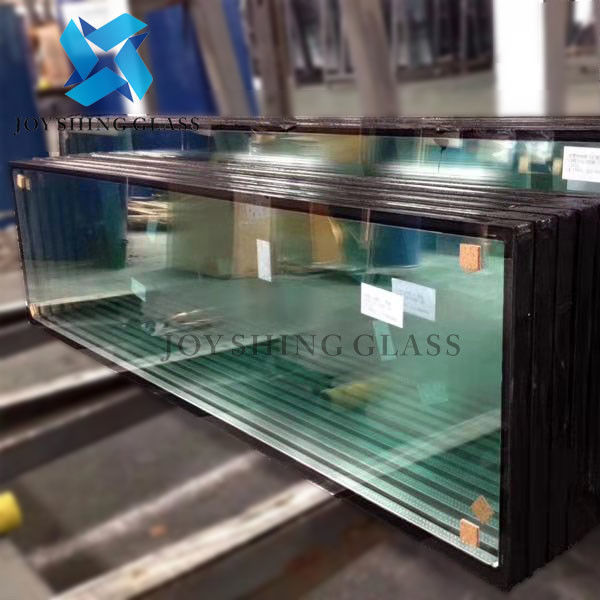

Product photo

We can provide various types of safety insulated glass according to customer requirements: tempered insulated glass (high hardness of glass), laminated insulated glass (high safety), LOW-E insulated glass (energy saving, corrosion resistance) and so on

Triple Insulated Glass



Application Of Triple Insulated Glass

Triple insulated glass is widely used in residences, restaurants, hotels, office buildings, schools, hospitals, shops and other occasions that require indoor air conditioning. It can also be used for doors and windows of trains, automobiles, ships, and freezers, as well as special buildings that require constant temperature and humidity, such as computer rooms, precision instrument workshops, and chemical plants.​

Triple Insulated Glass 3mm 4mm 5mm 6mm Low-E Tempered Glass Panels 1

Triple Insulated Glass 3mm 4mm 5mm 6mm Low-E Tempered Glass Panels 2

Triple Insulated Glass 3mm 4mm 5mm 6mm Low-E Tempered Glass Panels 3

Triple Insulated Glass 3mm 4mm 5mm 6mm Low-E Tempered Glass Panels 4Triple Insulated Glass 3mm 4mm 5mm 6mm Low-E Tempered Glass Panels 5Triple Insulated Glass 3mm 4mm 5mm 6mm Low-E Tempered Glass Panels 6

Triple Insulated Glass 3mm 4mm 5mm 6mm Low-E Tempered Glass Panels 7

Triple Insulated Glass 3mm 4mm 5mm 6mm Low-E Tempered Glass Panels 8


FAQ

Q: What is the MOQ?
A: Generally, there is no MOQ for processed glass, but if you want to receive the best price, the bigger quantity, the better price.

Q: Can I have a small sample to verify the quality?
A: Sure, we welcome samples to be tested and checked for quality.

Q: Can I visit your factory?
A: Yes, we welcome all of the customers to visit our factory when you have real requirements, we will take you to each of our production lines, and discuss orders in our office.

Q: Do you offer a guarantee for the products?
A: Yes, generally, we offer 10 years warranty for processing glass based on your normal uses, we advise you use it in the right way can keep your product's service life a long time .

Q: How do you control the quality of your products?
A: We have standard management in the factory based on the ISO system, and train our staff regularly, our production department will choose high-quality materials for glass strictly, for finished excellent products. And we have QC for each process, once find any problem, we will replace the glass, to make sure every piece of glass go to the customer's warehouse is in good condition.
