20mm Fireproof Tempered Glass Heat Resistance Toughened Fire Rated Glass
Fireproof tempered glass is a special glass that has been specially treated to meet the requirements of the corresponding fire resistance grade. Can withstand high temperatures and maintain its structural integrity during a fire. Joy Shing Glass factory direct sales, can produce thickness, size, shape or further processing into laminated safety fireproof glass, insulated glass, etc. according to requirements.
Features of fireproof tempered glass
1. High strength and impact resistance: several times that of float glass at the same thickness.
2. Strong fire resistance: Joy Shing fireproof tempered glass has strong fire resistance, which can effectively prevent the spread of flames and smoke.
3. High transparency: allows natural light to pass through and provides clear visibility for easy observation.
4. Safety: When the glass is broken, it will be broken into small obtuse particles to reduce the damage.
5. Fire-resistant glass has different fire-resistant grades, which can be selected according to needs.
Specification
| Product Name | Fireproof Tempered Glass |
| Model | JY-FT101 |
| Brand |
Joy Shing |
| Dimensions(mm) |
3300*2140mm,3300*2440mm,3660*2140mm,3660*2440mm,2440*1830mm, 2440*1650mm,2140*1650mm,2200*1650mm, other size upon request |
| Thickness(mm) | 20mm,can be produced upon request |
| Shape | Rectangular, round, square or custom shapes |
| Density(g/cm3)(at 25ºC) | 2.23±0.02 |
| Co-efficient of expansion(α)(20-300ºC) | 3.3±0.1*10-6 |
| Softening Point(ºC) | 820±10 |
| Identical temperature difference(K) | 100 >300(Strengthening type) |
| Thermal shock resistance(K) | ≥125 |
| Max working temperature(ºC) | ≥450 |
| Refractive(nd) | 1.47384 |
| Light transmission | 92%(thickness≤4mm) 91%(thickness≥5mm) |
| Processing | Pre-cut formats, edge processing, tempering |
|
Packaging Details |
Use protective paper film and soft wood pad for separate glass avoid breaking. Sea Worthy Strong Wooden Crates All glass are packed in strong wooden crates,nailed and strapped. |
|
Sample |
Free samples available |
|
Warranty |
10 years |
|
Delivery |
15-20 working days |
|
Payment Terms |
30% deposit, and balance before shipment by T/T |

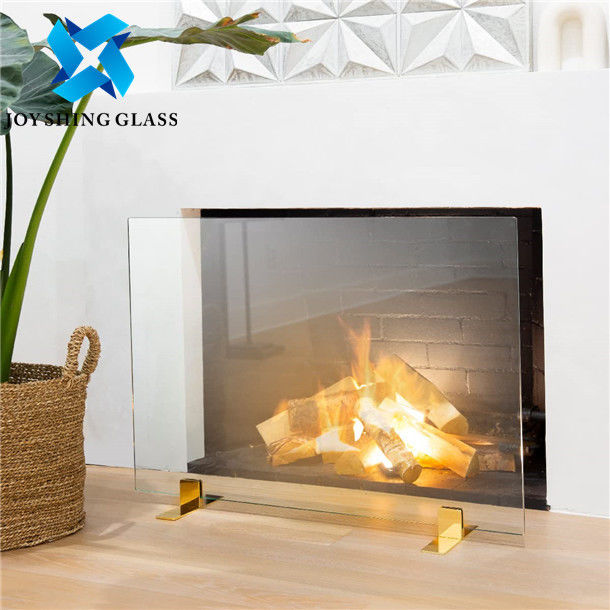

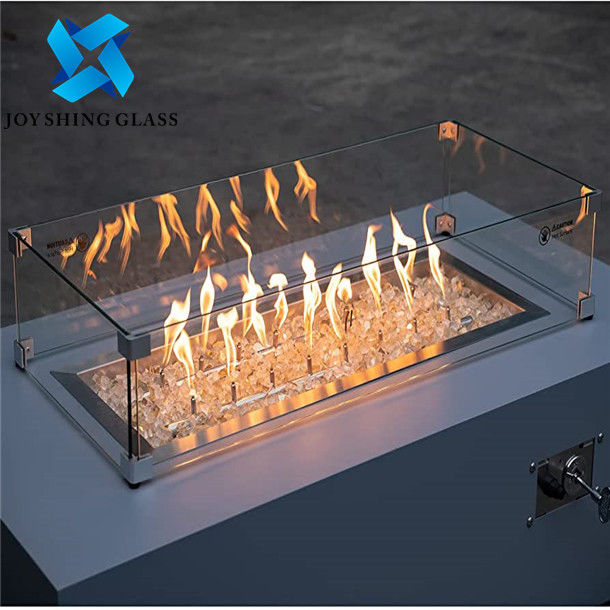

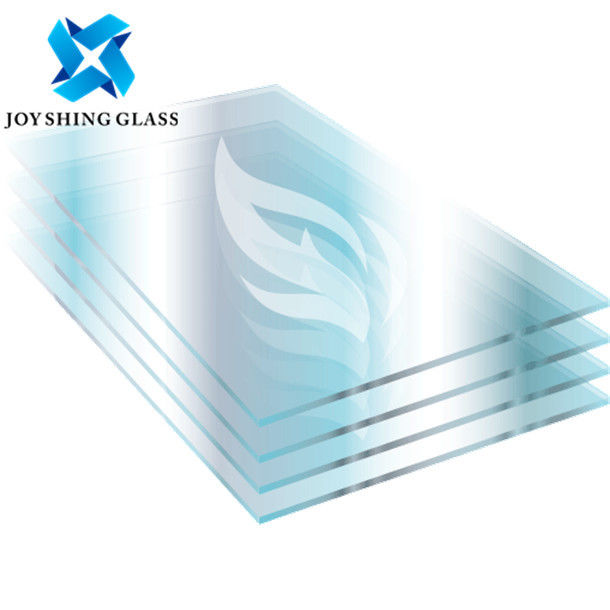

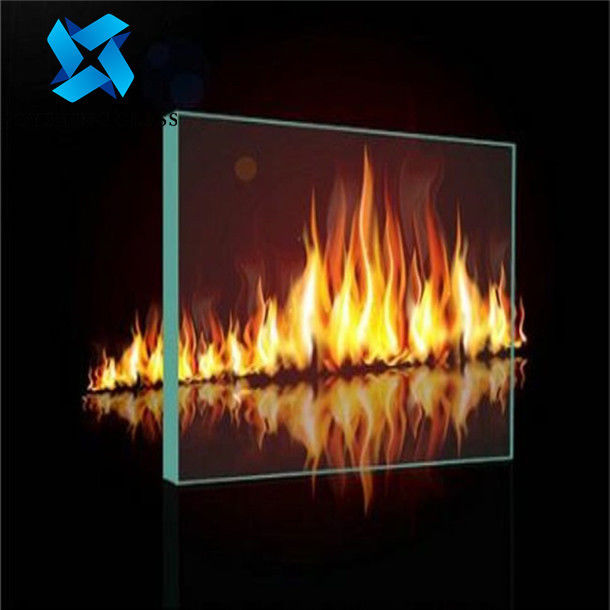

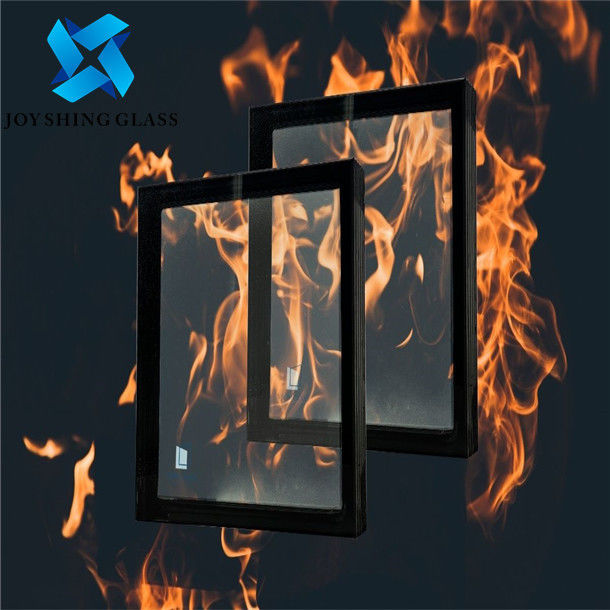

Product photo
Application
Joy Shing fireproof tempered glass integrates strength, durability, transparency and excellent fire resistance. It is widely used in:
1. Commercial buildings such as hotels, shopping malls, and office buildings
2. Residential doors and windows, partition walls, etc.
3. Hospitals, schools, airports and other public facilities
4. Industrial environments with high fire risks, such as factories and warehouses, etc.
