Custom Large Size Low-e Tempered Insulated Glass For Building
Joy Shing Glass customizes large size low-e tempered insulated glass, filled with argon gas. Make the glass have better heat insulation, sound insulation and high strength. As a professional glass manufacturer, we can customize and further process glass as required, providing integrated glass solutions for your building projects. If you are looking for high-quality glass suppliers and processors, feel free to contact us.
Specification
|
Product name
|
Low-e Tempered Insulated Glass
|
|
|
Model
|
JY-I136
|
|
|
Size
|
6500*3300mm
|
max size:22000mm*3300mm,customized |
|
Structure
|
15TL+18AR+15T
|
Customized |
| Total Thickness | 48mm. | Can be produced on request |
|
Single Glass thickness optional |
15mm
|
4mm,5mm,6mm,8mm,10mm,12mm,,19mm,etc. |
|
Glass Color
|
Ultra clear
|
Clear,Grey,Blue,Green,etc. Optional |
|
Spacer width
|
18mm
|
6mm,9mm,12mm,15mm, 16mm,22mm,etc. |
| Gas filled | Argon | Air or other inert gas |
| Glass Type | low-e glass, clear glass, ultra clear glass, tempered glass, laminated glass,etc. | |
| Lead time |
Generally 15-20 days, depending on the order quantity |
|
|
Warranty
|
5 years
|
|
|
Packaging Details
|
Sea Worthy Strong Wooden Crates
|
|
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
|
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.
Features of Low-e Tempered Insulated Glass
1. Low-e tempered insulating glass has high safety. The glass has been tempered and has strong impact resistance and is not easily broken. Even if it is broken, it will not produce sharp fragments, reducing harm to the human body.
2. Energy saving: Low-e tempered insulated glass has a high shading coefficient, low U-value, and good heat insulation.
3. Sound insulation: low-e tempered insulated glass can reduce noise by more than 30 decibels. And the gas filled argon further improves the sound insulation and energy-saving effects.
4. Low-e tempered insulated glass has good lighting and excellent anti-condensation function.

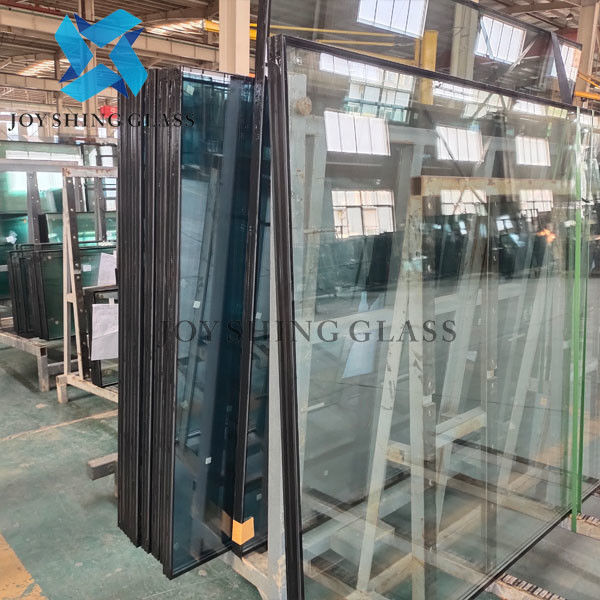

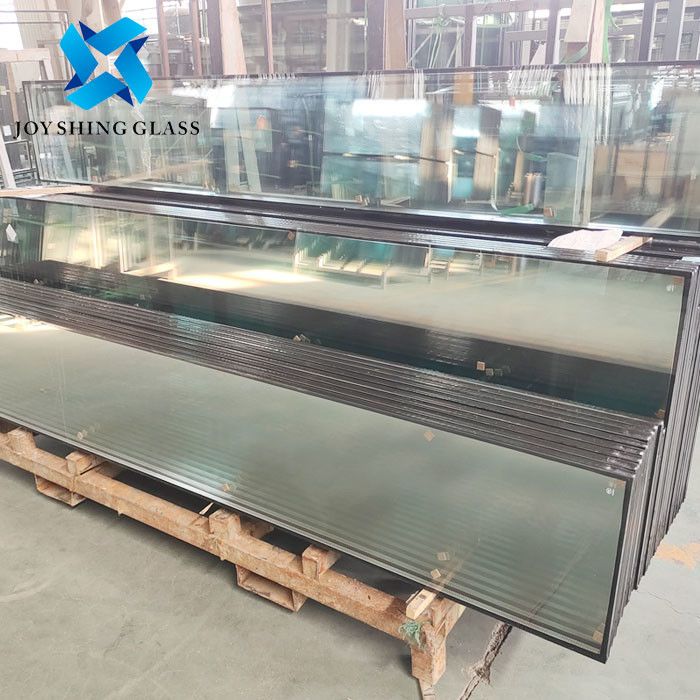

Product photo
Joy Shing Glass factory direct sales,insulated glass size, thickness, shape, color, etc. can be customized as required. For more details, please contact us.
Application
Low-e tempered insulated glass can be used in curtain walls, doors, windows, sound insulation walls and other locations in residential buildings, office buildings, commercial centers, factories and other buildings. Improve the energy efficiency and comfort of buildings.
