Customized Low-e Double Glazing 15mm+18A+15mm Safety Insulated Glass

Customized Low-e Double Glazing 15mm+18A+15mm Safety Insulated Glass

Low-e Double Glazing

Customized Double Glazing Insulated Glass

18A Safety Insulated Glass

Place of Origin:

CHINA

Brand Name:

JOYSHING

Certification:

CE,ISO, CSi,SGCC

Model Number:

JY-I135

Contact Us

Request A Quote
Product Details
Name:
Low-e Double Glazing
Model:
JY-I135
Size:
Max Size:22000mm*3300mm,Custom Size
Structure:
Such As: 15mm Low-E Glass+18A+15mm Tempered Glass
Total Thickness:
48mm. Can Be Produced On Request
Glass Thickness:
15mm. Can Be Produced On Request
Spacer Width:
18mm. Can Be Produced On Request
Glass Color:
Ultra Clear,Clear,Grey,Blue,Green,etc.
Gas Filled:
Air. Also Can Be Filled With Inert Gas
Warranty:
5 Years
Payment & Shipping Terms
Minimum Order Quantity
1 wooden box
Price
Usd/1-999/sqm
Packaging Details
Wooden box
Delivery Time
1-2weeks
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
3000sqm/day
Product Description

Customized Low-e Double Glazing 15mm+18A+15mm Safety Insulated Glass



Low-e double glazing is also called safety insulated glass, low-e insulated glass, IGU, etc. Compared with ordinary insulated glass, low-e double glazing made of low-e glass has the advantages of both low-e glass and insulated glass. It not only has significant energy saving effect, but also can effectively protect the film layer and extend the service life. Joy Shing Glass manufacturers supply, if wholesale purchase price is more favorable. We can produce the size, shape, thickness, color of glass as well as the deep processing of glass as required. Provide integrated glass solutions, technical support, samples and other services for your construction projects.



Specification

Product name
Low-e Double Glazing
Model
JY-I135
Size
max size:22000mm*3300mm,Custom size
Structure
such as: 15mm Low-E Glass+18A+15mm Tempered Glass
Total Thickness 48mm. Can be produced on request

Single Glass thickness optional

4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm,etc.
Glass Type low-e glass, clear glass, ultra clear, tempered glass, laminated glass,etc.
Glass Color optional
Ultra clear,Clear,Grey,Blue,Green,etc.
Spacer width optional
6mm,9mm,12mm,15mm, 16mm,18mm,22mm,etc.
Lead time

Generally 15-20 days, depending on the order quantity

Warranty
5 years
Gas filled
Air , Argon or other inert gas
Packaging Details
Sea Worthy Strong Wooden Crates

Payment Terms

30% deposit, and balance before shipment by T/T


Above data are for reference only. parameters for a specific product needs to be calculated separately.

For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.



Features of Low-e double glazing:
1. Low-e insulated glass has a high shading coefficient and a low U value, and has excellent thermal insulation and thermal insulation properties. If the air layer is filled with argon gas, the energy saving effect will be better.
2. Low-e double glazing has good lighting and soft light
3. Excellent sound insulation performance, reducing noise by more than 30 decibels
4. Low-e double glazing can eliminate and reduce glass condensation.



Product photo

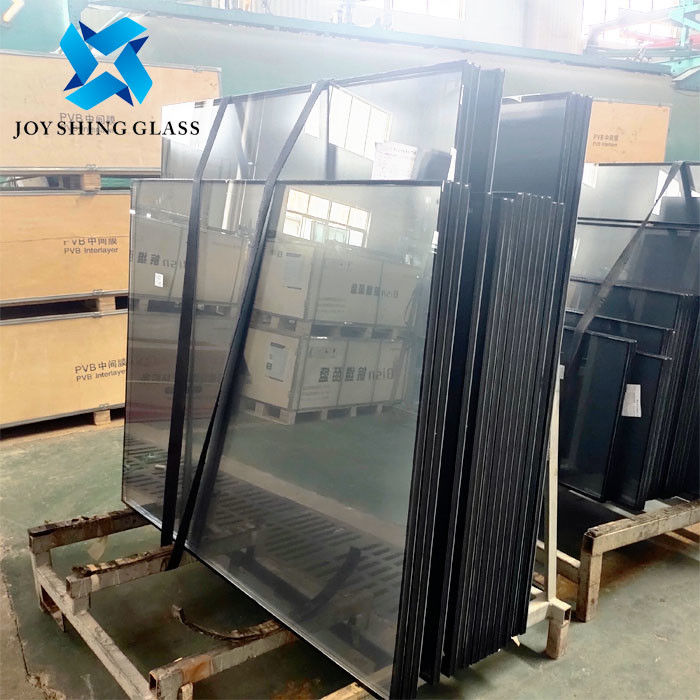

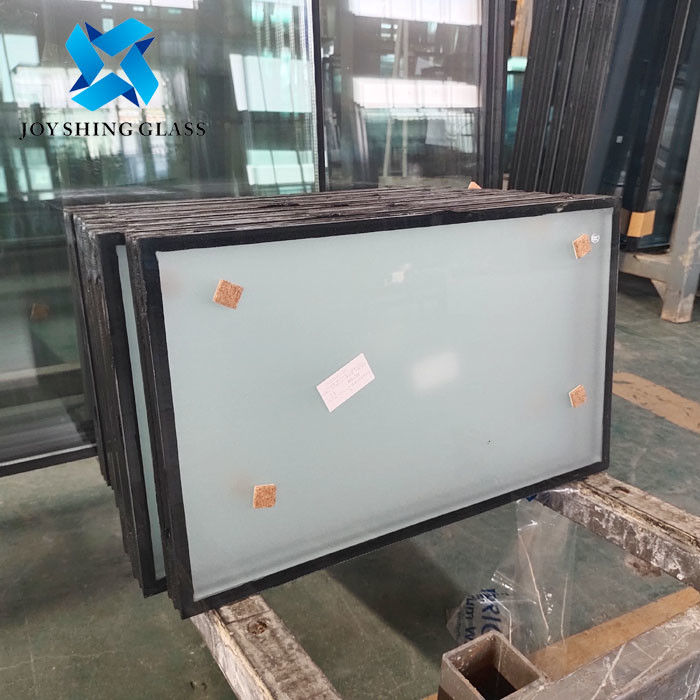

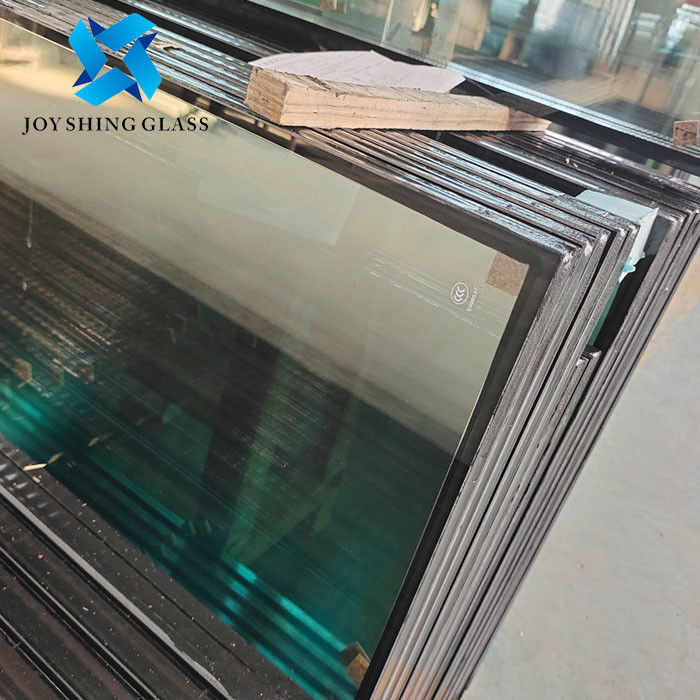

Photo of low-e double glazinglow-e double glazing and packaging pictures

Joy Shing Glass factory direct sales,insulated glass size, thickness, shape, three-layer or multi-layer insulated glass, etc. can be customized according to requirements. For more details, please contact us.



Application

Low-e double glazing can be used in building curtain walls and exterior walls, doors, windows, skylights, sunroom glass, roof glass, showcases, greenhouses, etc.
