Green Tinted Heat Insulated Glass Low-E Double Glazing Custom
Joy Shing Glass manufacturers supplies high quality green tinted heat insulated glass. One piece of glass in this type of insulating glass is made of low-e glass, which has more obvious heat insulation and energy-saving effects. As a professional glass manufacturer, we can customize and deeply process insulated glass as required, providing integrated glass solutions for your project. If wholesale purchase price is more favorable.
Structural diagram of tinted heat insulated glass:
Specification
|
Product name
|
Green Tinted Heat Insulated Glass
|
|
Model
|
JY-I131
|
|
Size
|
max size:22000mm*3300mm,Custom size
|
|
Total Thickness
|
Custom
|
|
Structure
|
Low-E Glass+Hollow Layer+Glass
|
|
Glass thickness |
4mm,5mm,6mm,8mm,10mm,15mm, 19mm, etc.
|
|
Glass Color
|
Green
other tinted glass available,such as blue,bronze,grey,etc.
|
|
Spacer width
|
6mm,9mm,12mm,15mm, 16mm,18mm,22mm,etc.
|
| Glass type optional | Tempered, HS Glass, HST Glass, tinted glass, clear glass, ultra clear glass, low-e glass, silk screen glass, laminated glass, etc. |
| Lead time |
Generally 15-20 days, depending on the order quantity |
| Our services | 1. Customizable: size, shape, color, thickness 2. Deep processing: edges, corners, laminated, tempered, silk screen 3. Integrated glass solutions, installation guidance, samples, etc. |
|
Warranty
|
5 years
|
|
Gas filled
|
Air/Argon/Inert gas
|
|

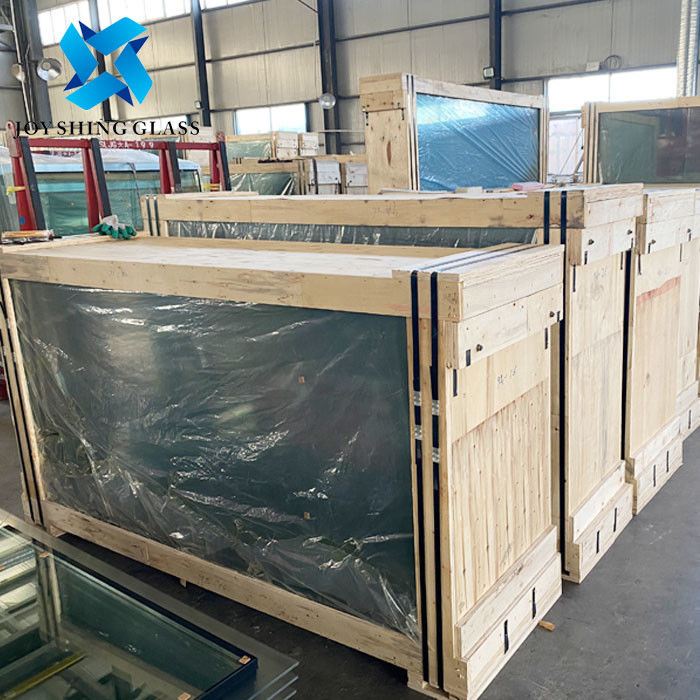

Packaging Details
|
1. Fumigation-free plywood wooden box
2. The glass is separated by cork pads 3. Can be packaged upon request |
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.
Features
1. Significant energy saving effect: Green tinted low-e double glazing has better heat insulation and heat preservation properties. If filled with inert gas, the U value will be lower and the energy saving effect will be better (for example: Low-E argon insulated glass)
2. Good sound insulation effect: green tinted heat insulated glass can reduce noise by more than 30 decibels.
3. Anti-condensation: If the temperature difference between indoor and outdoor is large, condensation will form on single-layer glass, but low-e green tinted heat insulated glass can effectively prevent condensation.
4. Low-e green tinted heat insulated glass has excellent UV protection effect

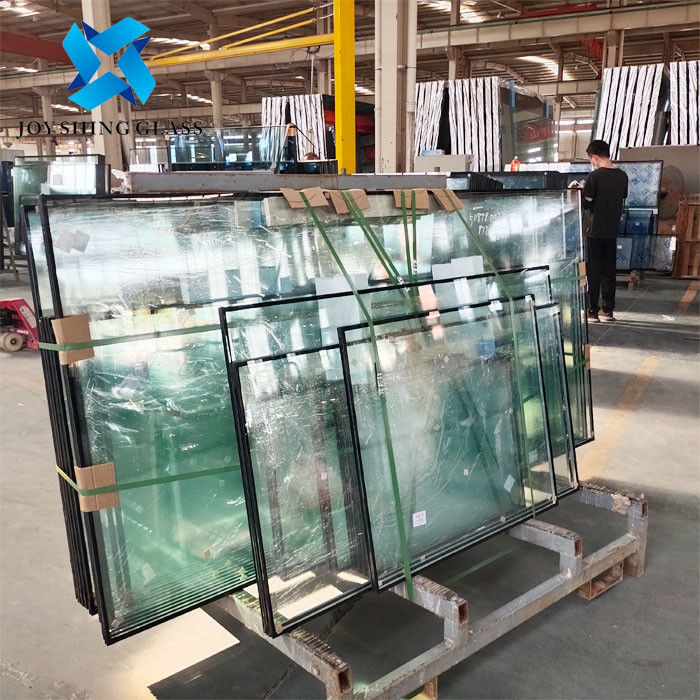

Product photo
Customized green tinted insulated glass
Joy Shing Glass factory direct sales,insulated glass size, thickness, shape, three-layer or multi-layer insulated glass, etc. can be customized according to requirements. For more details, please contact us.
Application
Low-E heat insulated glass is widely used in building curtain walls, doors, windows, partitions, greenhouses, lighting roofs, etc. that require thermal insulation and sound insulation.
