Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
JY-I123
Customized Blue Grey Tinted Insulated Glass For Curtain Walls
Joy Shing Glass manufacturers supplies high quality blue grey tinted insulated glass, and the wholesale purchase price is more favorable. As a professional glass manufacturer, we can customize and deeply process insulated glass as required, providing integrated glass solutions for your project.
Structural diagram of tinted insulated glass:
Specification
|
Product name
|
Blue Grey Tinted Insulated Glass
|
|
Model
|
JY-I123
|
|
Size
|
max size:22000mm*3300mm,Custom size
|
|
Total Thickness
|
Custom
|
|
Structure
|
such as 6+12A+6mm,Hollow
|
|
Glass thickness |
4mm,5mm,6mm,8mm,10mm,15mm,etc.
|
|
Glass Color
|
Blue Grey
other tinted glass available,such as dark blue,green,bronze,grey,etc.
|
|
Spacer width
|
6mm,9mm,12mm,15mm, 16mm,18mm,22mm,etc.
|
| Glass type optional | Tempered, HS Glass, HST Glass, tinted glass, clear glass, ultra clear glass, low-e glass, silk screen glass, laminated glass, etc. |
| Lead time |
Generally 15-20 days, depending on the order quantity |
| Our services | 1. Customizable: size, shape, color, thickness 2. Deep processing: edges, corners, laminated, tempered, silk screen 3. Integrated glass solutions, installation guidance, samples, etc. |
|
Warranty
|
5 years
|
|
Gas filled
|
Air. It can also be filled with argon or other inert gases.
|
|

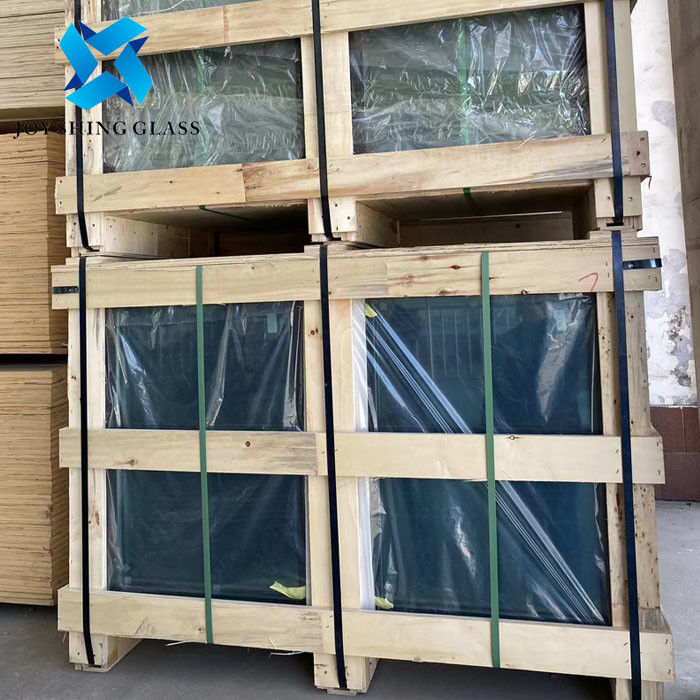

Packaging Details
|
1. Fumigation-free plywood wooden box
2. The glass is separated by cork pads 3. Can be packaged upon request |
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.
Features
1. Energy saving: Compared with single-piece glass, blue grey tinted insulated glass has better heat insulation and thermal insulation properties. If you choose low-e glass or fill it with inert gas, the U value will be lower and the energy saving effect will be better (for example: Low-E Argon Insulated Glass)
2. Good sound insulation effect: 6+12A+6 blue grey tinted insulated glass can reduce noise by more than 30 decibels. If inert gas is filled, the noise reduction performance can be improved.
3. Anti-condensation: If the temperature difference between indoor and outdoor is large, condensation will form on single-layer glass, but blue grey tinted insulated glass can effectively prevent condensation.
Product photo

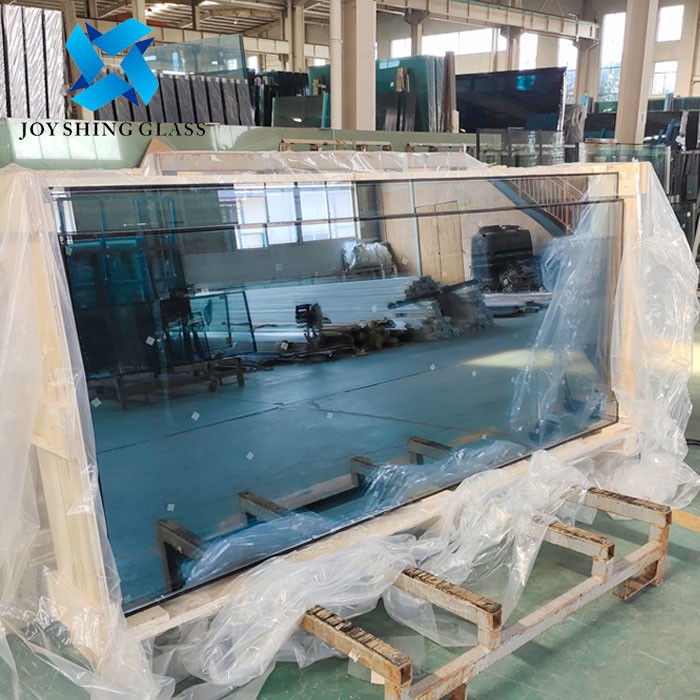

1. Customized blue grey tinted insulated glass

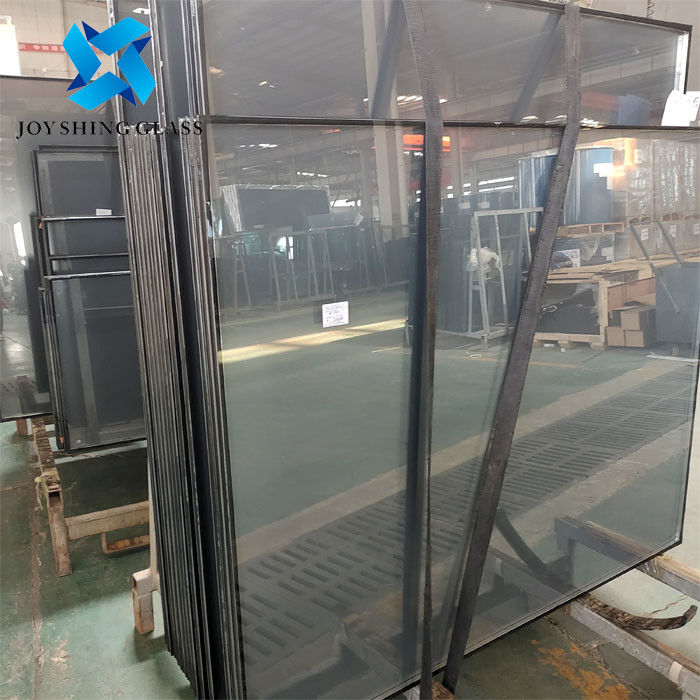

2.customized flat/curved tinted insulated glass
Joy Shing Glass factory direct sales,insulated glass size, thickness, shape, three-layer or multi-layer insulated glass, etc. can be customized according to requirements. For more details, please contact us.
Application
Blue grey tinted insulated glass can be used in a wide range of applications, including:building curtain walls and exterior walls, doors, windows, skylights, sunroom glass, roof glass, showcases, greenhouses, etc.
