Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Laminated Glass JY-L120
Contact Us
Tinted Laminated Glass Sheets 3660*2440mm Safety Laminated Glass
This type of tinted laminated glass sheets is made of two or more 3660*2440mm tinted float glass sheets sandwiched with one or more layers of PVB/SGP film, which are glued together under high temperature and high pressure. Tinted laminated glass sheets is a kind of safe architectural glass, which is widely used in building curtain walls, doors and windows, partitions, screens, stair railings, handrails, lighting roofs, skylights, guardrails, etc.
Joy Shing Glass manufacturer sells directly, if wholesale purchase price is more favorable. We can customize and deeply process glass as required, providing integrated glass solutions, technical support, samples and other services for your project. If you are interested in our products, you can contact us at any time.
Product Specification
| Brand | JOY SHING | |
| Name | Tinted Laminated Glass Sheets | |
| Thickness | Thickness of Single Glass | 3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm,22mm |
| PVB/SGP Thickness |
PVB: 0.38mm,0.76mm, 1.14mm, 1.52mm, etc. SGP: 0.89mm, 1.52mm, 2.28mm, 3.04mm, etc. |
|
| Size |
3660*2440mm,custom size |
|
| Glass Color | Green, clear, blue, grey, red, yellow, white, brown, etc. | |
|
PVB/SGP Color |
Ultra clear, clear, milk white, blue, green, grey, etc. | |
| Shape | Flat | |
| Customized and further processing | Size, Thickness, Shape, Color, Layers of glass, Edges, Corners, Holes, Silk screen,Printed Logo,Cutting, Coated, Tempered, Insulated,etc. | |
| Raw material | Tinted Float Glass | |
| Packaging Details |
Sea Worthy Strong Wooden Crates Use protective paper film and soft wood pad for seprate glass avoid breaking. All glass are packed in strong wooden crates,nailed and strapped. |
|
| Warranty | 10 years | |
| Sample | Available | |
| Lead time |
Generally 15-20 days, depend on order quantity. |
|
| Payment Terms | 30% deposit, and balance before shipment by T/T | |
Features of Tinted Laminated Glass Sheets

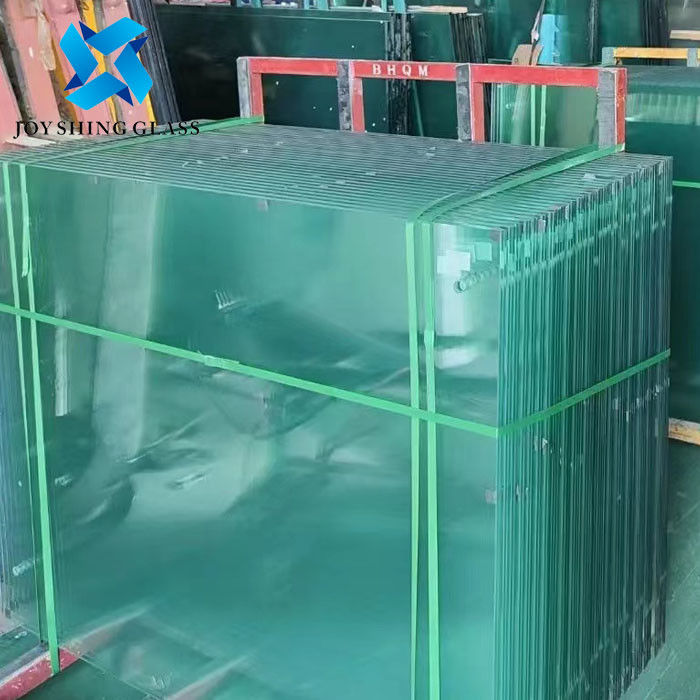

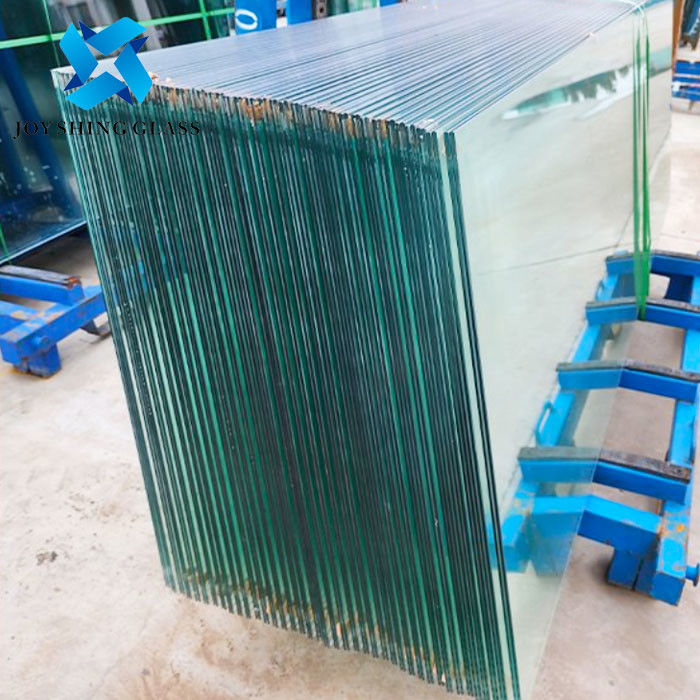

Photo of Laminated Glass Sheets
Application
