Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Insulated Glass JY-I120
Contact Us
Joy Shing Glass can customize laminated insulated glass units according to customer requirements. Customization options include size, thickness, shape, color, pattern, and more. Can provide glass deep processing such as: edge, corner, silk screen, coated, tempered, etc. Our company has rich industry experience, advanced production equipment, mature manufacturing technology, and strict quality management system to ensure product quality. Our products are widely used in construction engineering, residential construction, door and window manufacturing and are well received by customers. Can provide you with integrated project solutions, free samples, online technical support and other services.
Specification
|
Product name
|
Laminated Insulated Glass Units
|
|
Model
|
JY-I120
|
|
Size
|
300mm*300mm to 22000mm*3300mm,Custom size
|
|
Total glass thickness
|
Customized
|
|
Structure
|
Hollow Lamination
|
|
Single Glass thickness |
3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm,etc.
|
| PVB thickness | 0.38mm, 0.76mm, 1.14mm, 1.52mm,etc. |
|
Glass Color
|
Clear,Ford blue,Ford green,bronze,white,etc.
|
|
Spacer width
|
6A,9A,12A,15A,16A,19A,21A,25A
|
| Lead time |
Generally 2 weeks, depend on order quantity. |
|
Warranty
|
5 years
|
|
Insulating Gas
|
Argon, Air, Inert Gases
|
|
Sample |
Free samples available |
|

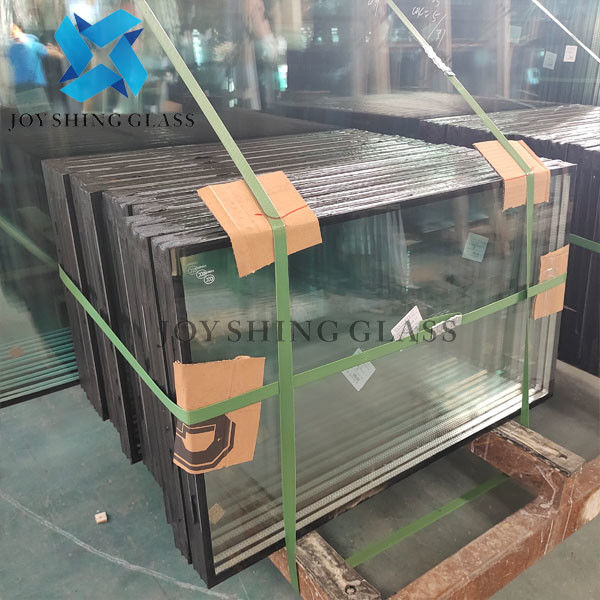

Packaging Details
|
Sea Worthy Strong Wooden Crates
Use protective paper film and soft wood pad for separate glass avoid breaking.
|
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.

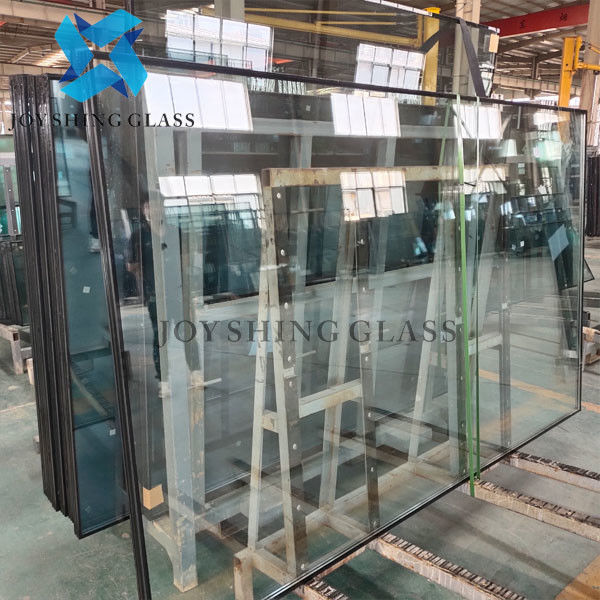

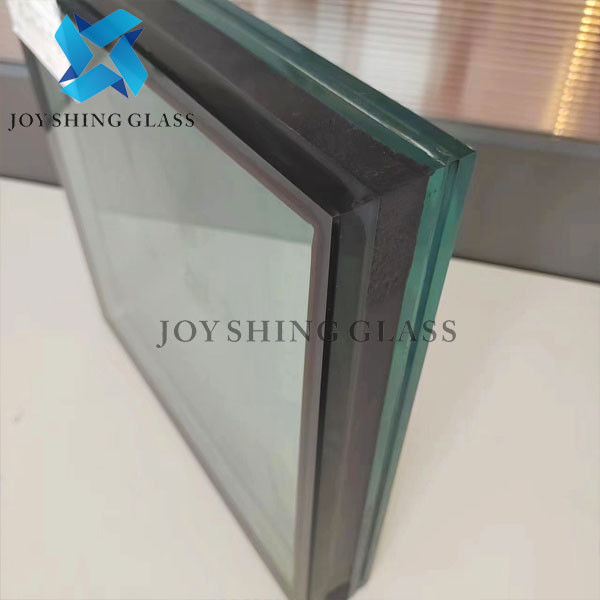

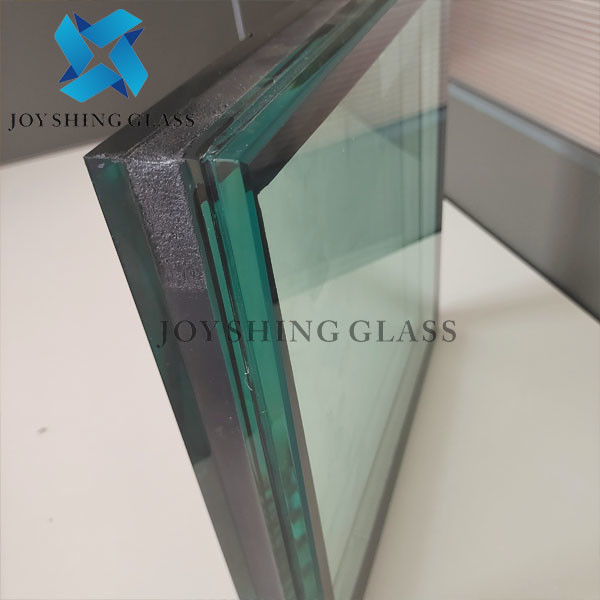

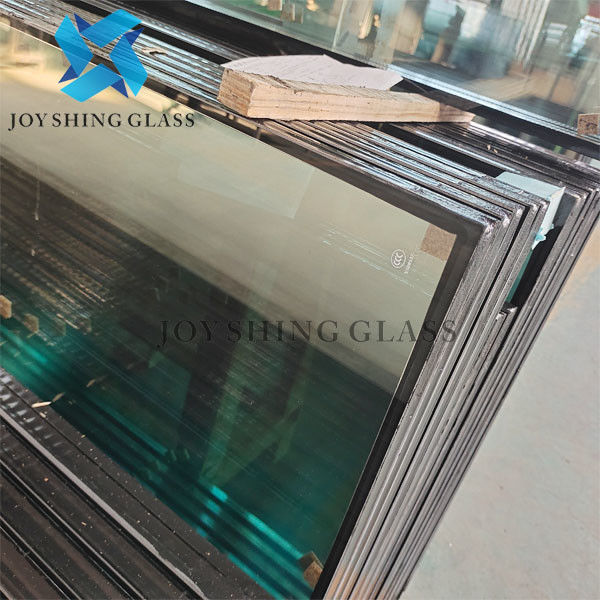

Product photo
Advantage
1. Heat insulation: the hollow layer has good heat insulation performance, which can effectively block the transfer of heat, thereby reducing the indoor and outdoor temperature difference and saving energy.
2. Good sound insulation effect: laminated insulated glass can effectively absorb and block the propagation of sound waves, provide good sound insulation effect, and reduce the interference of indoor and outdoor noise.
3. Reduce condensation: The hollow layer can reduce condensation on the glass surface and keep the indoor air dry.
4. Anti-UV: Protect indoor items from UV damage.
Application
Hollow glass units are widely used in hotel/residential/commercial centers and other building curtain walls, doors and windows, freezer doors, display windows and other fields.
