Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
U Glass JY-U01
Contact Us

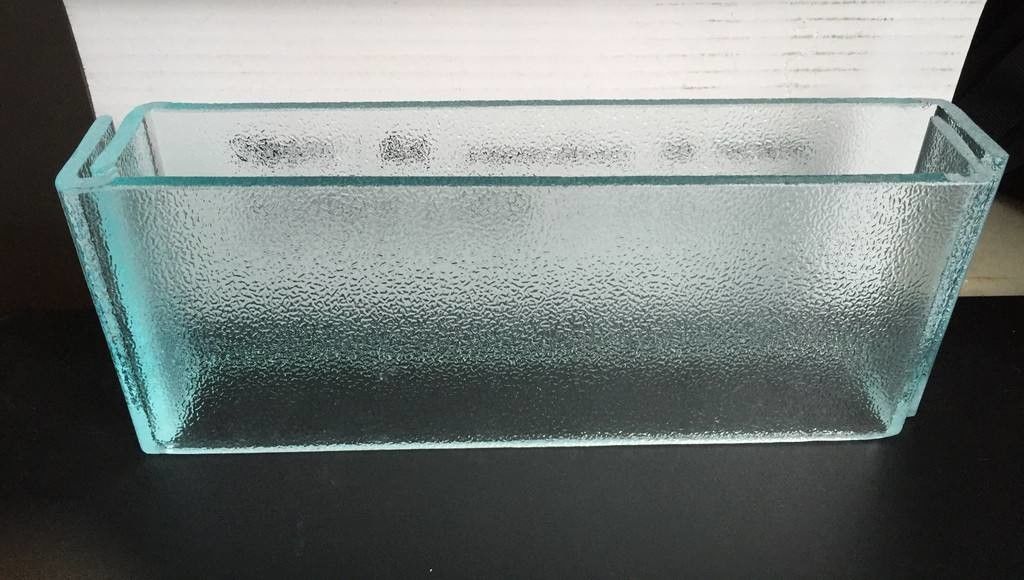

Ultra Clear U-profile Glass 6mm 7mm 8mm Low Iron U Channel Tempered Glass
Manufacturers supply U-profile glass, which can be produced in size, thickness, color, pattern and texture according to customer requirements. Provide glass deep processing and integrated solutions.
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc. Our advantages are as below:
Specification
| U-profile/Channel Glass Series | K40Series | K60Series | |||||
| U-profile/Channel Glass Series | P23/41/6 | P26/41/6 | P33/41/6 | P50/41/6 | P23/60/7 | P26/60/7 | P33/60/7 |
| Face Width (w) mm | 232mm | 262mm | 331mm | 498mm | 232mm | 262mm | 331mm |
| Face Width (w) inches | 9-1/8" | 10-5/16" | 13-1/32" | 19-5/8" | 9-1/8" | 10-5/16" | 13-1/32" |
| Flange height (h) mm | 41mm | 41mm | 41mm | 41mm | 60mm | 60mm | 60mm |
| Flange height (h) inches | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" | 2-3/8" | 2-3/8" | 2-3/8" |
| Glass thickness(t) mm | 6mm | 6mm | 6mm | 6mm | 7mm | 7mm | 7mm |
| Glass thickness(t) inches | .24" | .24" | .24" | .24" | .28" | .28" | .28" |
| Maximum Length(L) mm | 7000 mm | 7000 mm | 7000 mm | 7000 mm | 7000 mm | 7000 mm | 7000 mm |
| Maximum Length(L) inches | 276" | 276" | 276" | 276" | 276" | 276" | 276" |
| Weight (single layer) KG/m2 | 19.43 | 18.94 | 18.16 | 16.94 | 25.43 | 24.5 | 23.43 |
| Weight (single layer) lbs/sq ft. | 3.98 | 3.88 | 3.72 | 3.47 | 5.21 | 5.02 | 4.8 |
| Glass Textures | Rough Cast | Clear | Ice | Piccolo | Low iron | etc. | |

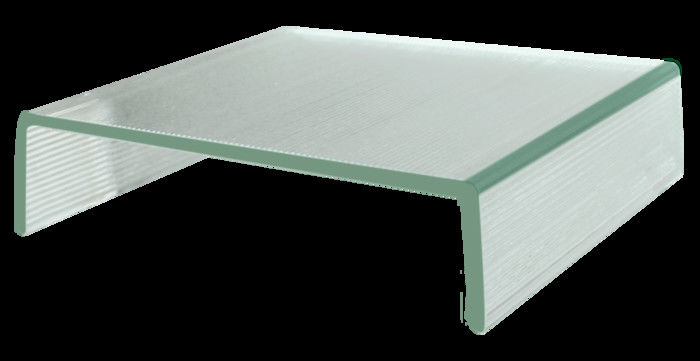

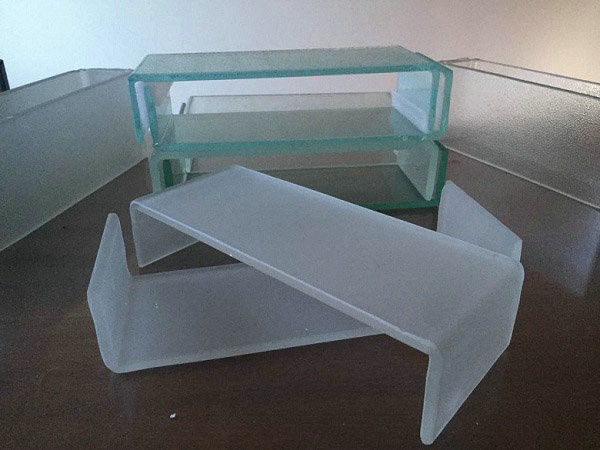

Product photo
