Customized Shape 10.15mm Low-e Tempered Vacuum Glass For Building
Joy Shing Glass manufacturers supply, wholesale purchase price is more favorable. The structure of 10.15mm low-e tempered vacuum glass is 5TL+0.15V+5T, that is, 5mm ultra clear Low-e tempered glass + 0.15mm vacuum layer + 5mm ultra clear tempered glass.

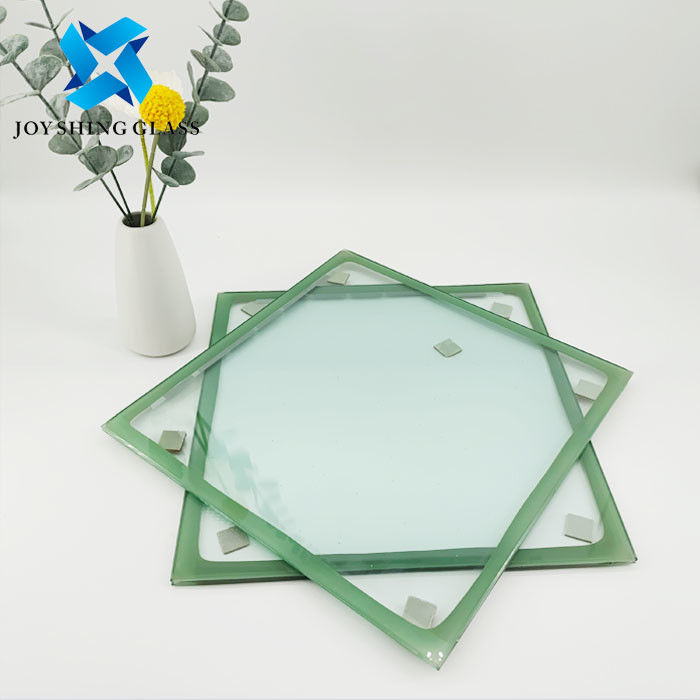

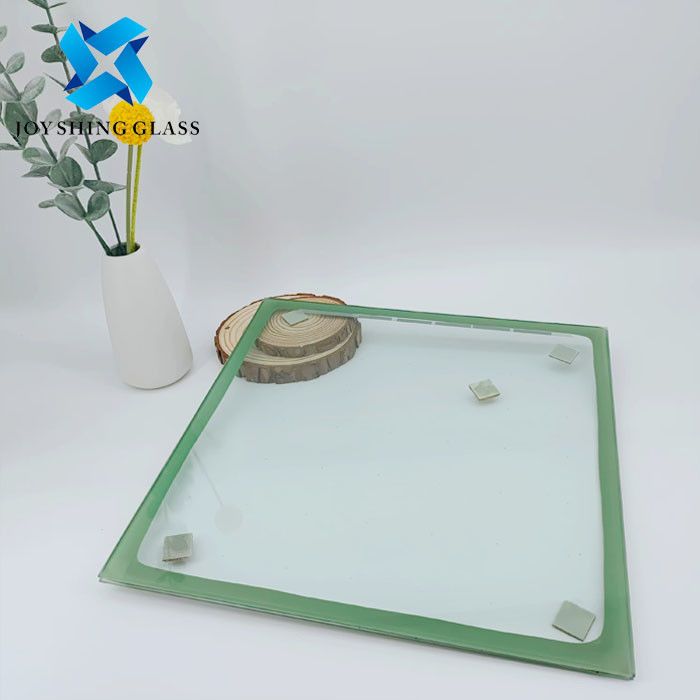

Structure photo
Advantages
1. Joy Shing low-e tempered vacuum glass adopts a one-step process and has no air extraction hole design. The glass has high flatness and more stable quality, and has a service life of up to 35 years.
2. Joy Shing vacuum glass all uses tempered glass, which is high in strength and safer.
3. The U value of 10.15mm Low-e tempered vacuum glass is <0.6W/㎡·K, and the heat insulation effect is good
4. Low-e tempered vacuum glass has good energy saving and consumption reduction effects, saving energy costs.
5. Anti-frost and dew: The dew point of tempered vacuum glass is ≤-51°C, which effectively prevents internal condensation and extends the service life of the LOW-E film.
6. The insulation volume of 10.15mm tempered vacuum glass reaches 38 decibels and the noise reduction effect is good
Specification
|
Product name
|
Low-e Tempered Vacuum Glass
|
|
Shape
|
Rectangle, square, polygon, etc. Customized
|
|
Glass thickness
|
10.15mm (5TL+0.15V+5T)
|
|
Glass Type
|
Low-E Tempered Glass, Tempered Glass
|
|
Max Size
|
1500mm*2500mm, customized.
|
| Color | Ultra Clear. other color available |
|
Vacuum Thickness
|
0.15mm
|
| U value | <0.6W/㎡·K |
|
Warranty
|
25 years
|
|
After-sale service
|
Online Technical Support, Onsite Inspection
|
|
Sample
|
Available
|
|

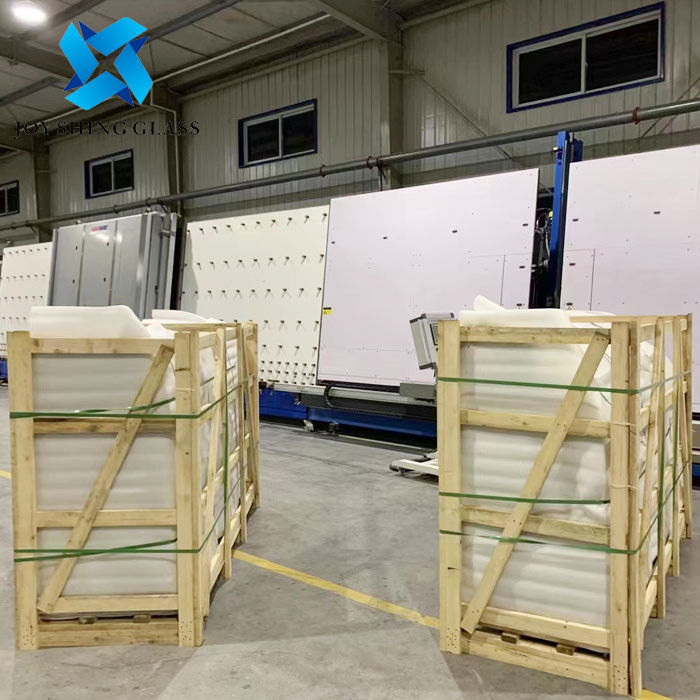

Packaging Details
|
Sea Worthy Strong Wooden Crates
|
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
2. Customized Shape Low-e Tempered Vacuum Glass
Application
Low-e tempered vacuum glass is suitable for doors, windows and curtain walls in energy-saving buildings and green buildings; high-end residential decoration, commercial building renovation, passive house construction; freezer manufacturing; photovoltaic construction and other fields.
