Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Laminated Glass JY-L525
PVB Interlayer Double Tempered Glass 12.38mm Laminated Glass
PVB interlayer double tempered glass( i.e. laminated glass) is made of two pieces of tempered glass with a PVB film layer in between, processed under high temperature and high pressure. It can provide higher security and impact resistance, and is suitable for places that require higher safety standards.
Joy Shing Glass supplies high-quality PVB interlayer tempered laminated glass, Wholesale prices are more favorable. We can customize and process the glass as required, providing integrated glass solutions for your project.
Features
1. Laminated structure: It is composed of two pieces of tempered glass and a layer of PVB film, providing double safety protection.
2. PVB interlayer: The PVB film interlayer has excellent adhesion. Even if the glass breaks, the fragments can be kept on the PVB film, reducing the risk of fragment splashing.
3. Impact resistance: The double-layer tempered glass structure makes it more impact-resistant. The PVB film in the middle has a certain blocking effect and is suitable for places with high safety requirements.
4. Anti-ultraviolet: PVB interlayer double tempered glass can block 99% of ultraviolet rays
5. Sound insulation: PVB interlayer has good sound insulation and can reduce 30-40 decibels of noise.
Why Choose Joy Shing Glass
1. More than 10 years experience in glass manufacturing and exporting
2. Advanced glass machinery and mature production technology
3. High-quality products, long service life, 10-year warranty
4. Products are exported to 75 countries around the world, with more than 500 customers
5. Customize various glass products for each customer
6. Safe packaging and fast delivery
Specification
| Brand | JOY SHING | |
| Name | PVB Interlayer Double Tempered Glass | |
| Thickness | Total Thickness | 12.38mm. customized |
| Thickness of Single Glass | 6mm. other available: 3mm,4mm,5mm,8mm,10mm,12mm,15mm,19mm | |
| PVB Thickness |
0.38mm, other available: 0.76mm, 1.14mm, 1.52mm, 2.28mm, 3.04mm. |
|
| Size |
150*150mm to 3300*22000mm,customize size |
|
| Glass Color |
Clear, blue, euro grey, green, ultra clear, red, brown, F-blue, F-green, etc. |
|
| PVB Color | Clear, green, ultra clear, milk white, blue, grey, etc. | |
| Shape | Rectangle, square, trapezoid, round, or customized | |
| Packaging Details |
Use protective paper film and soft wood pad for seprate glass avoid breaking. All glass are packed in strong wooden crates,nailed and strapped. |
|
|
Sample |
Available |
|
| Warranty | 10 years | |
| Lead time | Generally 10-20 days, depending on the order quantity | |
|
Deep processing |
Cutting, edge/corner processing, drilling, slotting, silk screen printing, HST, etc. |
|
| Payment Terms | 30% deposit, and balance before shipment by T/T | |
Product Photo

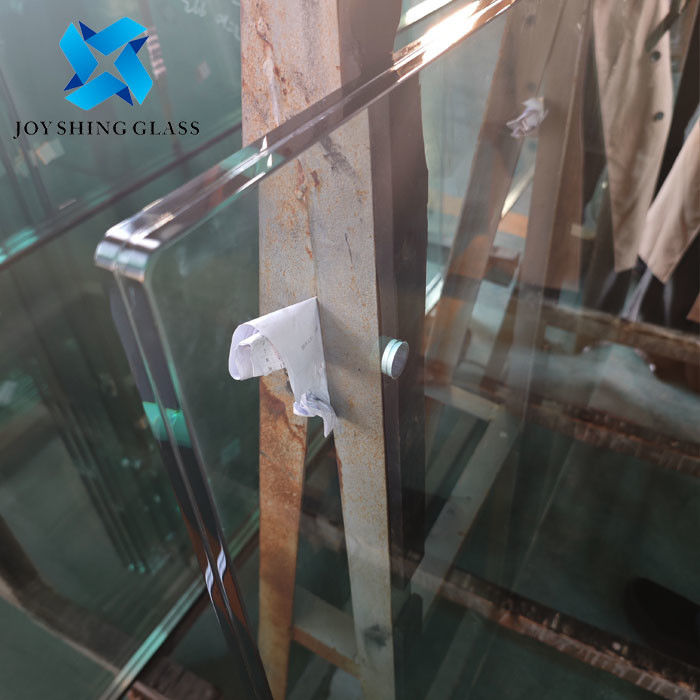

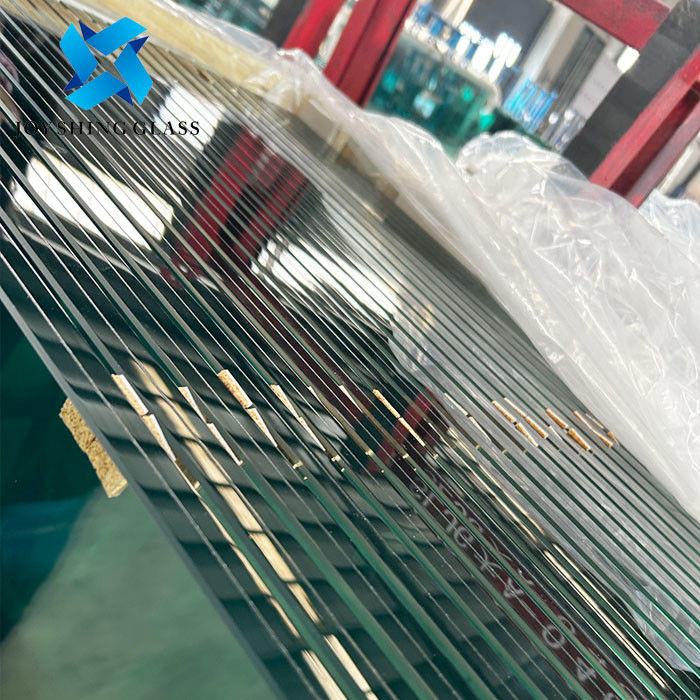

Clear PVB interlayer tempered laminated glass
Customized curved toughened laminated glass

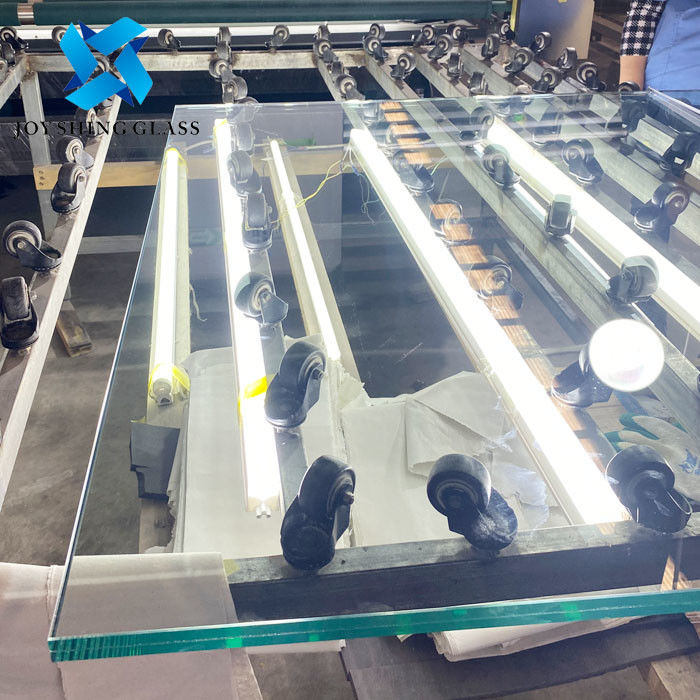

Tempered laminated glass processing
Application of Laminated Glass
1. High-end commercial buildings: Curtain walls, doors and windows used in high-end commercial buildings, providing a higher level of security and modern design.
2. Financial institutions: Security doors and windows, partitions, etc. suitable for banks and financial institutions, providing additional protection and security.
3. Display counters: Used in exhibition display cabinets, jewelry counters, etc. to protect the safety of exhibits and enhance the display effect.
4. Museums and art galleries: Display cabinets, partitions, etc. used to display precious cultural relics and artworks, providing security protection and visual effects.
5. Medical institutions: Partitions, doors and windows, etc. suitable for hospitals, laboratories and other places, providing security and cleanliness requirements.
