Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Laminated Glass JY-L518
Clear Tempered Laminated Glass 17.52mm PVB Laminated Glass
PVB clear tempered laminated glass has excellent safety and aesthetics. The PVB film is sandwiched between tempered glass, so that the glass will not immediately break into pieces when broken, but will be fixed together by the film, reducing the potential risk of injury.
Joy Shing Glass supplies high-quality clear tempered laminated glass, and can customize and deeply process the glass as required, providing integrated glass solutions for your project.
Clear tempered laminated glass is a safe architectural glass with the following features:
1. Safety: The clear PVB film acts as a bond in the tempered glass. Even if it breaks, the fragments will adhere to the film, reducing the risk of injury.
2. Impact resistance: The use of tempered glass enhances the impact resistance of the glass, making it more durable than ordinary glass.
3. Good transparency: Clear tempered laminated glass provides good transparency and is suitable for occasions where the view needs to be kept open, adding to the modernity and beauty of the building.
4. Anti-ultraviolet: PVB clear tempered laminated glass can filter out most of the harmful ultraviolet rays, protecting indoor furniture and personnel from ultraviolet damage.
5. Acoustic isolation: PVB clear tempered laminated glass can provide good acoustic isolation and reduce the transmission of indoor and outdoor noise.
6. Weather resistance: It has good weather resistance and is suitable for indoor and outdoor environments.
Specification
| Name | Clear Tempered Laminated Glass | |
| Thickness | Thickness of Single Glass | 3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm |
| PVB Thickness | 0.38mm, 0.76mm, 1.14mm, 1.52mm, 2.28mm, 3.04mm. | |
| Size | 150*150mm to 3300*22000mm,customize size | |
| Glass Color | Clear, etc. | |
| PVB Color | Clear, Other colors available: ultra clear, green, milk white, blue, grey, etc. | |
| Shape | Rectangle, square, customize shape, etc. | |
| Packaging Details | Use protective paper film and soft wood pad for seprate glass avoid breaking. | |
Sample | Available | |
| Warranty | 10 years | |
| Delivery | Generally 20 days, depending on the order quantity | |
Deep processing | Printed Logo,Cut Size,Edge,Corner,Drilling,Tempered,Coated, HST, etc | |
| Payment Terms | 30% deposit, and balance before shipment by T/T | |
Product Photo

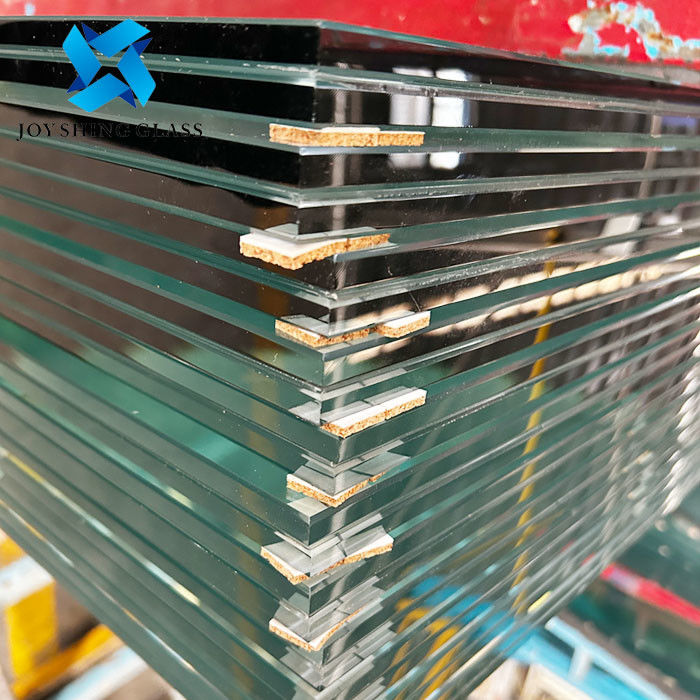

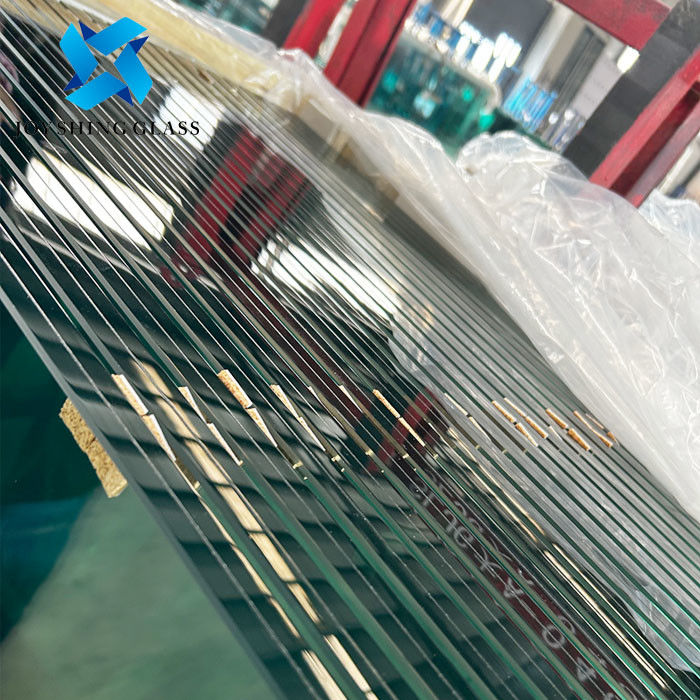

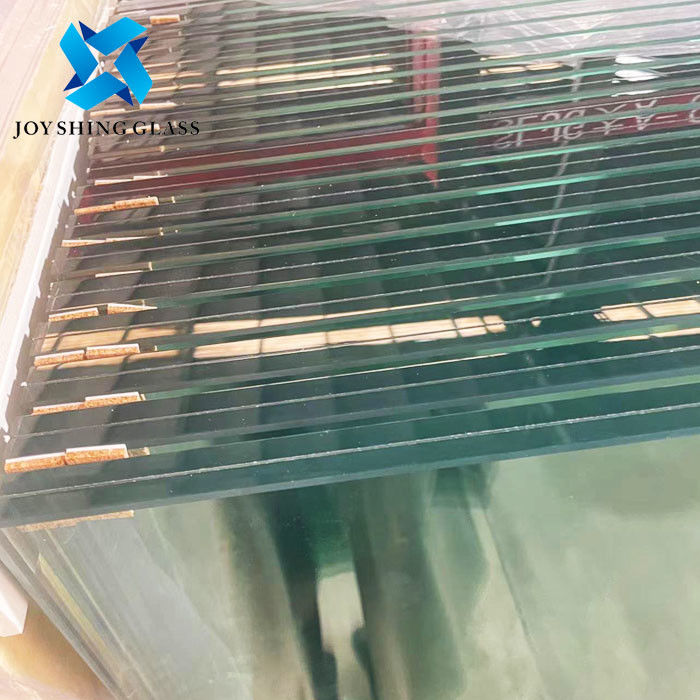

PVB clear tempered laminated glass
Customized curved tempered laminated glass

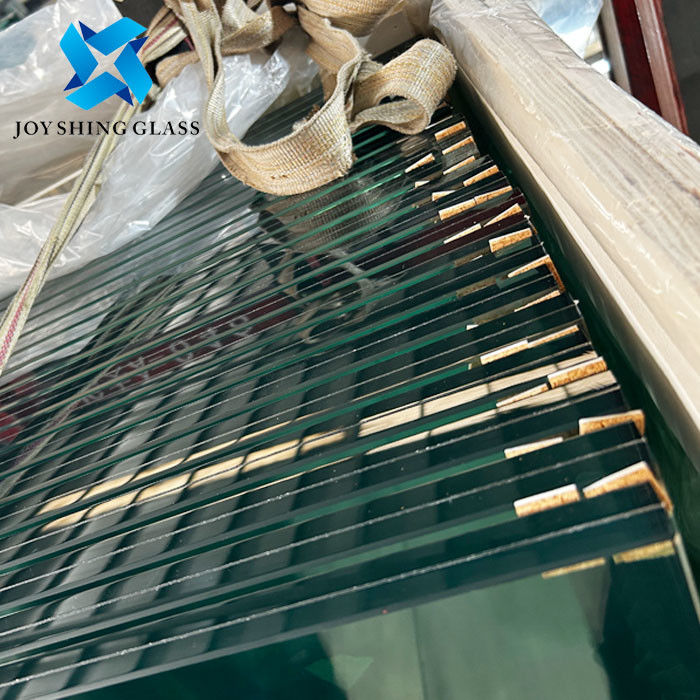

Tempered laminated glass processing
Application picture
Clear tempered laminated glass is widely used in building curtain walls, stairs, railings, windows, partitions, glass bridges, roof, balconies, guardrails, glassdoors, etc.
