Acoustic PVB Laminated Glass 14.76mm Tempered Laminated Glass
Acoustic PVB laminated glass is made of two or more pieces of glass sandwiched with one or more layers of PVB special acoustic film, which are permanently bonded together under high temperature and pressure. Compared with ordinary laminated glass, its sound insulation performance is stronger. Joy Shing Glass can customize and deeply process glass as required, providing integrated soundproof laminated glass solutions for your project. If you are interested in our products, please feel free to contact us for quotations, samples, etc. If you purchase wholesale, the price is more favorable.
Structure of Acoustic PVB laminated glass
Product Specification
| Brand | JOY SHING | |
| Name | Acoustic PVB Laminated Glass | |
| Total Thickness | 14.76mm, Can be produced on request | |
| Single Glass Thickness | 4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm | |
| PVB Thickness | 0.76mm,1.14mm,1.52mm,3.04mm,etc. | |
| Size |
150*150mm to 3300*22000mm,customized size |
|
| Glass Color | Clear, Ultra clear, Bronze, Grey, Blue, Green, Milk White, other custom colors can also produce | |
| PVB Color | Clear,yellow,blue,green,grey,black,milk white,and other tinted | |
| Shape | Flat, curved. Customized | |
| Packaging Details |
Sea Worthy Strong Wooden Crates Use protective paper film and soft wood pad for seprate glass avoid breaking. All glass are packed in strong wooden crates,nailed and strapped. |
|
| Warranty | 10 years | |
| Delivery |
Generally 15-20 days, depend on order quantity. |
|
|
Deep processing |
Printed Logo,Edge&Corner Processing,Drilling, Cutting, Coated, Tempered, Insulated,HST, Screen printing, Hot melting, etc. |
|
| Payment Terms | 30% deposit, and balance before shipment by T/T | |
Customized service
Can customize the thickness of glass, PVB thickness, PVB color, glass color, glass size,glass shape,edge, angle etc
Features of Acoustic PVB Laminated Glass

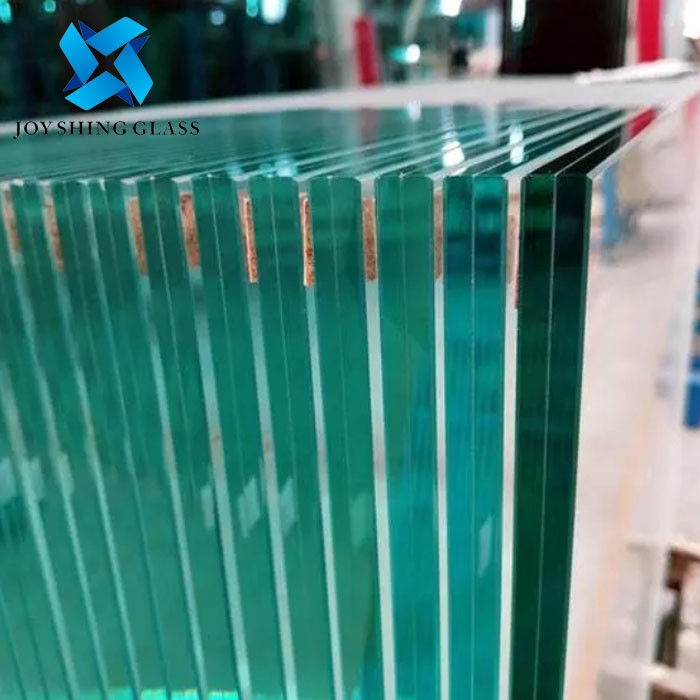

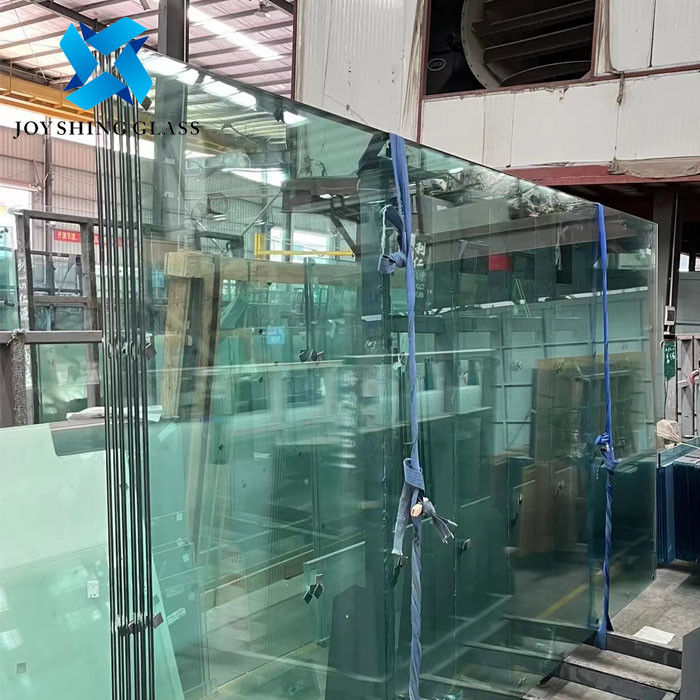

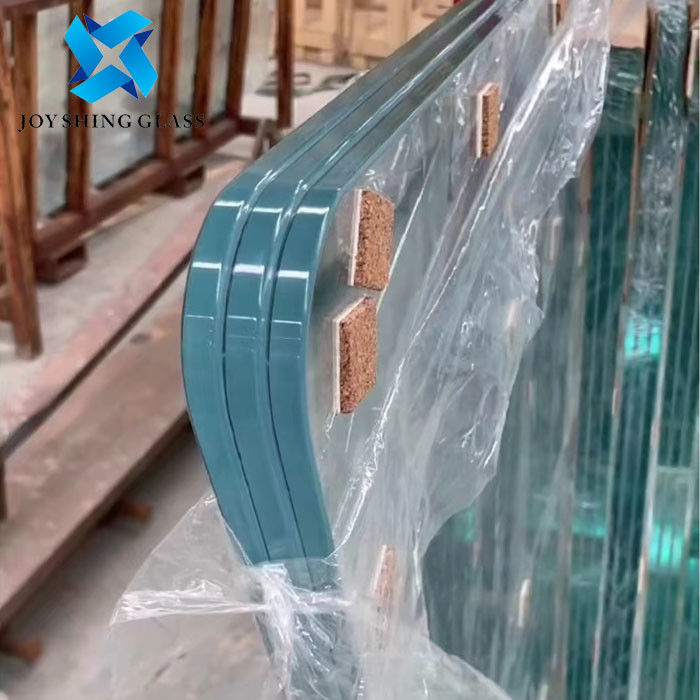

Product Photo
1. 14.76mm tempered laminated glass
2. Quality control of acoustic PVB laminated glass: Ensure the high quality of products.
Applications
1. Buildings near noisy environments: Acoustic PVB laminated glass is commonly used in buildings located near busy roads, airports, or other sources of high noise levels. It helps to reduce the transmission of external noise, creating a more comfortable and peaceful indoor environment.
2. Auditoriums and concert halls: These venues require excellent sound insulation to minimize external noise and enhance the acoustic experience. Acoustic PVB laminated glass is used in windows, partitions, and other architectural elements to provide sound control and maintain optimal sound quality.
3. Recording studios: To achieve superior soundproofing, recording studios utilize acoustic PVB laminated glass in their windows and doors. It helps to isolate the studio from external noise and ensures a controlled acoustic environment for recording purposes.
4. Educational institutions: Schools and universities often employ acoustic PVB laminated glass to reduce noise distractions and create a more conducive learning environment. It can be used in classrooms, libraries, and administrative areas to enhance privacy and sound insulation.
