Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Digital Printing Glass JY-DP108
Contact Us

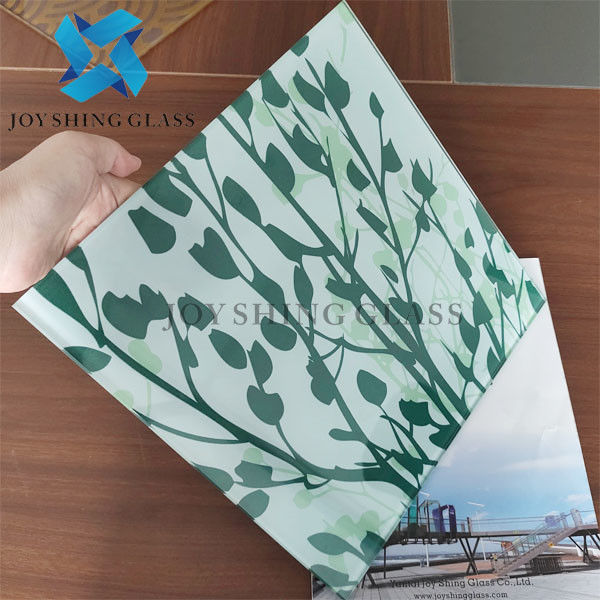

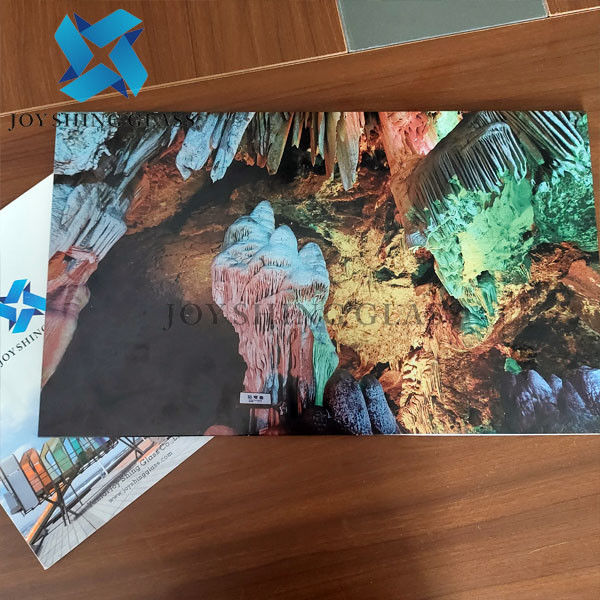

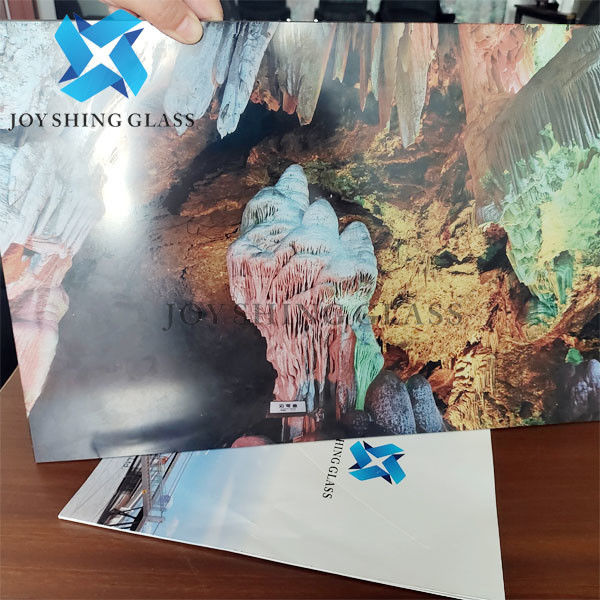

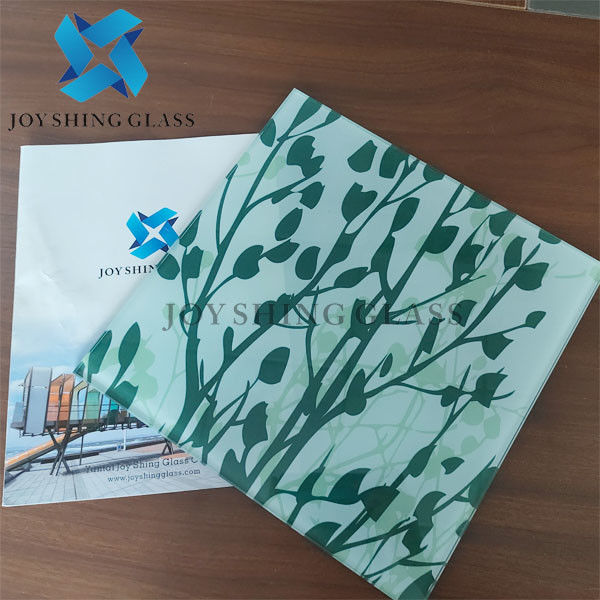

Digital Printing Laminated Glass 6mm 8mm 10mm Decorative Glass
Digitally printed laminated glass is laminated glass that uses digital ceramic printing technology. It is composed of a layer of PVB film sandwiched between two layers of glass, and is a kind of safe architectural decorative glass.
Features:
1. Various colors and patterns, strong decoration.
2. High precision: accurate printing, realistic and realistic patterns can be realized
3. Can be customized according to customer needs and design requirements.
4. Safety: The laminated glass will not produce sharp fragments when it breaks, and the film will firmly stick the fragments together, reducing the risk of personal injury.
5. Sound insulation: PVB film has good sound insulation performance, which can reduce noise by 30-40 decibels
6. Anti-ultraviolet and sunshade performance
Joy Shing Glass is a professional glass manufacturer in China. With rich experience, advanced production equipment, mature production technology and strict quality inspection system, we can ensure the high quality and stable supply of products. We can customize product size, thickness, shape, color and other parameters according to customer requirements. Can provide glass deep processing, integrated project solutions, online technical support, free samples, perfect after-sales and other services.
Specification
| Product name | Digital Printing Laminated Glass |
| Model | JY-DP108 |
|
Brand |
Joy Shing |
| Structure | Glass+PVB film+Glass |
| Glass thickness | 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm etc |
| PVB thickness | 0.76mm,1.14mm,1.52mm,etc. |
| Size | 2140*3300mm,2140*3660mm, 2440*3300mm,2440*3660mm,etc. |
| Glass Color | Ultra clear, Red, Yellow, Blue, Green, Grey, Bronze, Euro Grey, White, Black, Orange, etc. |
| PVB color | White,clear,green,grey,blue,etc. |
| Shape | Flat, curved |
| Processing | Cutting, drilling, edge, safety corners, insulated,coated, etc. |
|
Edge |
Flat Edge, Seamed Edge, Polished Edge, Bevelled edge, |
| Drillilng | normal holes or counterbore (according to customer’s requirements) |
| Pattern | customized patterns |
|
Packaging Details |
Sea Worthy Strong Wooden Crates. Iron belts for consolidation. Use protective paper film and soft wood pad for separate glass avoid breaking. |
|
Delivery Time |
Generally 1-2 weeks, depend on order quantity. |
|
Sample |
Free samples available |
|
Warranty |
10 years |
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
Application

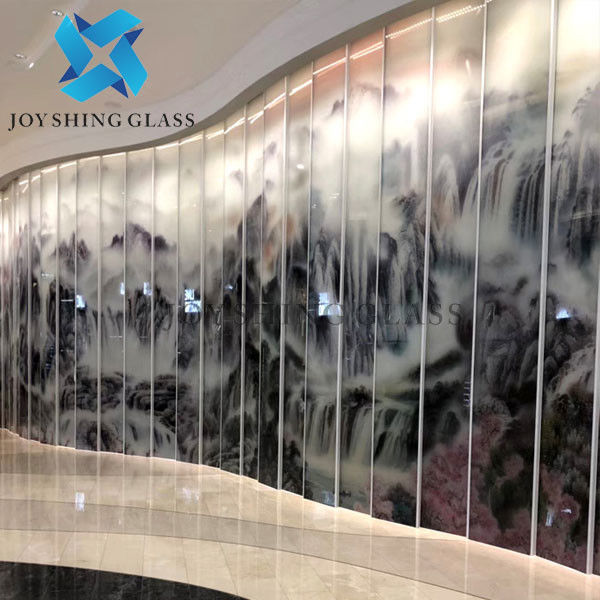

Digital printing laminated glass is suitable for glass curtain walls, background walls, partitions, screens, doors and windows, art decorative glass, furniture glass, etc. in auditoriums, art exhibition centers, commercial plazas, hotels, office buildings, villas.
