Silk Screen Printing Insulated Glass

Silk Screen Printing Insulated Glass

Silk Screen Printing Insulated Glass

21A Hollow layer Insulated Glass

Flat Tempering Silk Screen Glass

Place of Origin:

CHINA

Brand Name:

JOYSHING

Certification:

CE,ISO, CSi,SGCC

Model Number:

Silk Screen Glass JY-SP109

Contact Us

Request A Quote
Product Details
Name:
Silk Screen Printing Insulated Glass
Model:
JY-SP109
Size:
300*300mm To 3300*22000mm
Structure:
Glass + Hollow Layer + Glass
Glass Thickness:
3mm To 19mm
Glass Color:
Clear, Green, Grey, Blue, Dark Grey, Dark Blue, Bronze, Brown, Etc.
Hollow Layer Thickness:
6A,9A,12A,16A,19A,21A,etc.
Gas:
Air Or Argon
Glass Tempering Type:
Flat Tempering And Curved Tempering
Warranty:
10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 wooden box
Price
Usd/1-999/sqm
Packaging Details
Wooden box
Delivery Time
1-2weeks
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
3000sqm/day
Product Description

What is silk screen printing insulated glass?



Silk screen printing insulated glass is also called Tempered silk screen insulated glass, silk screen insulating glass, which adopts the manufacturing process of tempered silk screen and hollow. It is an art glass with excellent sound insulation, heat insulation, energy saving and decoration. Silk-screen glass can be further processed into laminated glass, coated glass, etc. according to the needs of use. Silkscreen patterns include lines, dots, gradient patterns and customized patterns, etc.


Joy Shing Glass is a professional glass manufacturer in China. It has rich experience, advanced production equipment, mature production technology, and strict quality inspection system to ensure high-quality products and stable supply. We can customize product size, thickness, shape, color and other parameters according to customer requirements. Can provide glass deep processing, integrated project solutions, online technical support, free samples, perfect after-sales and other services.



Specification

Product name Silk Screen Printing Insulated Glass
Model JY-SP109

Brand

Joy Shing

Tempering Type Flat or bent tempered glass is available
Glass Structure Glass + Hollow layer + Glass
Glass Thickness

3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm,etc.

Size

300*300mm to 3300*22000mm.

Can be customized according to customer requirements

Glass Color Clear, Green, Grey, Blue, Dark grey, Dark blue, Bronze, Brown, etc.
Hollow layer thickness

6A,9A,12A,16A,19A,21A,etc.

Gas filling Air or Argon
Shape

Round, Rectangular, Square, customized.

Pattern

Dot pattern, Line pattern, and any other customized patterns

Further Process Laminated, Coated, etc.

Packaging

Sea Worthy Strong Wooden Crates.

Use protective paper film and soft wood pad for separate glass avoid breaking.

All glass are packed in strong wooden crates,nailed and strapped.

Sample

Free samples available

Warranty

10 years

Delivery Time

Generally 15-20 days, depend on order quantity.

Payment Terms

30% deposit, and balance before shipment by T/T

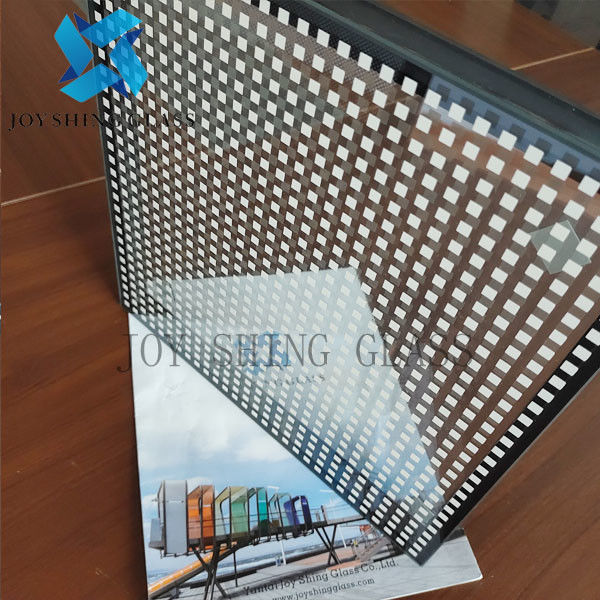

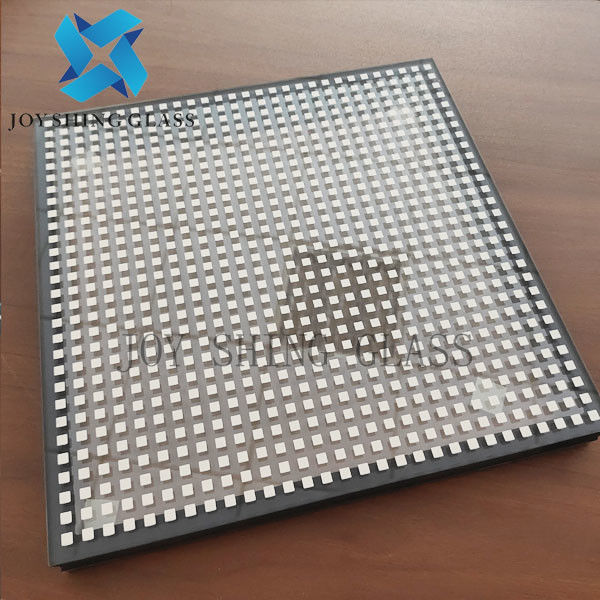

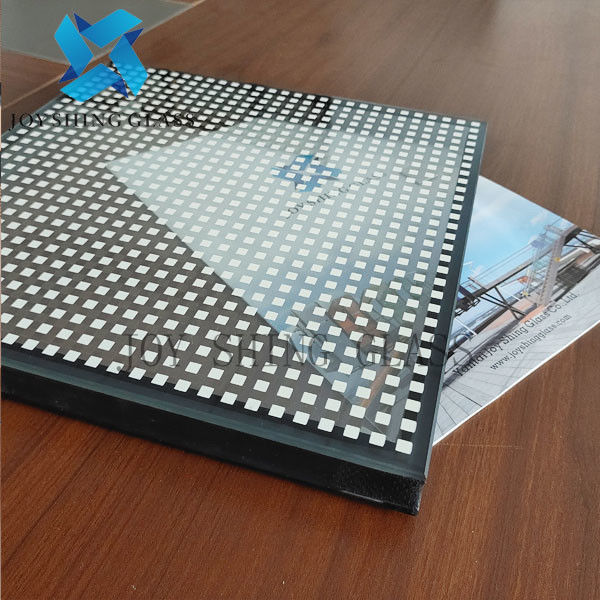

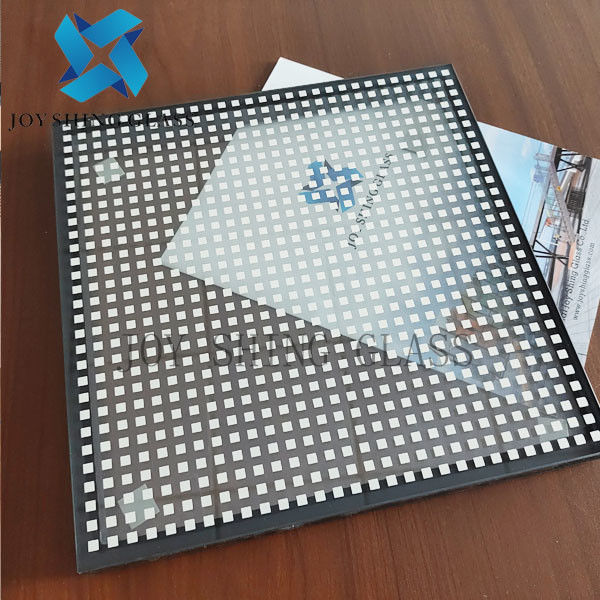

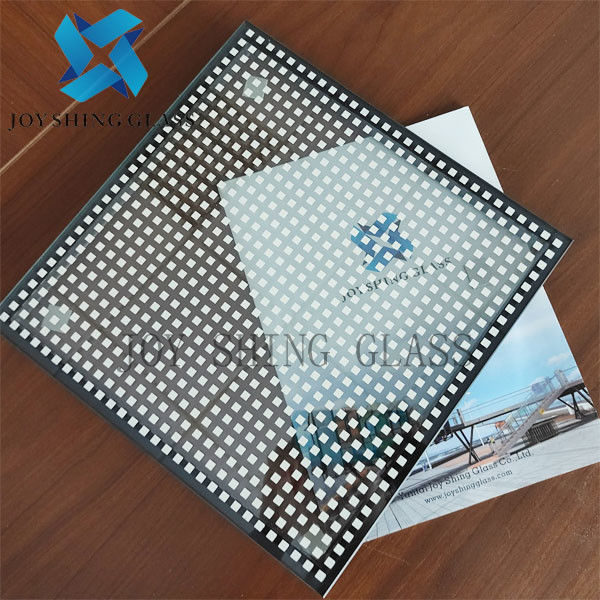

Product photo

Tempered silk screen insulated glass

Silk Screen Printing Insulated Glass 1Silk Screen Printing Insulated Glass 2

Features of silk screen printing insulated glass
1. Sound insulation: hollow glass structure, filled with inert gas, can effectively isolate noise transmission and provide a quiet environment
2. Heat insulation and energy saving: silk screen insulating glass can effectively reduce the conduction of indoor and outdoor temperature, and reduce the energy consumption of air conditioning and heating
3. Good decorative effect: Through silk screen printing technology, different patterns of different colors can be printed on the glass surface to increase the beauty of interior decoration
4. Environmental protection: lead-free glaze and no fading
5. Safety: The glass has been tempered for higher strength and impact resistance. Even if the glass is broken, the glass fragments will be broken into small obtuse particles, which will not hurt people.
6. Light material: reduce the load of the building structure and facilitate construction



Application
Silk screen insulated glass is widely used in residential buildings, restaurants, hotels, office buildings, schools, hospitals, shops, commercial centers and other building curtain walls, doors and windows, refrigerator glass. Play a good role in decoration, sound insulation, heat insulation, and energy saving.
Silk Screen Printing Insulated Glass 3
Silk Screen Printing Insulated Glass 4

Silk Screen Printing Insulated Glass 5Silk Screen Printing Insulated Glass 6Silk Screen Printing Insulated Glass 7Silk Screen Printing Insulated Glass 8Silk Screen Printing Insulated Glass 9Silk Screen Printing Insulated Glass 10Silk Screen Printing Insulated Glass 11

FAQ

Q: What is the MOQ?
A: Generally, there is no MOQ for processed glass, but if you want to receive the best price, the bigger quantity, the better price.

Q: Can I have a small sample to verify the quality?
A: Sure, we welcome samples to be tested and checked for quality.

Q: Can I visit your factory?
A: Yes, we welcome all of the customers to visit our factory when you have real requirements, we will take you to each of our production lines, and discuss orders in our office.

Q: Do you offer a guarantee for the products?
A: Yes, generally, we offer 10 years warranty for processing glass based on your normal uses, we advise you use it in the right way can keep your product's service life a long time .

Q: How do you control the quality of your products?
A: We have standard management in the factory based on the ISO system, and train our staff regularly, our production department will choose high-quality materials for glass strictly, for finished excellent products. And we have QC for each process, once find any problem, we will replace the glass, to make sure every piece of glass go to the customer's warehouse is in good condition.
