Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Vacuum Glass JY-IV119
Contact Us
Vacuum Soundproof Glass (ie, vacuum glass, vacuum insulation glass), which is the structure of two tablets of flat glass around, pumping into vacuum and sealing the exhaust holes, the gap between the two glass is 0.15mm or 0.3 mm. To optimize the function, one of them is LOW-E glass, so that it has good thermal insulation, sound insulation, and thermal insulation.
Joy Shing Glass can produce size, thickness, color, and shape according to customer requirements.We can produce composite vacuum glass according to the environment of customers, such as: vacuum tape glass, vacuum hollow glass, vacuum -empty tape glass, tempered vacuum glass, etc.Our company has rich industry experience and engineering cases, which can provide your project with integrated glass solutions, online technical consulting, installation guidance, after -sales service, etc.
Specification
|
Product name
|
Vacuum Soundproof Glass
|
|
Model
|
JY-IV119
|
|
Shape
|
Flat,curved,custom
|
|
Thickness
|
Custom.
|
| Single glass thickness | 3mm,4mm,5mm,6mm |
|
Glass Type
|
LOW-E Glass,Tempered glass,clear glass,etc.could be produced as your required
|
|
Size
|
Mini size:300*300mm max size:1500*2500mm Custom
|
|
Vacuum layer thickness
|
0.15mm,0.3mm
|
| Composite process | Hollow, laminated |
| Lead time |
Within 15 days |
|
Warranty
|
25 years
|
|
Project solution
|
Total solution for projects, Others
|
|
Packaging Details
|
Sea Worthy Strong Wooden Crates
|
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
| Glass structure | Thickness | U Value W/m²· K | SHGC | Visible Light | Shading Coefficient(SC) | Sound Isolation (dB) | |
| Transmittance % | Reflectivity% | ||||||
| 4TL+0.3V+4T | 8.3 | 0.43 | 0.59 | 81 | 15 | 0.69 | 36 |
| 5TL+0.3V+5T | 10.3 | 0.5 | 0.65 | 77 | 12 | 0.75 | 39 |
Remark:
4T: 4mm tempered glass ; 4TL: 4mm Low-e tempered glass ;0.3V: 0.3mm vacuum layer ;
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.
Advantages of vacuum soundproof glass
1. Sound insulation:
The vacuum layer of the vacuum glass effectively blocks the transmission of sound. The sound insulation amount of the vacuum glass can reach 39DB, the composite vacuum glass can reach 42DB, and the hollow glass is about 28DB.
2. Insulation:
The heat transmission is achieved through three ways: heat conduction, convection and thermal radiation. Vacuum glass has almost no gas molecules because there is a vacuum layer. Therefore, heat transfer and current heat transfer are greatly reduced. At the same time, low-radiation film (LOW-E) glass has also greatly improved thermal radiation performance.
The thermal insulation performance of Joy Shing vacuum glass is 2-4 times the hollow glass, which is 6-10 times that of single-layer glass
3. Anti-condensation:
There is no gas inside the vacuum glass, so there will be no "internal condensation and fogging"

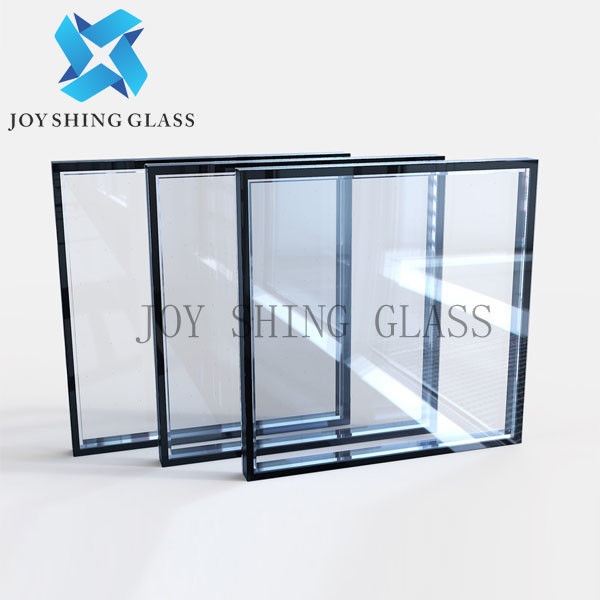

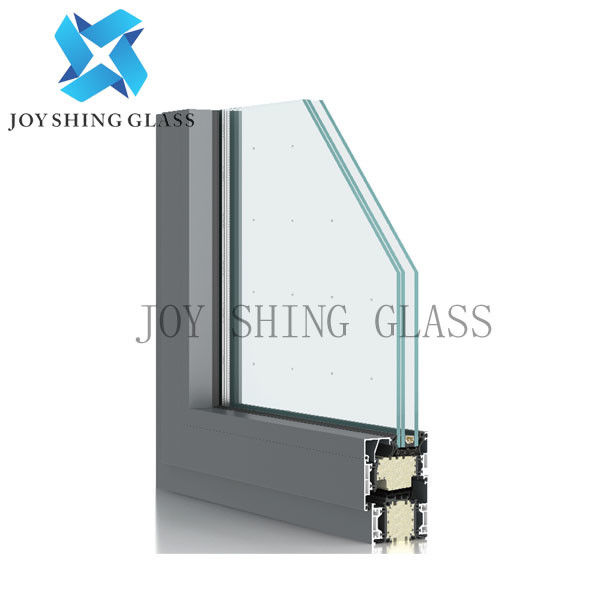

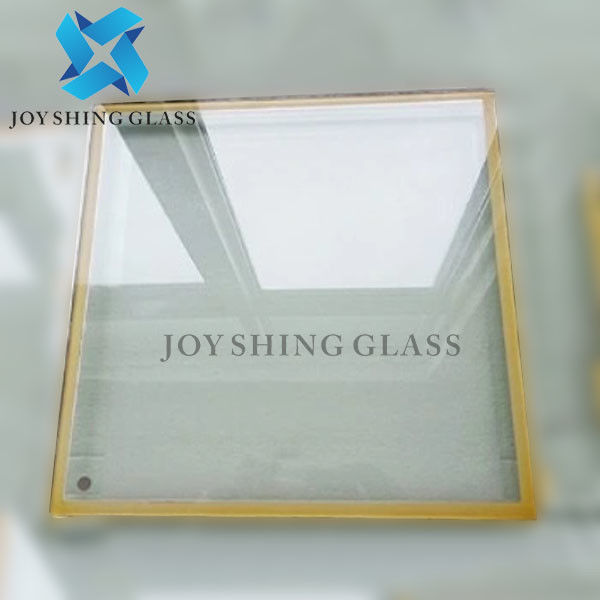

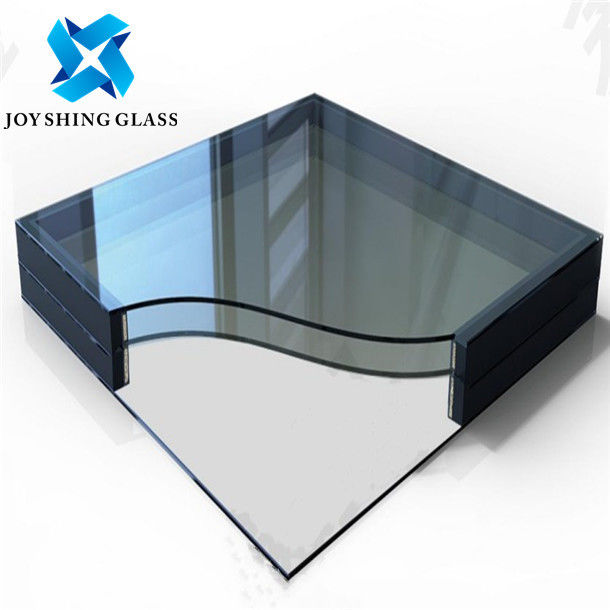

Product photo
Application fields of vacuum glass

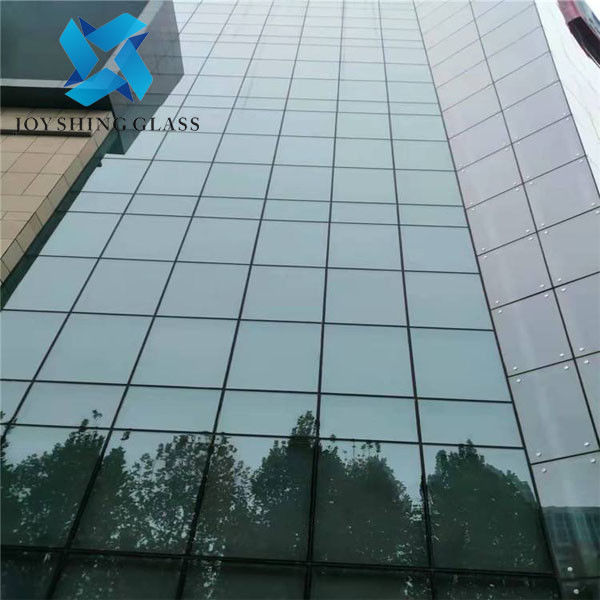

Vacuum glass is widely used in many fields such as building energy saving, noise reduction in homes and public buildings (quiet room), high-end home appliances, cold chain, etc.
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc.
