Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Vacuum Glass JY-I115
Green Curved Insulating Glass Customized Double Tempered Safety Insulated Glass
Insulating glass is a glass product with two or more pieces of glass evenly separated by effective support and bonded and sealed around, so that there is a dry gas space between the glass layers. Its main materials are glass, aluminum frame, molecular sieve, butyl glue and sealant.The glass can be ordinary white glass,tempered,coating (including LOW-E),bent tempered and laminated glass, etc.
The minimum thickness of the gas interlayer of the safety insulated glass should not be less than 6mm, otherwise it will not function as thermal insulation. However, the thickness should not be too large, if it is too large to make the insulated glass too thick. The gaps of the safety insulated glass are currently divided into 6, 9, 12, 16, 19,21,25mm.
Specification
Product name
|
Green Curved Insulating Glass
|
Model
|
JY-I115
|
Size
|
300*600mm to 3400*20000mm,Custom
|
Thickness
|
28mm
|
Structure
|
6+16A+6mm,Hollow
|
Single Glass thickness |
6mm
|
Glass Color
|
Green, other color such as bronze,grey, blue,etc.
|
Spacer width
|
Aluminum 16mm
|
Lead time |
Within 15 days |
Warranty
|
5 years
|
Insulating Gas
|
Argon
|
Advantage |
Sound insulation Heat insulation Insulation |
Packaging Details
|
Sea Worthy Strong Wooden Crates
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.

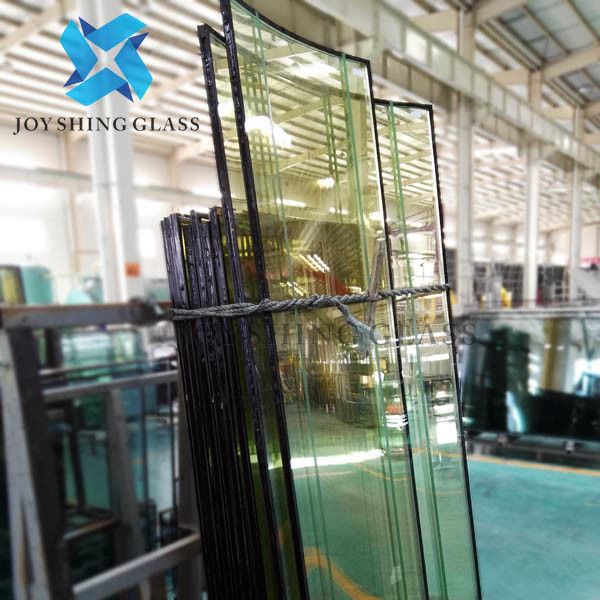

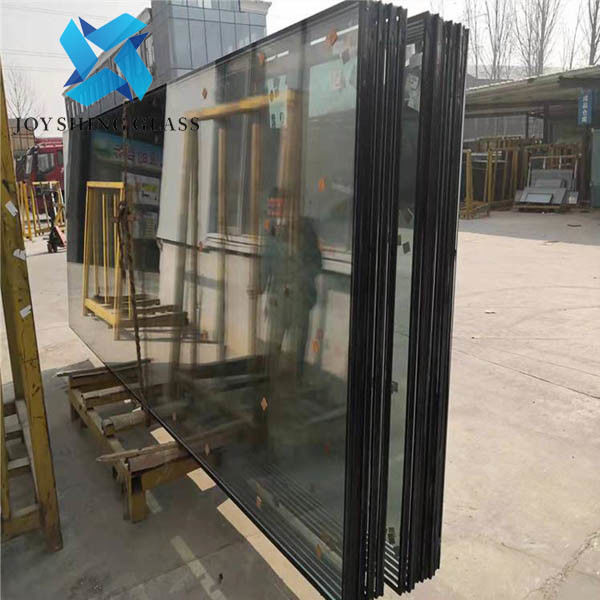

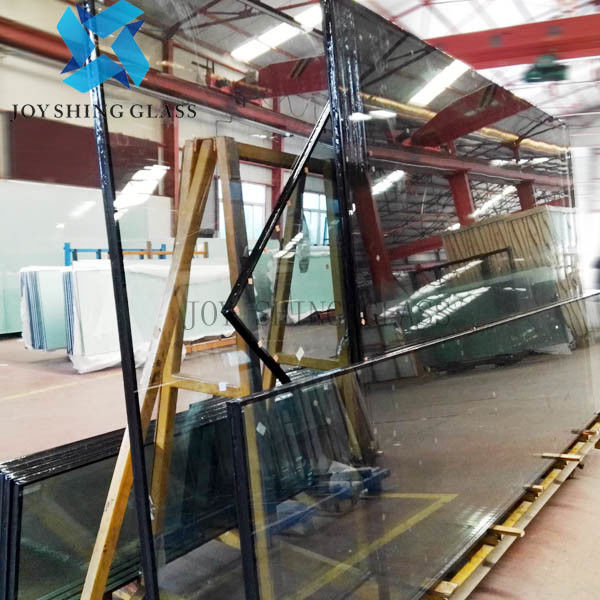

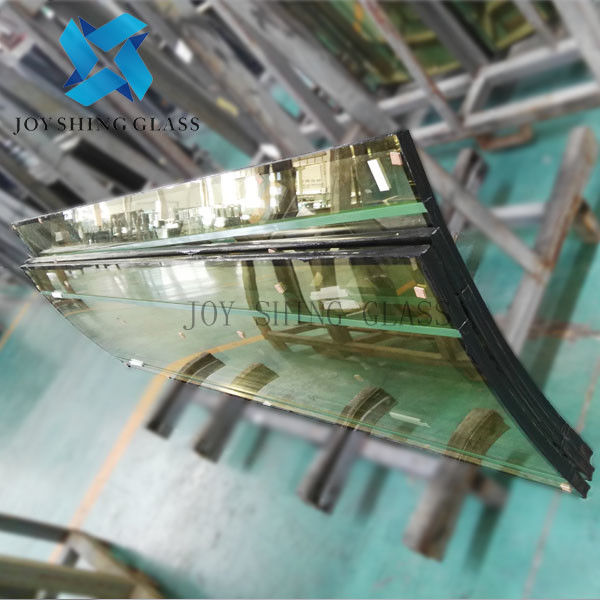

Photo of insulating glass
Application of curved insulating glass
1. Skylight, storefront, office indoor partition;
2. Shower door, sliding door, swinging door;
3. Dining table, glass furniture;
4. Window, curtain wall, stairs, glass wall, glass railing etc.
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc.
