Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Insulated Glass JY-I114
Contact Us
Double Pane Insulated Glass 5+9A+5mm Clear Insulated Coated Glass

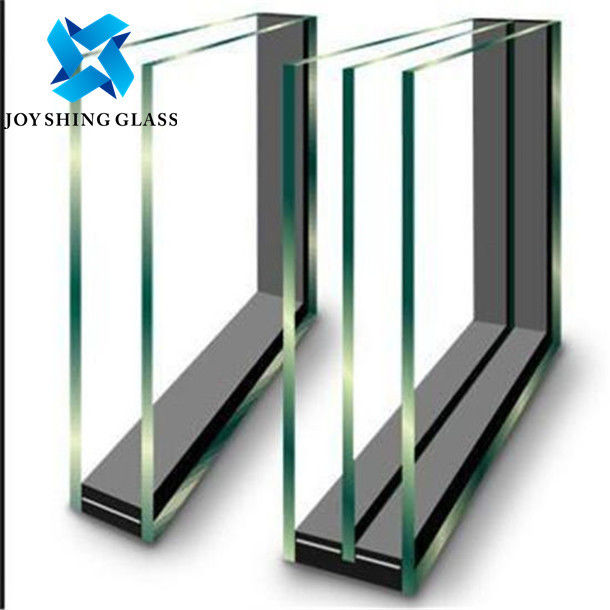

Joy Shing Insulated Glass units(I.G.U.),also known as double glazing units(or double-pane, and increasingly triple glazing/pane) is made of two or more pieces of glass sheets separated by aluminum frame filled with molecular sieve(desiccant).The frame is stuck and sealed by butyl glue on the glass surfaces and Thiokol or silicagel seals all outside edges.Filling gas inside the glass cavity can strengthen its sound and heat insulation properties efficiently.
We can provide various types of insulating glass according to customer requirements: tempered insulating glass (high hardness of glass), laminated insulating glass (high safety), LOW-E insulating glass (energy saving, corrosion resistance) and so on.
Specification
|
Product name
|
Double Pane Insulated Glass
|
|
Model
|
JY-I114
|
|
Size
|
2134mm*3300mm,Custom
|
|
Thickness
|
19mm
|
|
Structure
|
5+9A+5mm,Hollow
|
|
Single Glass thickness |
5mm
|
|
Glass Color
|
Clear, ultra clear,etc.
|
|
Spacer width
|
Aluminum 9mm
|
| Lead time |
15 working days |
|
Warranty
|
5 years
|
|
Insulating Gas
|
Dry air
|
|
Packaging Details
|
Sea Worthy Strong Wooden Crates
Use protective paper film and soft wood pad for separate glass avoid breaking.
|
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.

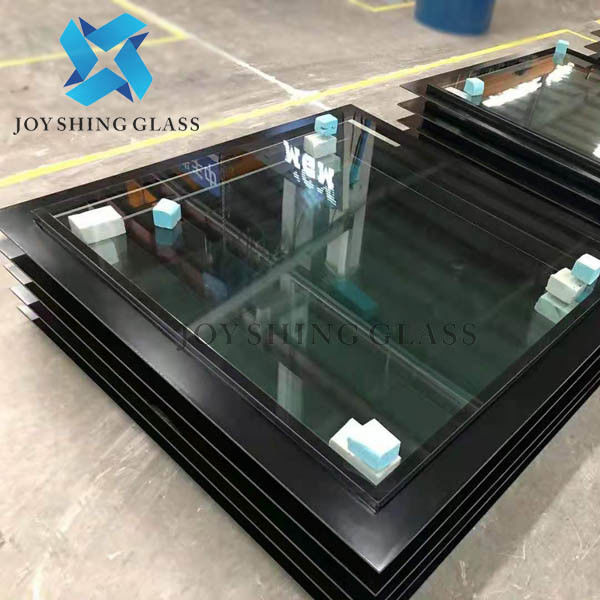

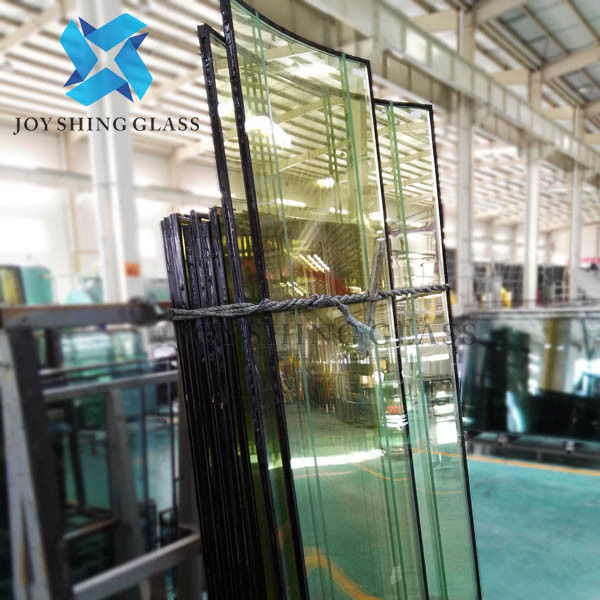

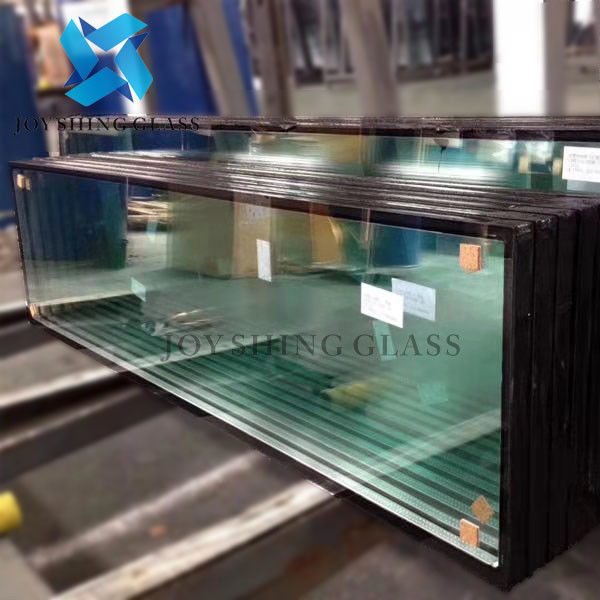

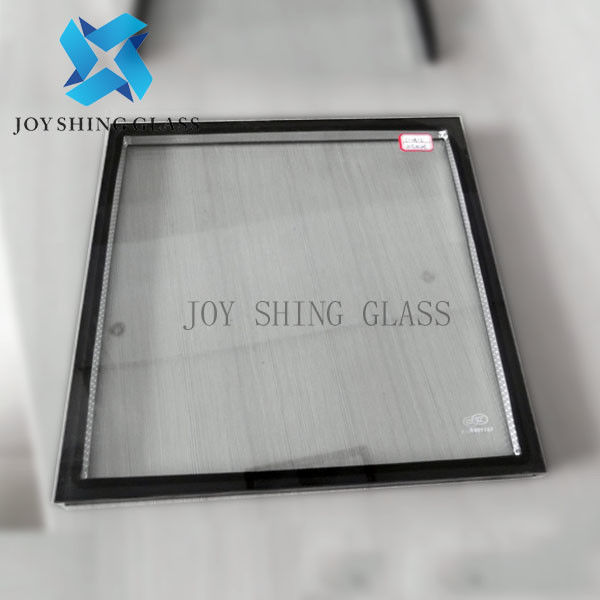

Product photo
Application Fields Of Insulated Glass
Insulating glass is mainly used in buildings that need heating, air conditioning, to prevent noise or condensation, and to avoid direct sunlight and special light. Widely used in residential, hotels, hotels, office buildings, schools, hospitals, shops and other indoor air conditioning occasions. Can also be used for trains, cars, ships, freezer doors and Windows.
