Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Vacuum Glass JY-I112
Double Insulated Glass 6+12A+6mm Low-e Insulating Glass Curtain Wall

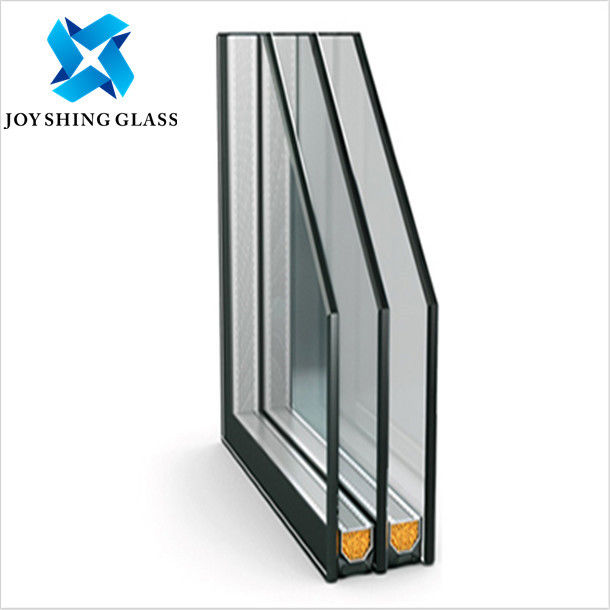

Insulating glass is a glass assembly made of two or more pieces of glass, separated by an aluminum frame filled with high-efficiency molecular sieve adsorbents to form a certain width of space, and the edges are sealed and bonded with high-strength sealant. Ordinary transparent glass, tinted glass, heat-reflective coated glass, Low-E glass, laminated glass, tempered glass, hot-bending glass, etc. can be used as the substrate of insulating glass according to needs.
Specification
Product name
|
Double Insulated Glass
|
Model
|
JY-I112
|
Size
|
1000*1400mm,Custom
|
Thickness
|
24mm
|
Structure
|
6+12A+6mm,Hollow
|
Single Glass thickness |
6mm
|
Glass Color
|
Bule,grey, green, bronze,etc.
|
Spacer width
|
Aluminum 12mm
|
Lead time |
Within 15 days |
Warranty
|
5 years
|
Insulating Gas
|
Argon
|
Packaging Details
|
Sea Worthy Strong Wooden Crates
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.
Advantages of Insulated Glass
Safety: In the case of using the original glass of the same thickness, the wind compressive strength of insulating glass is 1.5 times that of ordinary monolithic glass
Heat insulation: In addition to sealing dry air in the middle of two layers of glass, insulating glass should also be coated with a layer of special metal film with good thermal performance on the air layer side of the middle of the outer glass, so as to achieve greater heat insulation effect.

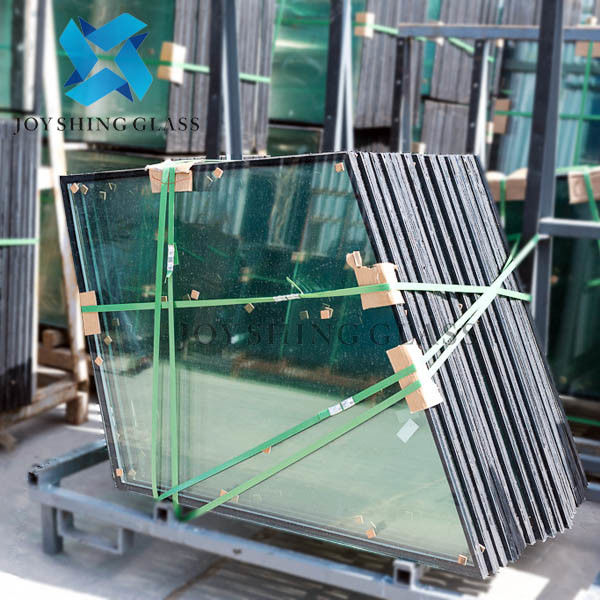

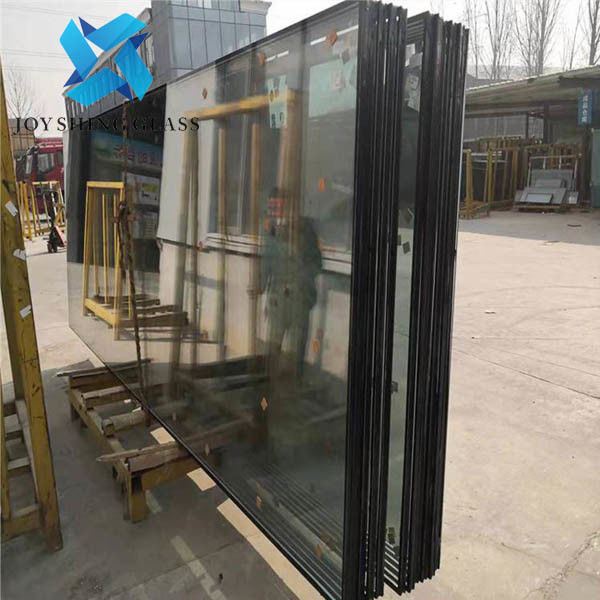

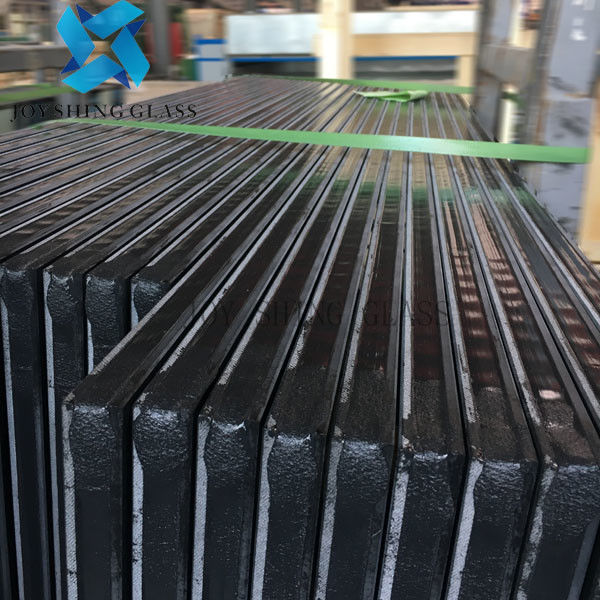

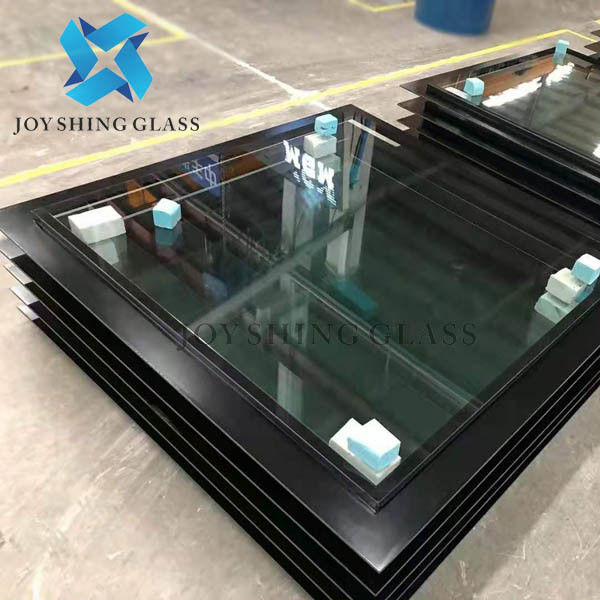

Product photo
Application Fields Of Insulated Glass
It is suitable for public facilities such as office buildings, exhibition rooms, libraries, and special buildings that require constant temperature and humidity, such as computer rooms, precision instrument workshops, and chemical factories.
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc.
