Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Vacuum Glass JY-I111
Contact Us
Insulated Tempered Glass 3+6A+3mm Soundproof Insulating Glass Doors And Windows
Insulated glass consists of two or more pieces of glass, a certain space is separated by an aluminum frame filled with high-efficiency molecular sieves, and the edges are sealed with high-strength sealant. It has better sound insulation, heat insulation and heat preservation performance.Its main materials are glass, aluminum frame, molecular sieve, butyl glue and sealant.
The minimum thickness of the gas interlayer of the insulating glass should not be less than 6mm, otherwise it will not function as thermal insulation. However, the thickness should not be too large, if it is too large to make the insulated glass too thick. The gaps of the insulated glass are currently divided into 6, 9, 12, 16, 19,21,25mm.
Specification
|
Product name
|
Insulated Tempered Glass
|
|
Model
|
JY-I111
|
|
Size
|
600*700mm,Custom
|
|
Thickness
|
12mm
|
|
Structure
|
3+6A+3mm,Hollow
|
|
Single Glass thickness |
3mm
|
|
Glass Color
|
Clear, ultra clear, grey, green, bronze,etc.
|
|
Spacer width
|
Aluminum 6mm
|
| Lead time |
Within 15 days |
|
Warranty
|
5 years
|
|
Insulating Gas
|
Dry air, Argon
|
|
Packaging Details
|
Sea Worthy Strong Wooden Crates
|
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.
Advantages of Insulated Glass
1. High safety performance: 1.5 times stronger shocking resistance than common glass.
2. Heat insulation: In addition to sealing dry air in the middle of two layers of glass, insulating glass should also be coated with a layer of special metal film with good thermal performance on the air layer side of the middle of the outer glass, so as to achieve greater heat insulation effect.
3. Anti-condensation and reducing cold radiation: Inside the insulated glass, there is a desiccant that can absorb water molecules, and the gas is dry; when the temperature is lowered, condensation does not occur inside the insulated glass, and the dew point temperature of the outer surface of the glass also rises.

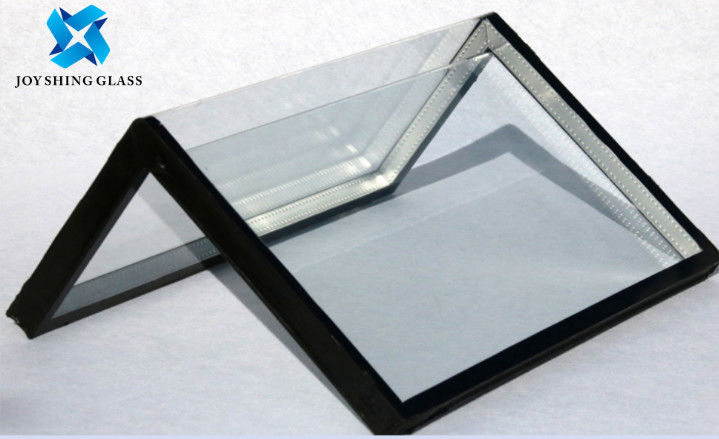

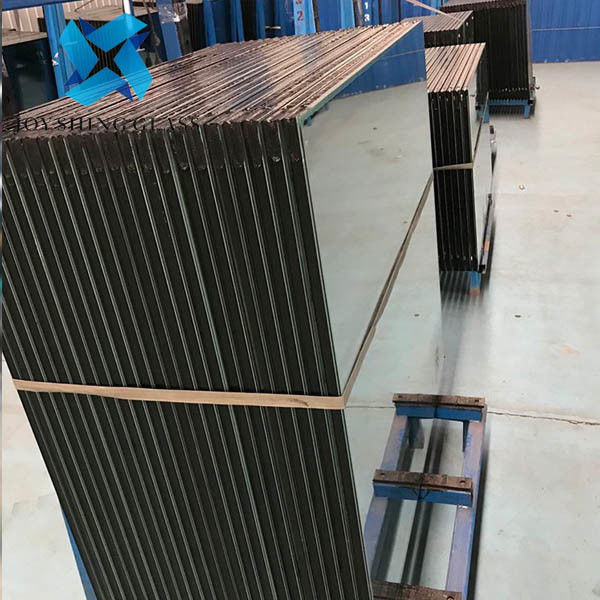

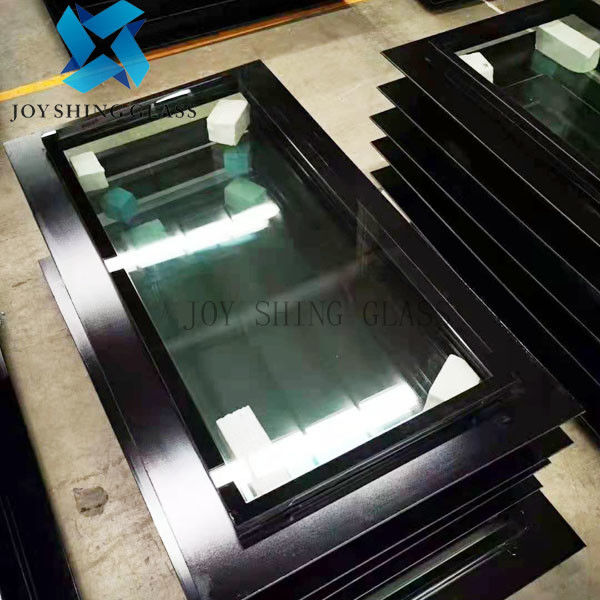

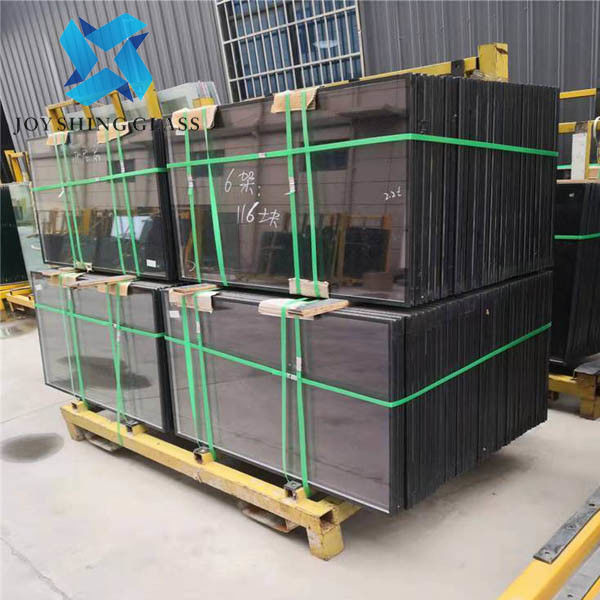

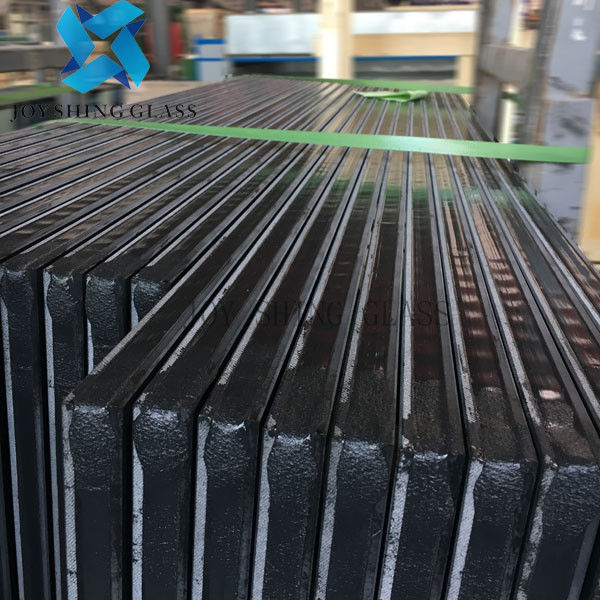

Product photo
Application Fields Of Insulated Glass
The insulating tempered glass is widely used in glass curtain walls, facades, doors, windows, decorative and place with glass in automobile, refrigerator, ships, aircrafts and instruments.
