Tempered Vacuum Insulated Glass 4T+12A+4TL+0.3V+4T LOW-E Vacuum Glass
Tempered vacuum glass is to seal the surroundings of two pieces of tempered glass, evacuate the gap and seal the exhaust hole. The gap between the two pieces of glass is 0.3mm. In order to optimize the function, one of them is LOW-E tempered glass, which makes it have good thermal insulation, sound insulation and heat insulation performance. Tempered vacuum glass can be compounded and processed into tempered vacuum laminated glass, tempered vacuum insulated glass, etc.
Among them, tempered vacuum insulated glass has better heat insulation, sound insulation and energy saving properties than ordinary vacuum glass. It is especially suitable for doors, windows, curtain walls, passive house renovation, energy-saving buildings, etc. in high-end residences, villas, and commercial buildings.
Specification
|
Product name
|
Tempered Vacuum Insulated Glass
|
|
Model
|
JY-IV112
|
|
Shape
|
Flat
|
|
Glass thickness
|
24.3mm
|
|
Size
|
300mm*300mm to 1500mm*2500mm,Custom
|
|
Glass Color
|
Clear,extra clear,gery,bronze,blue,etc.
|
|
Structure
|
4T+12A+4TL+0.3V+4T
|
| Lead time |
Within 15 days |
|
Warranty
|
25 years
|
|
Certificate
|
CE,ISO, CSi, SGCC
|
|
Packaging Details
|
Sea Worthy Strong Wooden Crates
Use protective paper film and soft wood pad for separate glass avoid breaking.
Can be packaged according to customer requirements
|
|
Payment Terms |
30% deposit, and balance before shipment by T/T |
| Structure | Thickness mm | U Value W/m²· K | SHGC | Shading Coefficient |
Weighted sound insulation dB |
| 4T+12A+4TL+0.3V+4T | 24.3 | 0.42 | 0.45 | 0.52 | 42 |
T-Tempered clear glass; TL-tempered Low-E glass; V-vacuum space; A-air space.
Above data are for reference only. parameters for a specific product needs to be calculated separately.
For parameters related to a specific product. please refer to the data provided by Joy Shing Glass.
Advantages of Tempered Vacuum Insulated Glass
1. Insulation:
The U value can be as low as 0.48W/(m-K), and the heat insulation effect of 8.3m thick vacuum glass exceeds that of 1.5m thick brick wall.Joy Shing tempered vacuum glass effectively isolates heat transfer, and its thermal insulation performance is 2-4 times that of insulating glass and 6-10 times that of single glass.
2. Sound insulation:
The weighted sound insulation of tempered vacuum glass reaches 39 decibels, and the weighted sound insulation of general insulating glass is about 28 decibels
3. Tempered vacuum insulating glass has excellent anti-condensation function

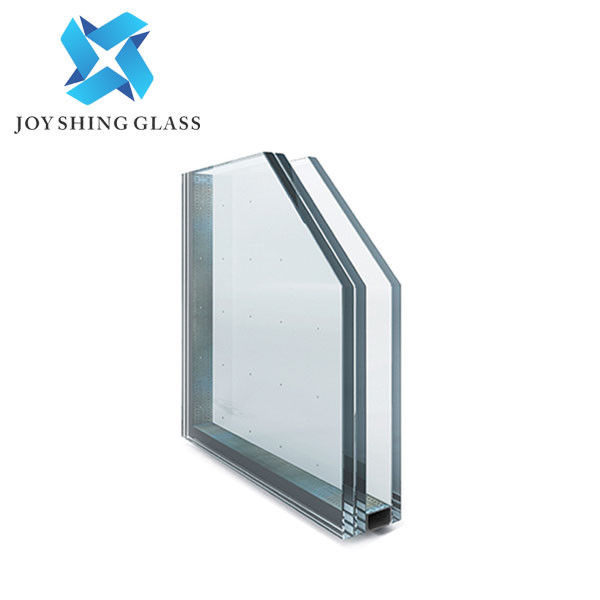

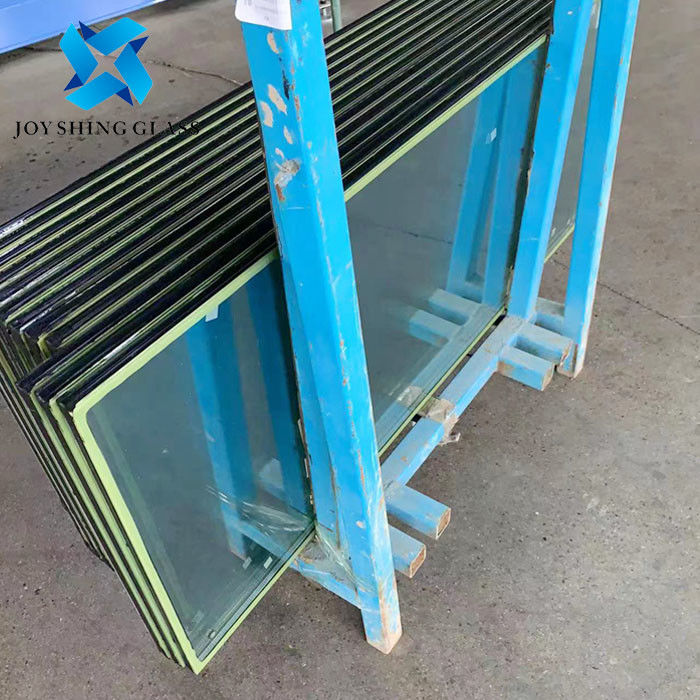

Product photo
Application pictures Of Vacuum Glass
Tempered vacuum insulated glass is particularly suitable for high-end residences, villas, commercial buildings, energy-saving buildings, green buildings and other doors and windows, curtain walls, passive house renovation, etc.
