Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Bullet-proof Glass JY-BF107
Contact Us
Safe Special Glass 10mm-600mm Bulletproof Laminated Glass For Bank Counter
Bulletproof laminated glass is made of more than two pieces of glass, and the middle layer is glued with pvb film under certain temperature and pressure. It has bulletproof ability and light transmission.
Features
1. Bulletproof: The performance of bulletproof laminated glass depends on its total thickness and bullet energy.
2. Safety: Broken glass fragments are firmly bonded to the PVB interlayer, reducing the risk of fragments hurting people.
3. UV Control: Shields almost 99% of harmful rays.
4. Good sound insulation effect
5. Light transmittance, keep a clear view
Specification
| Product name | Bulletproof Laminated Glass |
| Model | JY-BF107 |
| Brand | Joy Shing |
| Popular Thickness | 5mm+PVB+12mm+PVB+5mm |
| 6mm+PVB+12mm+PVB+6mm | |
| 8mm+PVB+8mm+PVB+8mm | |
| 10mm+PVB+10mm+PVB+10mm+PVB+10mm | |
| PVB thickness is based on glass size and client's requirement. | |
| Sizes |
Min size is 300*300mm, standard size are 1830*2440mm, 3300*2140mm etc. custom size |
| Edge&Corner | Many edges and corners are optional. |
| Color | clear,utra clear etc |
|
Sample |
Free samples available |
|
Delivery Time |
Generally 1-2 weeks, depend on order quantity. |
|
Warranty |
10 years |
|
Packaging Details |
Sea Worthy Strong Wooden Crates. Iron Belts For Consolidation. Customized. |
| Level(china) | Gun type | Bullet types | Bullet | Distance | Thickness |
| speed(m/s) | (m) | (mm) | |||
| F64 | 64 type 7.62mm hand gun | al-core 4.72-4.78g | 300-320 | 5 | 19 |
| F54 | 54 type 7.62mm hand gun | steel-core 5.56-5.69g | 420-440 | 5 | 21 |
| F79 | 79 type 7.62mm micro-submachine gun | steel-core 5.56-5.69g | 480-515 | 10 | 25 |
| F56/AK47 | 56 type 7.62mm submachine gun | steel-core 7.75-8.05g | 710-725 | 10 | 35 |
| FJ79 | 79 type 7.62mm Sniper rifle | steel-core 9.45-9.75g | 830-870 | 10 | 40 |
| F53(armour-piercing bullet) | 53 type 7.62mm Sniper rifle | armour-piercing bullet 9.45-9.75g | 830-870 | 10 | 68 |

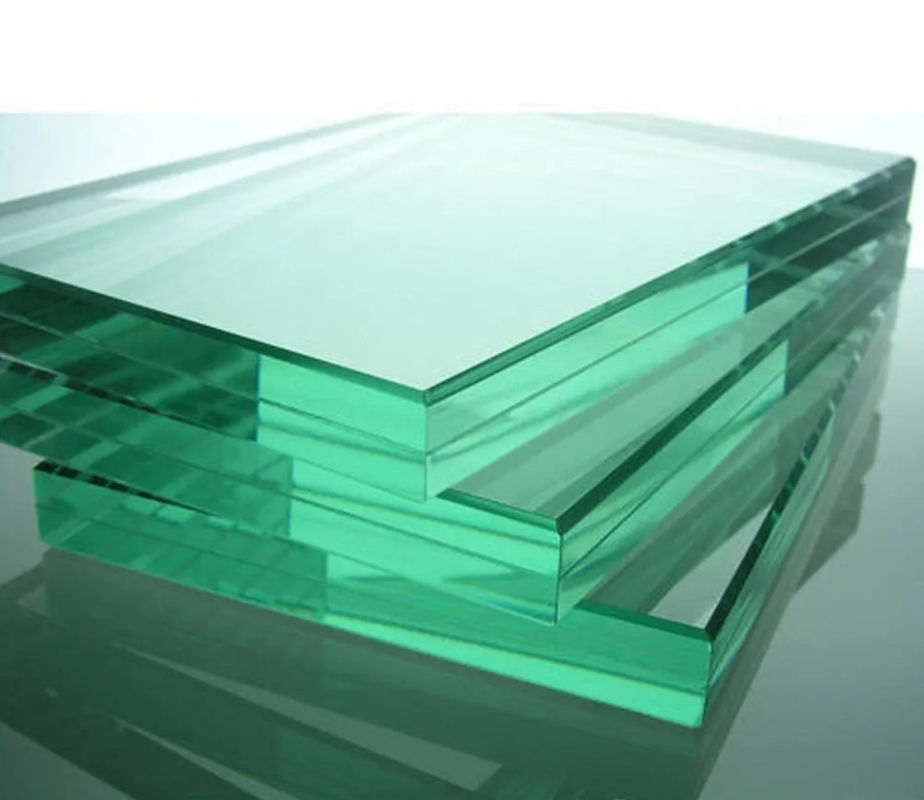

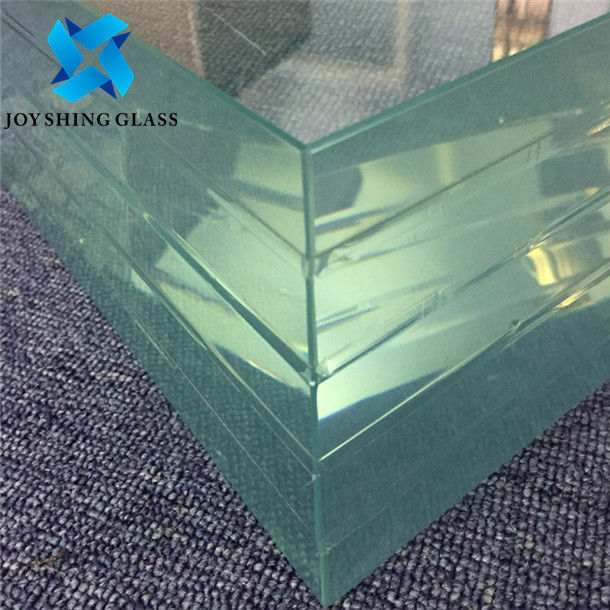

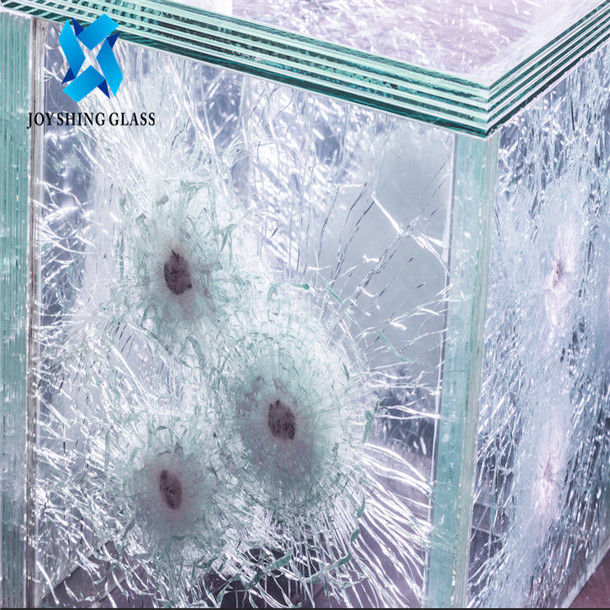

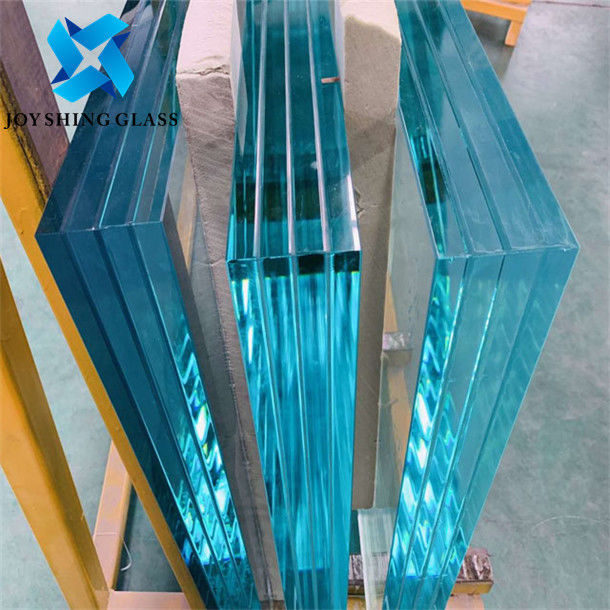

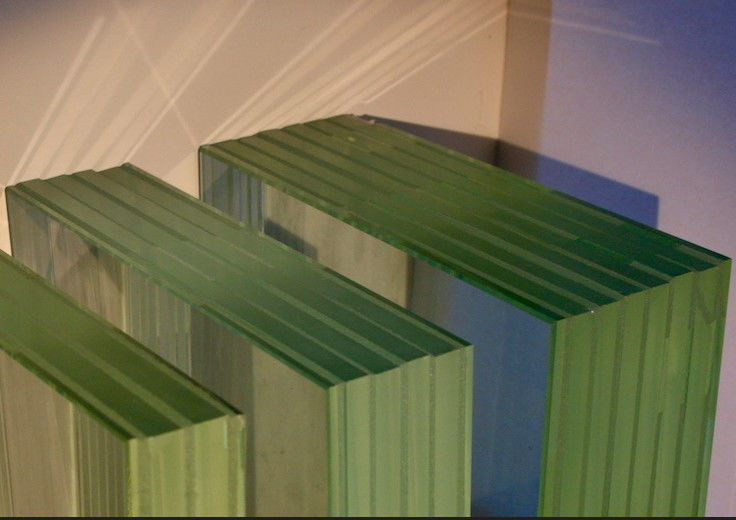

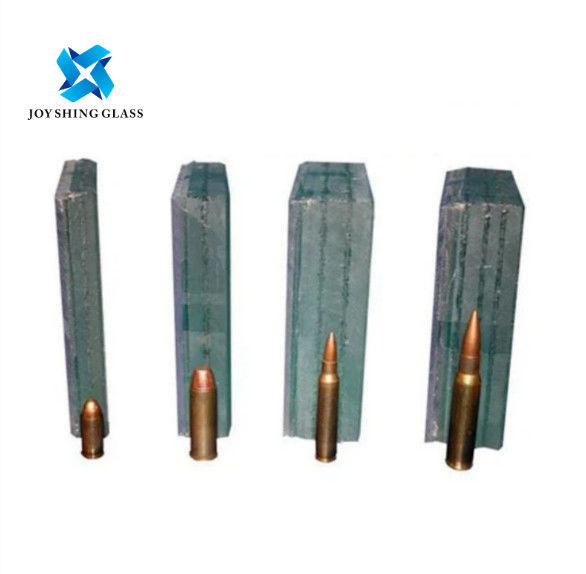

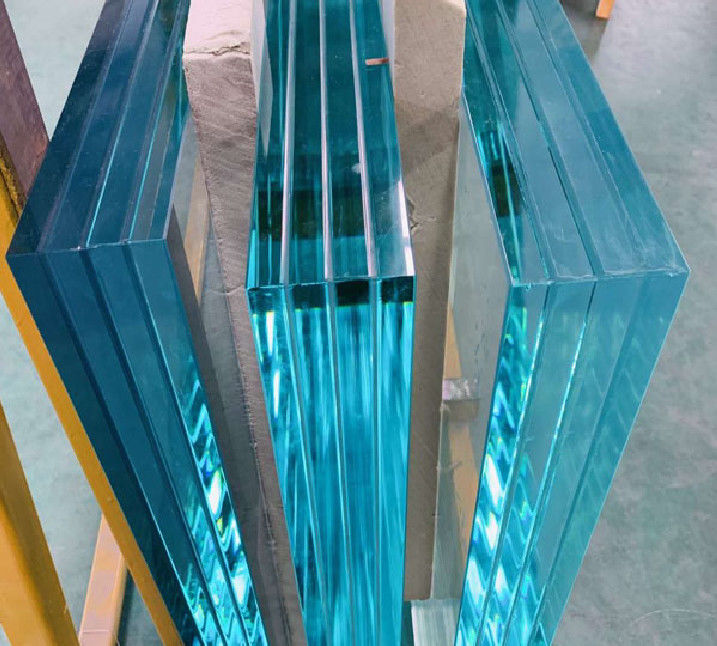

Product photo
