Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Toughened Glass JY-U102
Contact Us
Custom Special U Shape Glass Curtain Wall Facade Architectural Glass
Specification
| Glass Type | U Shaped Glass |
| Model | JY-U101 |
| Material | Float Glass |
| Glass Thickness | 6mm, 7mm, 8mm, etc. |
| Glass Color | Orange, yellow, gold, sky blue, blue, gemstone blue, green and wisteria. |
| Size | Customized |
| Max size | 7500mm L*500mm H |
| Edge Processing | Flat Edge, Grind Edge, Polished Edge, Bevelled edge, Flat Polished Edge, Round Edge |
| Lead Time | Generally 2 weeks, depend on order quantity. |
| Terms of Payment | 30% down payment before production, 70% balance paid before loading. |
| U-profile/Channel Glass Series | K40Series | K60Series | |||||
| U-profile/Channel Glass Series | P23/41/6 | P26/41/6 | P33/41/6 | P50/41/6 | P23/60/7 | P26/60/7 | P33/60/7 |
| Face Width (w) mm | 232mm | 262mm | 331mm | 498mm | 232mm | 262mm | 331mm |
| Face Width (w) inches | 9-1/8" | 10-5/16" | 13-1/32" | 19-5/8" | 9-1/8" | 10-5/16" | 13-1/32" |
| Flange height (h) mm | 41mm | 41mm | 41mm | 41mm | 60mm | 60mm | 60mm |
| Flange height (h) inches | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" | 2-3/8" | 2-3/8" | 2-3/8" |
| Glass thickness(t) mm | 6mm | 6mm | 6mm | 6mm | 7mm | 7mm | 7mm |
| Glass thickness(t) inches | .24" | .24" | .24" | .24" | .28" | .28" | .28" |
| Maximum Length(L) mm | 7000 mm | 7000 mm | 7000 mm | 7000 mm | 7000 mm | 7000 mm | 7000 mm |
| Maximum Length(L) inches | 276" | 276" | 276" | 276" | 276" | 276" | 276" |
| Weight (single layer) KG/m2 | 19.43 | 18.94 | 18.16 | 16.94 | 25.43 | 24.5 | 23.43 |
| Weight (single layer) lbs/sq ft. | 3.98 | 3.88 | 3.72 | 3.47 | 5.21 | 5.02 | 4.8 |
| Glass Textures | Rough Cast | Clear | Ice | Piccolo | Low iron | etc. | |
| Note: Some sizes and textures may be limited production and subject to longer lead times. For large projects, we will be pleased to discuss customized textures and sizes. | |||||||
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc. Our advantages are as below:

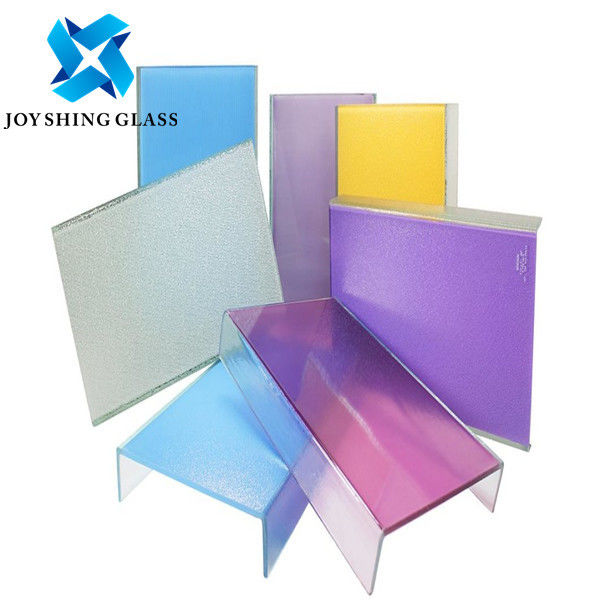

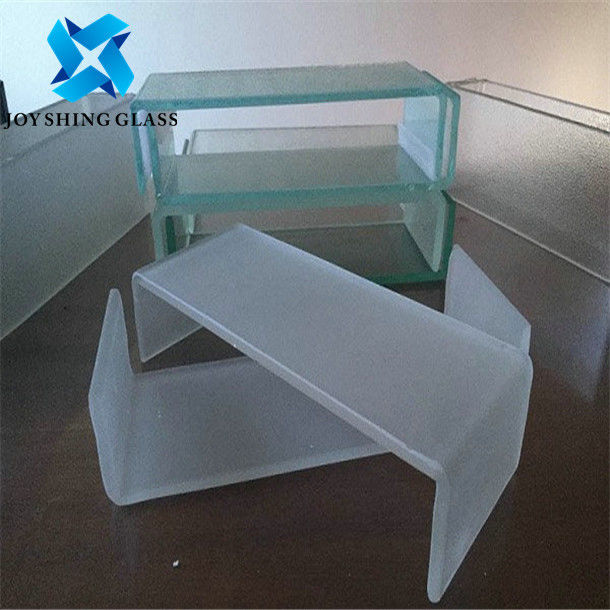

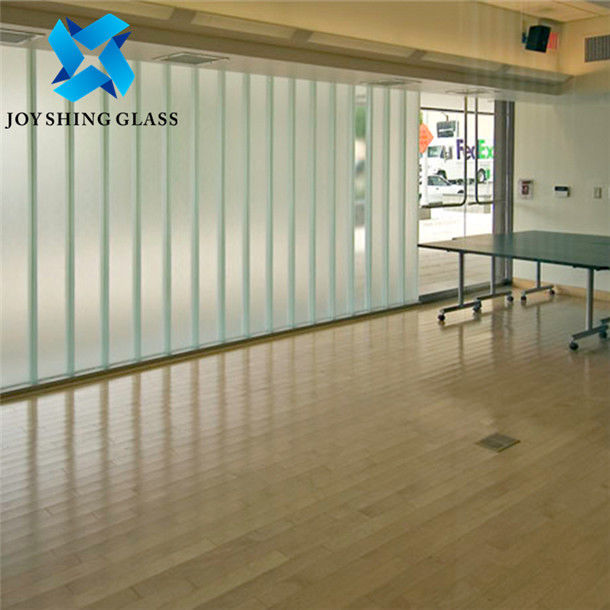

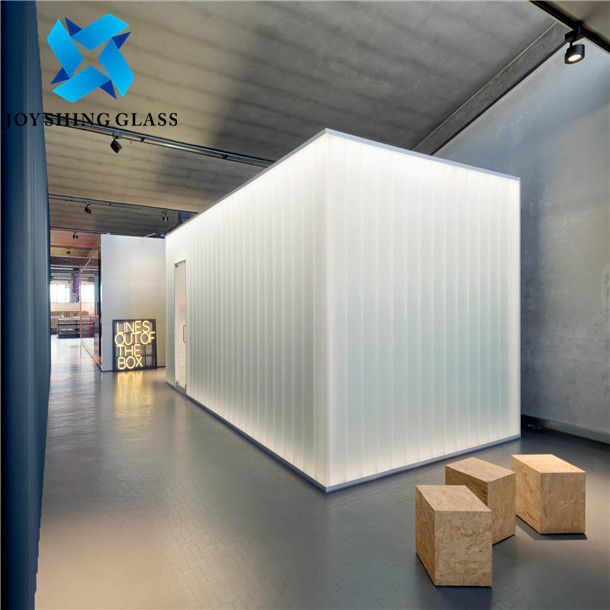

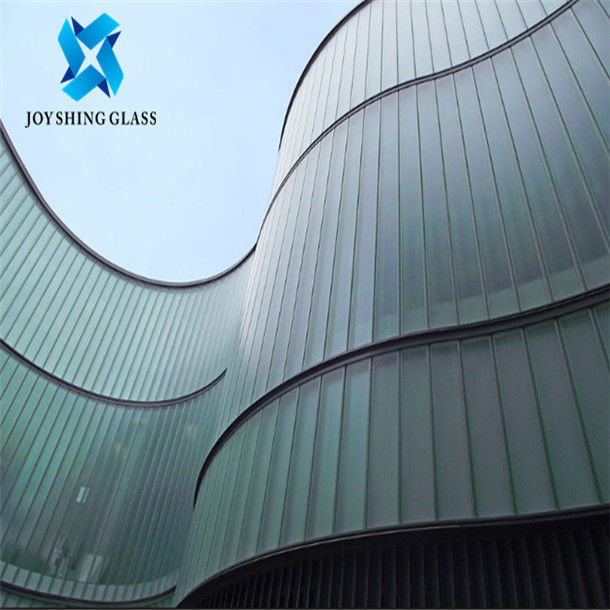

Product photo
