Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Vacuum Glass JY-IV104
Contact Us
Video
Competitive Price Customized Thickness and Size Low E Ultra Clear Vacuum Tempered Glass High Transmission
Joy Shing glass factory sells vacuum insulated glass directly. The price is favorable and the quality is good. Size, thickness, and color can be produced according to requirements; vacuum glass composite processing, such as: laminated, tempered, hollow, etc.
Specification
|
Product Name
|
Vacuum Insulated Glass
|
|
Model NO.
|
JY-IV104 |
|
Energy Transfer
|
Radiation, Convection, Conduction
|
|
Deep Processing Depth
|
Toughened Glass, Hollow Glass, Coated Glass,Laminated Glass
|
|
Color
|
Clear,ultra clear
|
|
Usage
|
Furniture, Door, Building, Window
|
|
Thickness
|
Customized
|
|
Shape
|
Flat,curved,triangle, rectangle, pentagon, etc.
|
|
Glass type
|
Tempered glass,low-e tempered glass
|
|
Sealing Technology
|
Low Temperature Metal Edge Sealing
|
|
Vacuum Degree
|
10-4PA
|
|
Thermal Insulation Performance
|
0, 47W/M2.K-0.71W/M2.K
|
|
Acoustic Performance
|
36DBS
|
|
Weight
|
15-30kgs/Sqm
|
|
Transport Package
|
Plywood Crates
|
|
Specification
|
300*300mm, 1500*2500mm
|
|
Production Capacity
|
50000piece/Year
|
|
Lead time |
15 working days |
|
Warranty |
25 years |
| Service | Glass deep processing, glass customization, online technical consultation, after-sales service, installation guidance, integrated solutions, etc. |

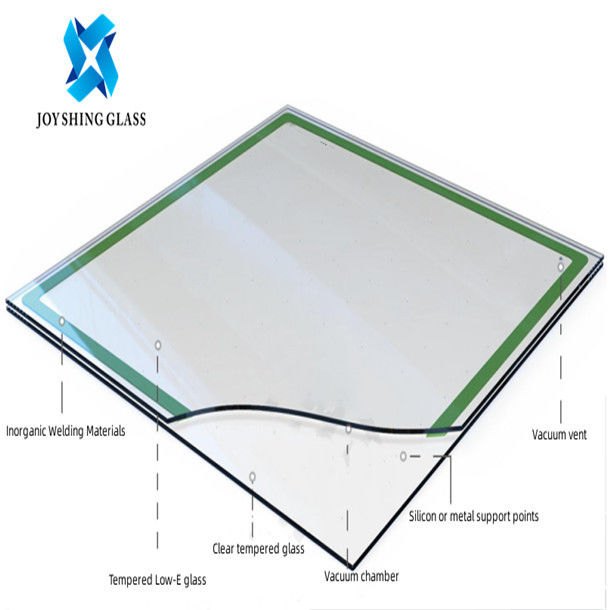

Features of vacuum insulated glass
| 1 | Minimum3+0.3V+3mm |
| 2 | Lami VIG+IGUavailable |
| 3 | No Evacuation holes design |
| 4 | 90% yield ratio |
| 5 | Fully toughened VIG |
| 6 | 15% cheaper price |
| 7 | Low temperature metal sealing |
| 8 | <0.001 glass flatness |
| 9 | Maximumsize1700*3200mm |
| 10 | No expansion and contraction |
| 11 | 0.47w/M2.Kthermal transmissic |
| 12 | 25 years super long life |
| 13 | 39Dbs high soundproof |
| 14 | 15 years worry free warranty |
| 15 | No condensation under-60℃ |

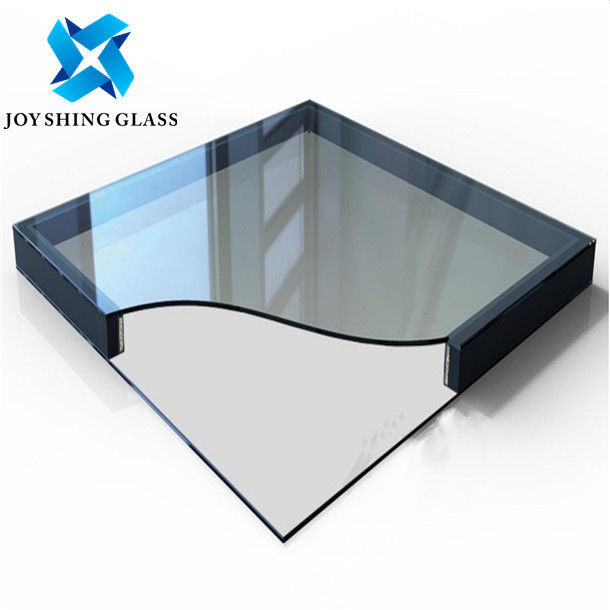

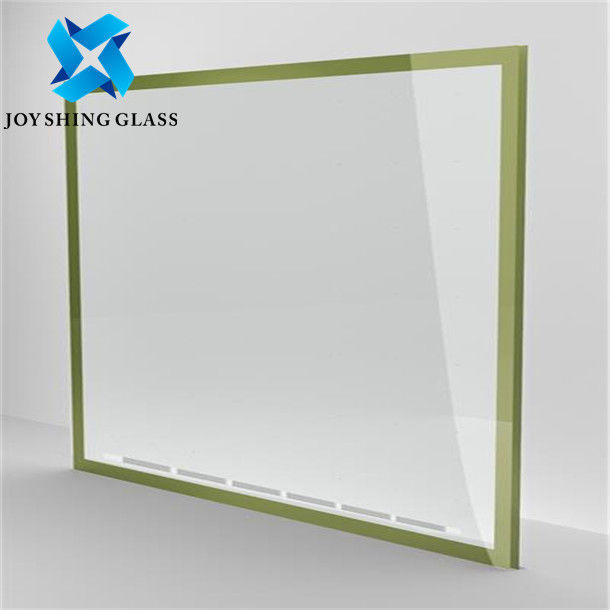

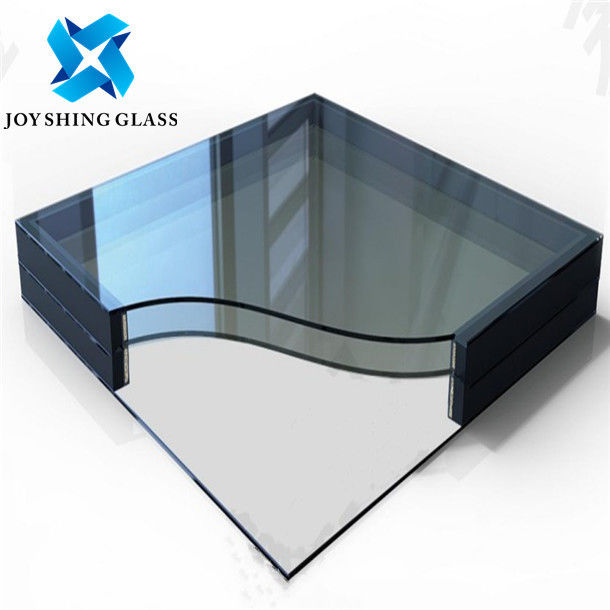

Product photo
Application fields of vacuum insulated glass
Vacuum insulated glass solves key problems in many fields with its top heat insulation, sound insulation and anti-frost performance. ) can reduce the cost of passive windows by more than 50%; direct air glass can also be applied to the glass doors of freezers and refrigerators to solve the problem of frost and condensation on the glass doors, and at the same time save money for freezers and refrigerators About 70% of the electric energy; vacuum glass is used in the vehicle field, which can reduce noise and prevent frost on the windshield; vacuum glass is used in the photovoltaic field, which can improve the service life of photovoltaic panels.
