Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Toughened Glass JY-T206
Contact Us
Heat Soaked Safety Glass 3mm-19mm Tempered Glass Shape Customized
Heat Soaked Safety Glass is also known as tempered glass. It is produced by heating regular annealed glass to a very high temperature (approximately 650℃) to its softening point, then cooling it rapidly. This process will make the glass surface under compression and the glass center under tension to increase its resistance to wind load, impact, and thermal shock 5 times more than regular annealed glass of the same thickness.
Specification
| Product name | Heat Soaked Safety Glass |
| Model | JY-T206 |
| Thickness | 3mm-19mm |
| Max Size | 3300*22000mm |
| Mini Size | 50mm*50mm |
| Color | Clear, low iron (ultra clear), bronze, grey, blue, green, low-E, reflective |
| Standardization | GB15763, AS/NZS2208:1996 , EN 12150-1, CAN/CGSB 12.1-2017, ANSI Z97.1-2015 |
| Advantage | Heat soaked safety glass is 5 times harder than ordinary float glass and has stronger impact resistance and bending resistance. |
| Tensile strength for float glass 40 MPa (N/mm2) ,tempered glass , 120-200 MPa (N/mm2) | |
| Heat soaked safety glass withstands abrupt temperature change of 220 Centigrade. | |
| The self-explosion rate of heat soaked safety glass is as low as 1‰ | |
| It is safer. Once broken, heat soaked safety glass will break into small obtuse-angle particles and will not produce sharp fragments to harm the human body. | |
| Package | Protective paper interlayer, plywood crate |
| Delivery time | 7-15 days |
Our company can produce tempered glass with different thickness, size, color and shape according to customers' requirements. Processing services such as glass edges, corners, holes, coatings, and laminations can be provided.

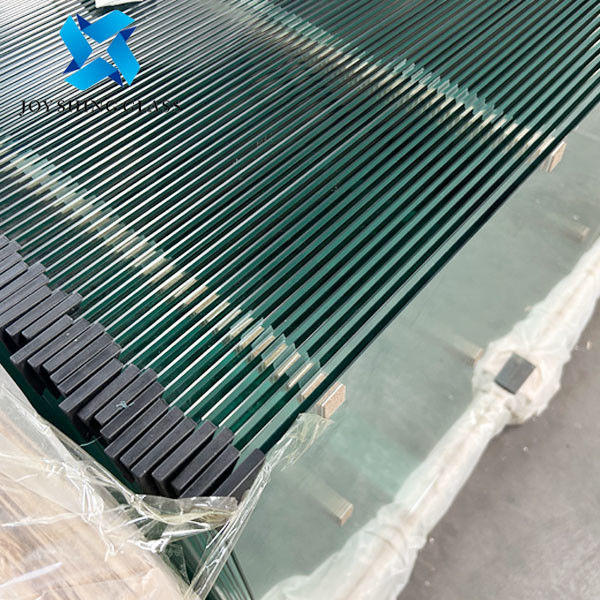

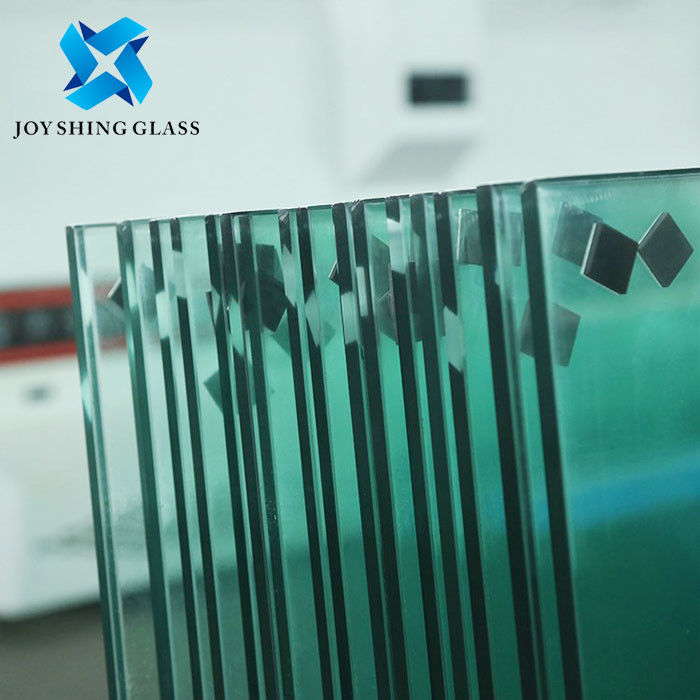

Product photo
Usage of Heat Soaked Safety Glass

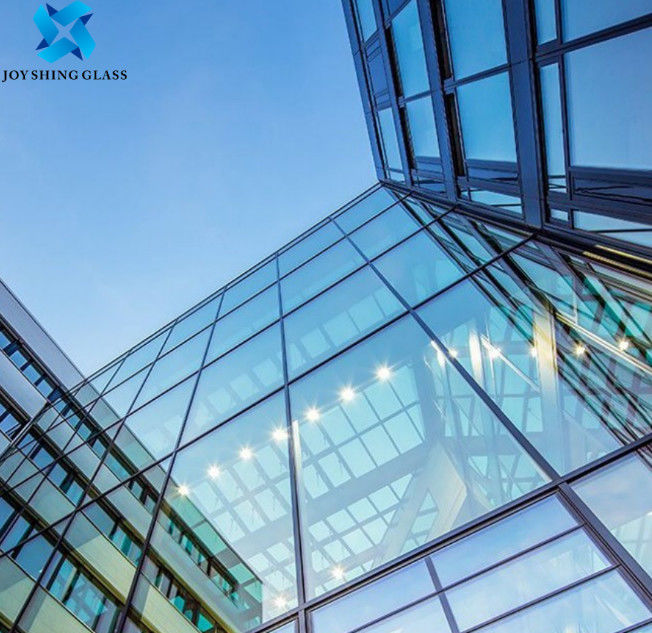

Such as glass doors, building curtain walls, elevation windows, interior partitions, furniture, as well as partitions closed to heat sources, and places that are subjected to severe cold and hot shock.
