Building / Furniture Curved Tempered Glass Sheets 2mm-19mm Hot Bent Glass
Joy Shing Glass supplies high-quality curved tempered glass sheets. The products have undergone strict quality testing and comply with CESGCCCSIIAF certification. 10 years warranty, you can buy with confidence.
The main thickness: 3/4/5/6/8/10/12/15/19/22 mm, etc., curved tempered glass sheets has the following advantages:
1. Strength: Similar to flat tempered glass, the strength of curved tempered glass sheets is 4-5 times that of ordinary glass.
2. Safety: curved tempered glass sheets have high impact resistance and bending resistance and can withstand external forces and impacts. When curved tempered glass breaks, it breaks into small obtuse-angle particles, reducing the threat to personal safety.
3. Heat resistance: curved tempered glass sheets can withstand a temperature difference of 300 degrees
4. Flexibility and design flexibility: Curved tempered glass sheets can create various curves and bends through the process of heating and cooling. This gives it good bendability and design flexibility, allowing it to adapt to a variety of architectural and product design needs. It can be made into curved windows, round ceiling or wall decorations, curved partitions, etc.
5. Durability: long service life.
6. Curved tempered glass sheets have higher bending resistance and wind pressure resistance than flat glass
Specification
Product name | Curved Tempered Glass Sheets |
Model | JY-T305 |
aw Materials | Float glass |
Thickness Choice | 3mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm |
Color | Clear,bronze, grey ,blue,dark green,F-green,ocean blue,dark blue,pink etc |
Regular Size | customer size is welcome 300*600-3400*20000mm |
Key Technology | Tempered glass |
Miuimum Radius Range | 5-6mm R>=450mm; 8mm- 10mmR>=650mm; 1 2mm- 19mmR>=1200 |
Processing flows | Glass cutting | Edging | Chamfer | Polishing | Drilling | Washing | Tempering | Printing |
Specific Usage | Door,window,curtain wall,funiture,office,home |
Edge work | flat polished edge, Pencil edging,OG edge |
Shape Style | Rectangle shape,round shape,all kinds of other shape |
Packing | Wooden case with iron belt packing for FCL sea ship, full wooden box for LCL sea or air ship. |
Delivery time
|
15 days
|
Joy Shing Glass Co., Ltd. was founded in 2013. We can produce glass thickness, size, color, coating, lamination, hole, edge and corner processing according to customer's requirements. We can provide integrated solutions, technical consultation and other services for your glass projects.
More Glass type optional

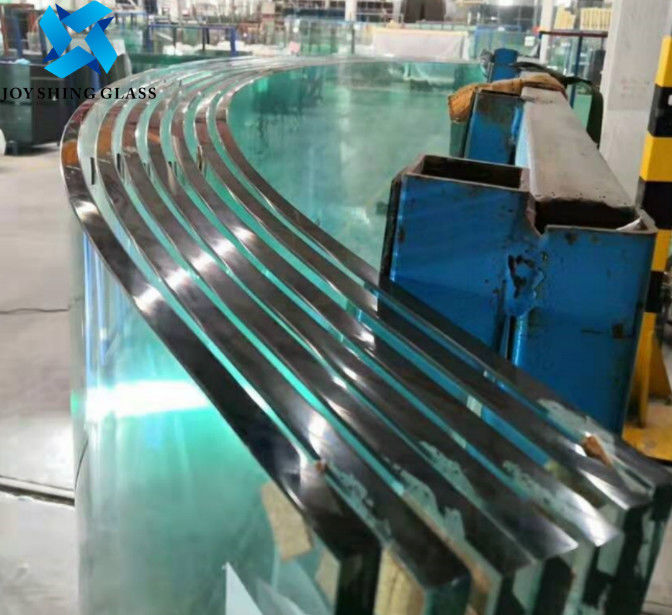

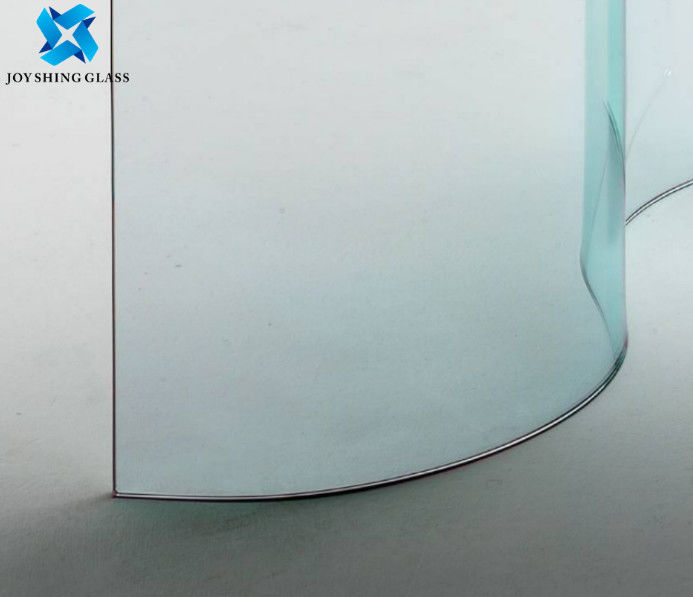

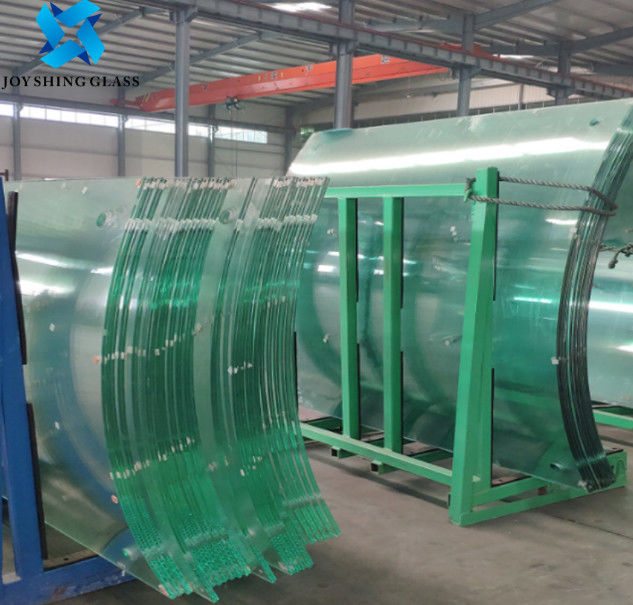

Photo of curved tempered glass sheets
Application
Curved tempered glass sheets can be made into single pieces of curved tempered glass such as ultra clear, body-colored, glazed, and coated, or into combination products such as curved tempered insulating glass, curved tempered laminated glass, and curved tempered laminated insulating glass.
1. Construction industry: Curved tempered glass sheets can be used to make curved windows, glass curtain walls, round ceilings, spiral staircases, sightseeing elevators, etc. Add modernity and artistic beauty to the building.
2. Interior decoration design: Curved tempered glass sheets can be used to make curved glass partitions, curved glass doors, glass stair handrails, etc.
3. Automotive industry: Curved tempered glass sheets can be used to make automobile side windows, rear windows, sunroofs and other components.
4. Home decoration: Curved tempered glass sheets can be used to make curved glass tabletops, glass cabinet doors, curved glass lampshades, etc. The unique shape and transparency of curved glass can bring a modern and sophisticated look to any home environment.
5. Curved tempered glass sheets can also be used in commercial products, such as display cabinets, shelves, bar tables, etc.
