Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Laminated Glass JY-L104
6.38mm 8.38mm 10.38mm 12.38mm Clear Laminated Annealed Safety Glass manufacturer per m2 price
Specification
Product Name
|
Annealed Laminated Clear glass
|
Model | JY-L104 |
Raw materials
|
Qualified clear glass, extra clear glass, tinted glass (Euro Gray,Dark Gray,Ford Blue,Ocean Blue,Dark Blue,French Green.),
|
tempered glass, heat strengthened glass. | |
Sizes
|
Max is 22,000mm x 3,300mm;
|
Min is 150mmx150mm | |
Size can be customized. | |
Film
|
EVA -- 0.25, 0.38, 0.50, 0.76, 1.0, 1.14 mm etc,
|
PVB -- 0.38, 0.76, 1.14 , 1.52, 2.28mm etc,
|
|
SGP -- 0.76, 0.89, 1.52, 2.28mm etc,
|
|
Film Color
|
Clear, Milk White, Opaque White, Gray, Green, Bronze, Blue, Red etc.
|
Glass thickness
|
3mm+3mm, 4mm+4mm, 5mm+5mm,
|
6mm+6mm, 8mm+8mm, 10mm+10mm, | |
Or multi-layers (3 layers / 4 layers or even more). | |
Glass thickness tolerance
|
T=2~6mm: ±0.2mm
|
T=8~12mm: ±0.3mm | |
Above thickness tolerance is for single pane, it will be doubled for 2-layer laminated glasses, or tripled for 3-layer laminated | |
glasses. |
Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc.

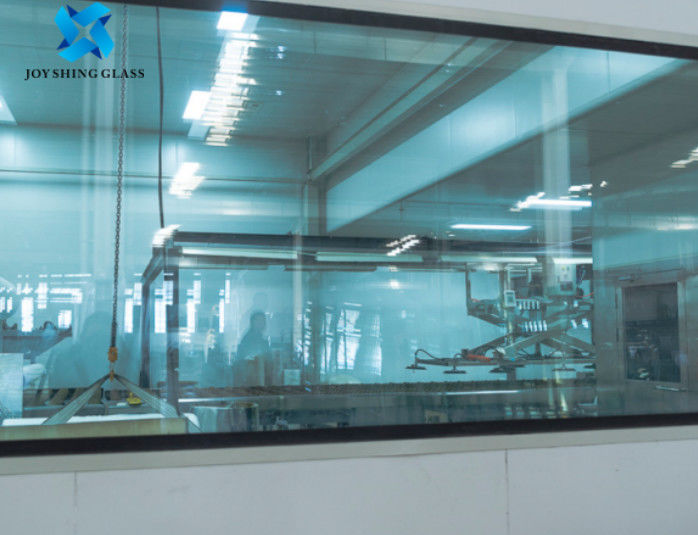

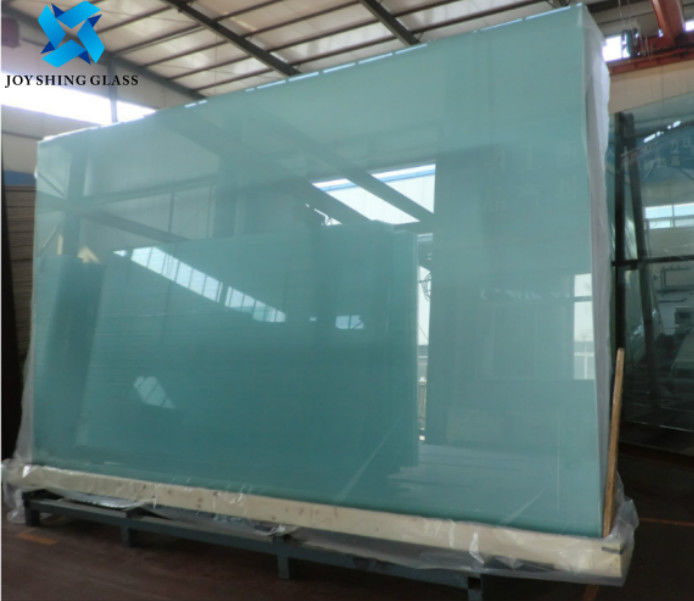

Product photo
