Laminated Insulating Glass For Partition Double Layer Window Glass
Joy Shing Glass manufacturers supply laminated insulating glass with high quality and excellent price. Glass size, thickness, color, shape, etc. can be produced according to requirements, and glass deep processing such as: holes, corners, edges, tempered, multi-layer hollow, etc. Integrated glazing solutions for your project. If you are interested in our products, you can contact us at any time to get quotations, samples, etc.

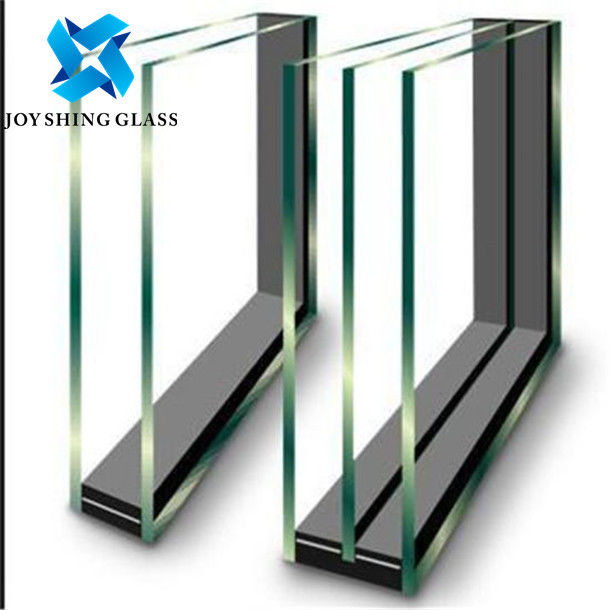

Structure of lamianted insulating glass
Example: 6+1.52PVB+6mm +12A+8mm. More specifications can be produced on request.
Specification
|
Product type
|
Double-layer laminated insulating glass
|
| Model | JY-I110 |
|
Glass color
|
Clear, ultra clear, brown, bronze, blue, green, grey etc
|
|
Glass thickness
|
Customized |
|
Structure
|
glass thickness+PVB thickness+glass thickness+ hollow layer thickness+glass thickness |
| PVB thickness | 0.38mm, 0.76mm, 1.14mm, 1.52mm, etc. |
| Hollow Layer thickness | 6A, 9A, 12A, 16A, etc. |
|
Max size
|
3300*22000mm
|
|
Min size
|
300x300mm
|
|
Shape
|
Flat, curved, irregular
|
|
Processing
|
Cutting, drilling, polishing, cutouts, safety corners etc.
|
|
Drilling
|
Normal holes or counterbore (according to customer’s requirements)
|
|
Pattern
|
Dot pattern, line pattern, and any other customized patterns
|
| Sample | Available |
| Warranty | 5 year |
| Package |
1. Fumigation-free plywood wooden box, reinforced with iron straps and wooden blocks to ensure safe transportation 2. Customized |
Features
1. Sound insulation: Laminated insulating glass is a composite product of laminated glass and insulating glass. Compared with ordinary insulating glass, it has stronger sound insulation performance. If the hollow layer is filled with argon gas, the sound insulation effect will be further improved.
2. Safety: Laminated insulating glass has higher strength and impact resistance, and is not easily broken.
3.Laminated insulating glass has better heat insulation and energy saving effect
4.Laminated insulating glass can effectively block ultraviolet radiation
5. Excellent anti-condensation performance
Applications
Laminated insulating glass is widely used in curtain walls, hotel interior, doors, windows, balustrades, screen, partition, shopping center, church, museum,etc.
Product photo

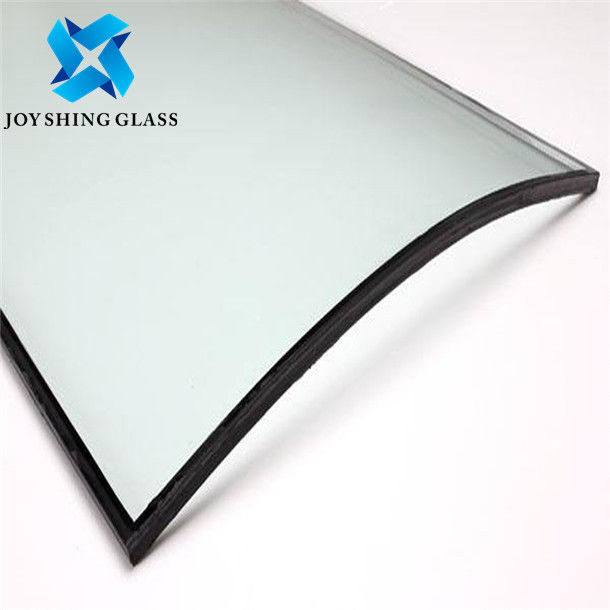

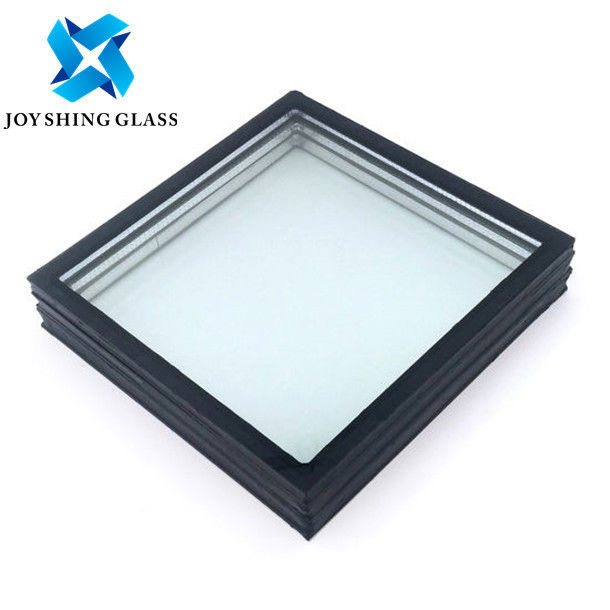

1. Laminated insulating glass

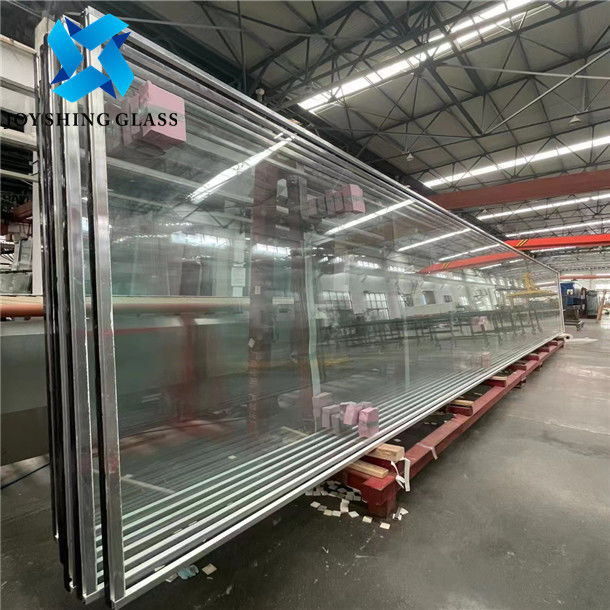

2. More insulating glass custom (shape,size,thickness,color,holes,etc)

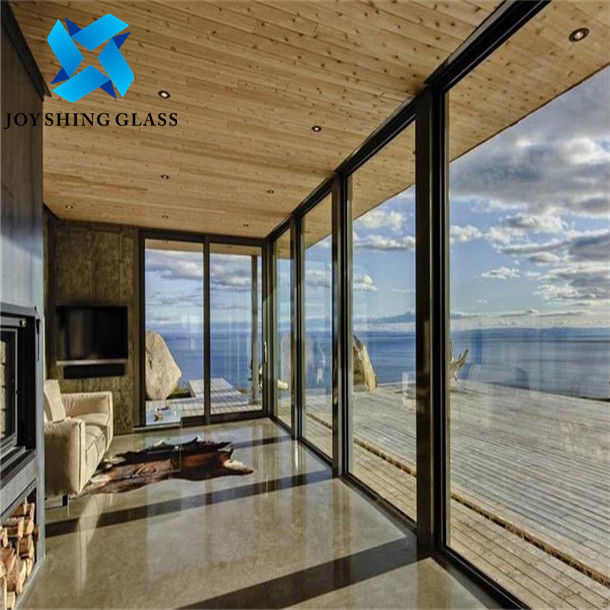

3. Applications photo of laminated insulating glass
