Place of Origin:
CHINA
Brand Name:
JOYSHING
Certification:
CE,ISO, CSi,SGCC
Model Number:
Insulating Safety Glass
Safety Insulated Glass 8mm 10mm 15mm 19mm Good Soundproofing Performance

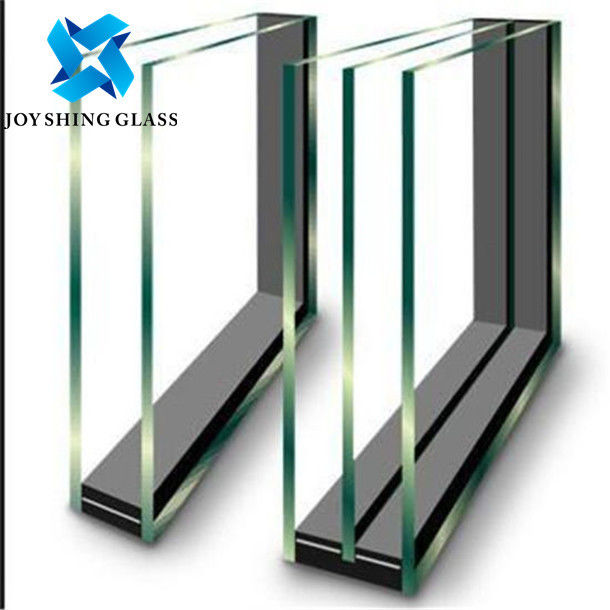

Safety Insulated Glass consists of two or more pieces of glass, a certain space is separated by an aluminum frame filled with high-efficiency molecular sieves, and the edges are sealed with high-strength sealant. It is a kind of high-efficiency sound insulation and heat insulation glass.Joy Shing Glass Co., Ltd. can produce customized insulating glass thickness, size, color, type, etc. according to customer requirements.
Specification
Product Name | Safety Insulated Glass | |||
Model | JY-I102 | |||
Glass Thickness | 4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm | |||
Color | Blue,Green, Brown, Grey, tea color etc. | |||
Advantages | 1) Heat isolation and warmthpreservation | |||
2) Distinct energy-saving effect,decreasing air-conditioning and heating costs | ||||
3) Good soundproofing performance makesroomscomfortable | ||||
4)Good anti-frosting and dew-formation properties | ||||
Stand Standard insulated glass thickness(Glass+Aluminum spacer+Glass)/mm | ||||
Item | Glass thick | Productparameter(mm) | ||
Double/triple wall insulated glass | 4mm | 4+6A+4 | 4+9A+4 | 4+12A+4 |
5mm | 5+6A+5 | 5+9A+5 | 5+12A+5 | |
6mm | 6+6A+6 | 6+9A+6 | 6+12A+6 | |
8mm | 8+6A+8 | 8+9A+8 | 8+12A+8 | |
10mm | 10+9A+10 | 10+12A+10 | 10+16A+10 | |
12mm | 12+9A+12 | 12+12A+12 | 12+16A+12 | |
Aluminum spacer thickness | 6mm, 9mm, 12mm, 16mm, 19mm, 21mm, 25mm,ect | |||
Remark | For other thickness produce according to customer'srequirements |

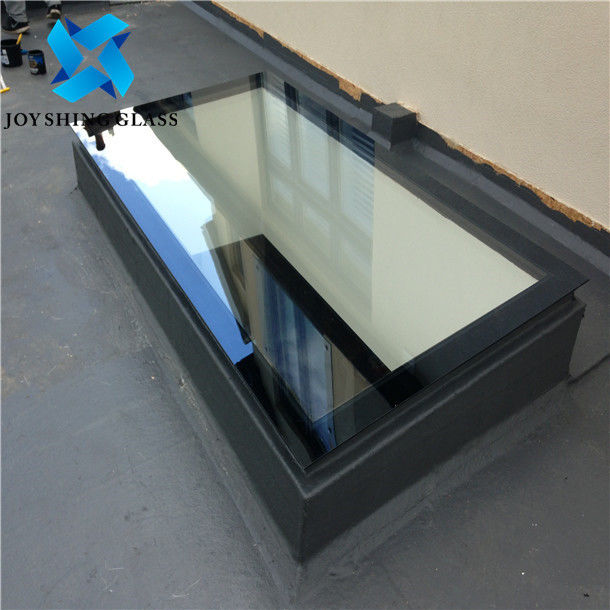

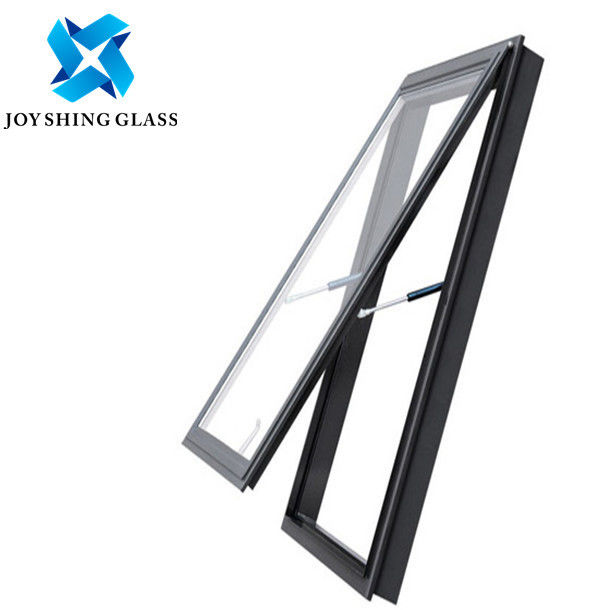

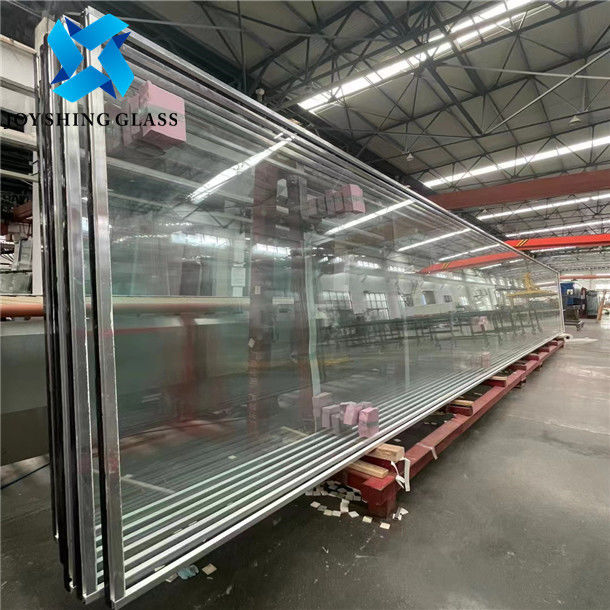

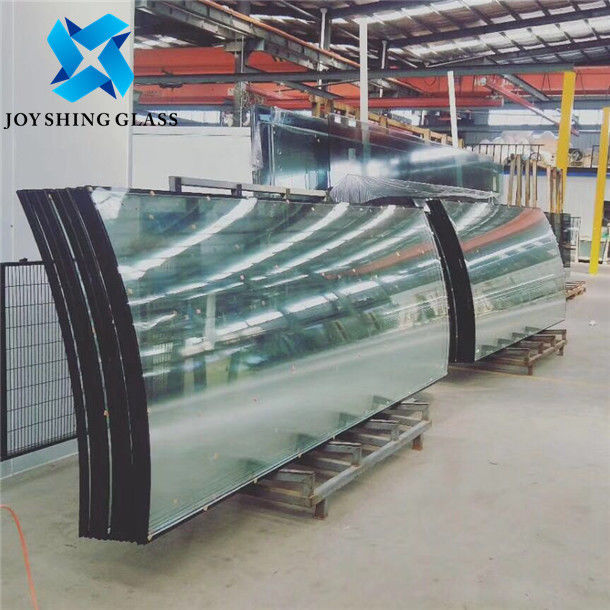

Product photo
Application of insulated safety glass
Insulated glass is mainly used in buildings that require heating, noise prevention or condensation. Widely used in residences, restaurants, hotels, office buildings, schools, hospitals, shops and other occasions that require indoor air conditioning. It can also be used in doors and windows of trains, automobiles, ships, freezers, etc.
